ELG687M100AQ1AA Information

ELG687M100AQ1AA by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ELG687M100AQ1AA

Part # Distributor Description Stock Price Buy
DISTI # 87AC5948
Newark 680 100V |Kemet ELG687M100AQ1AA RoHS: Not Compliant Min Qty: 400 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.2400
  • 500 $1.1200
  • 1,000 $0.9710
  • 2,500 $0.8700
$0.8700 / $1.2400 Buy Now
DISTI # 399-18258-ND
DigiKey CAP ALUM 680UF 20% 100V SNAP TH Min Qty: 1 Lead time: 27 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $2.5400
  • 10 $1.6860
  • 50 $1.3296
  • 400 $1.0460
  • 800 $0.9815
  • 1,200 $0.9489
  • 2,800 $0.8913
  • 5,200 $0.8567
$0.8567 / $2.5400 Buy Now
DISTI # 80-ELG687M100AQ1AA
Mouser Electronics Aluminum Electrolytic Capacitors - Snap In 100volts 680uF 20% RoHS: Compliant 0
  • 1 $2.5400
  • 10 $1.4600
  • 100 $1.4000
  • 400 $1.1200
  • 1,200 $0.9520
$0.9520 / $2.5400 Order Now
Bristol Electronics   Min Qty: 3 1200
  • 3 $2.1000
  • 11 $1.5750
  • 33 $1.3125
  • 116 $0.7875
  • 382 $0.7350
  • 1,022 $0.6930
$0.6930 / $2.1000 Buy Now
Quest Components   960
  • 1 $2.8000
  • 307 $0.9100
  • 660 $0.8750
$0.8750 / $2.8000 Buy Now
Quest Components   960
  • 1 $3.1296
  • 416 $1.2910
  • 776 $1.1736
$1.1736 / $3.1296 Buy Now
DISTI # ELG687M100AQ1AA
TTI Aluminum Electrolytic Capacitors - Snap In 100volts 680uF 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 1600 Package Multiple: 400 Container: Bulk Americas - 0
  • 1,600 $0.9700
  • 2,000 $0.9500
  • 4,000 $0.9100
  • 6,000 $0.8900
$0.8900 / $0.9700 Buy Now

US Tariff Estimator: ELG687M100AQ1AA by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ELG687M100AQ1AA
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ELG687M100AQ1AA

ELG687M100AQ1AA CAD Models

  • Part Symbol

    schematic symbol

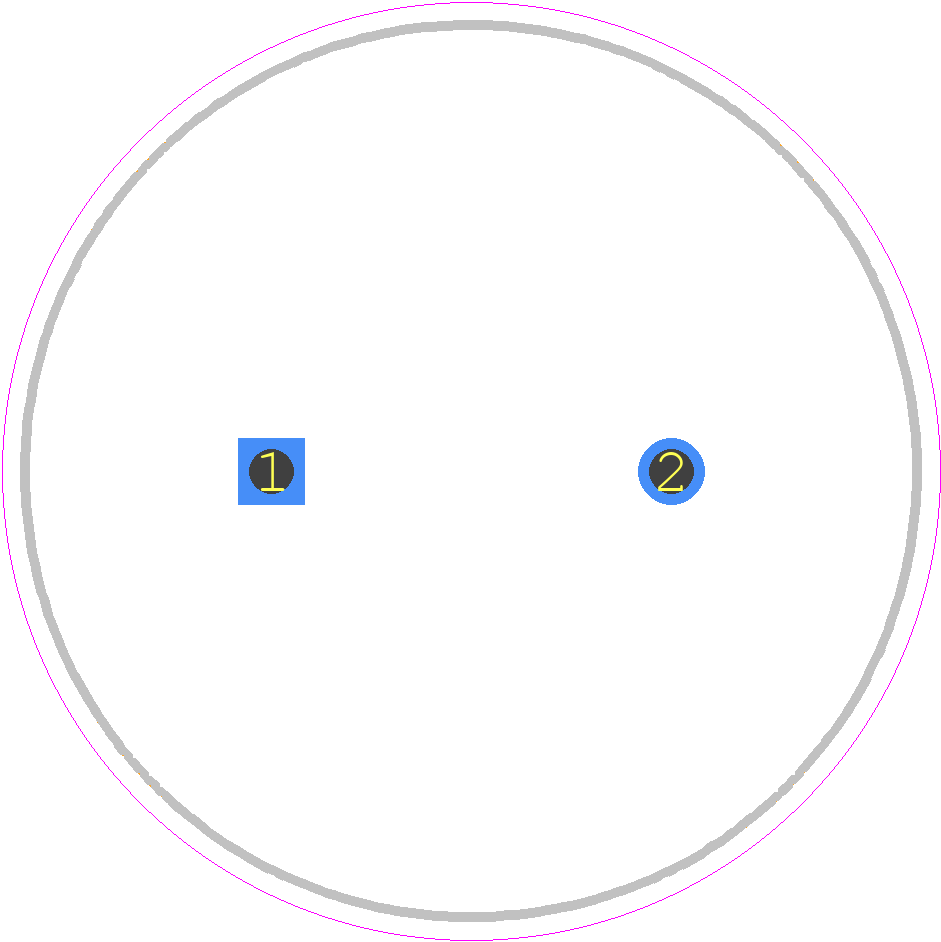

  • Footprint

    pcb footprint

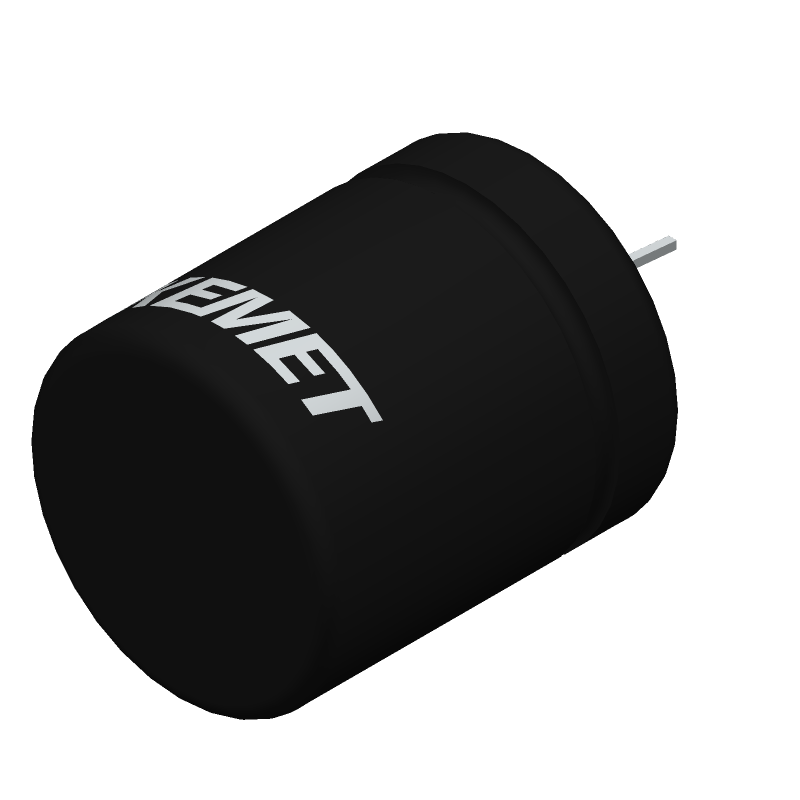

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ELG687M100AQ1AA Part Data Attributes

Parametric Data
ELG687M100AQ1AA KEMET Corporation
Buy Now Datasheet
Compare Parts:
ELG687M100AQ1AA KEMET Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount
Rohs Code Yes
Part Life Cycle Code Transferred
Package Description Can
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.40
Factory Lead Time 32 Weeks
Capacitance 680 µF
Capacitor Type Aluminum Electrolytic Capacitor
Diameter 22 Mm
Dielectric Material Aluminum (Wet)
ESR 488 MΩ
Leakage Current 1.4 Ma
Length 25 Mm
Mounting Feature Through Hole Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Shape Cylindrical Package
Package Style Snap-In
Packing Method Bulk
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 100 V
Ripple Current 1200 Ma
Surface Mount No
Tan Delta 0.25
Terminal Pitch 10 Mm
Terminal Shape Snap-In

Alternate Parts for ELG687M100AQ1AA
