ERJ3EKF26R1V by: Panasonic Electronic Components

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for ERJ3EKF26R1V by Panasonic Electronic Components

Results Overview of ERJ3EKF26R1V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Energy and Power Systems Renewable Energy

ERJ3EKF26R1V Information

ERJ3EKF26R1V by Panasonic Electronic Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERJ3EKF26R1V

Part # Distributor Description Stock Price Buy
DISTI # 90W3164
Newark Res, Thick Film, 26R1, 1%, 0.1W, 0603, Resistance:26.1Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Precision, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3EKF26R1V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 6219
  • 1 $0.0030
  • 10 $0.0030
  • 100 $0.0030
  • 1,000 $0.0030
  • 5,000 $0.0030
$0.0030 Buy Now
DISTI # ERJ3EKF26R1V
TME Resistor: thick film, 0603, 26.1Ω, 100mW, ±1%, ERJ3EKF, 100ppm/°C Min Qty: 50000 0
  • 50,000 $0.0087
$0.0087 RFQ
DISTI # ERJ3EKF26R1V
Avnet Abacus (Alt: ERJ3EKF26R1V) RoHS: Compliant Min Qty: 50000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 100mW 26.1 75V 100ppm/ Thick Film Resistor 1% 0603 Chip Resistor - Surface Mount RoHS 4850
  • 50 $0.0090
  • 500 $0.0070
  • 1,500 $0.0059
  • 5,000 $0.0052
  • 25,000 $0.0047
  • 50,000 $0.0044
$0.0044 / $0.0090 Buy Now

US Tariff Estimator: ERJ3EKF26R1V by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ERJ3EKF26R1V
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ERJ3EKF26R1V

ERJ3EKF26R1V CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

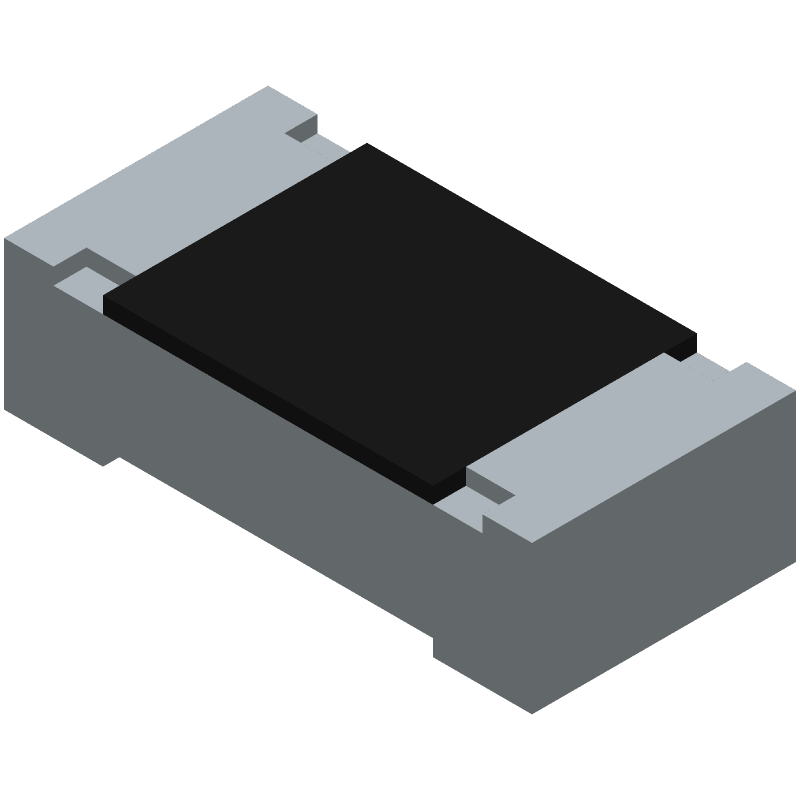

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERJ3EKF26R1V Part Data Attributes

Parametric Data
ERJ3EKF26R1V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERJ3EKF26R1V Panasonic Electronic Components Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 49 Weeks, 1 Day
Additional Feature Precision
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 Mm
Package Length 1.6 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 0.8 Mm
Packing Method Tr, Punched, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard Aec-Q200; Iec60115-8
Resistance 26.1 Ω
Resistor Type Fixed Resistor
Size Code 0603
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 75 V

Alternate Parts for ERJ3EKF26R1V

This table gives cross-reference parts and alternative options found for ERJ3EKF26R1V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ3EKF26R1V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RCA060326R11%100ET1E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, ERJ3EKF26R1V vs RCA060326R11%100ET1E3
RK73H1JTTDD26R1F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs RK73H1JTTDD26R1F
RCA060326R1FKEA Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT ERJ3EKF26R1V vs RCA060326R1FKEA
WR06W26R1FQLJ Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs WR06W26R1FQLJ
CR-03FLD--26R1 Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs CR-03FLD--26R1
AR16-26R1-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs AR16-26R1-FK
RAT0326R1FTP Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs RAT0326R1FTP
CRCW060326R1FKTC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE ERJ3EKF26R1V vs CRCW060326R1FKTC
CR-03FAD--26R1 Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF26R1V vs CR-03FAD--26R1
RCA060326R1FKEY00 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 26.1ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT ERJ3EKF26R1V vs RCA060326R1FKEY00
