Diodes / Rectifier Diodes / FERD40H100STS
Datasheets
FERD40H100STS by:
STMicroelectronics

Rectifier Diode, 1 Phase, 1 Element, 100V V(RRM), Silicon, TO-220AB

Part Details for FERD40H100STS by STMicroelectronics

Results Overview of FERD40H100STS by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

FERD40H100STS Information

FERD40H100STS by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for FERD40H100STS

Part # Distributor Description Stock Price Buy
DISTI # 3132437
Farnell RECTIFIER, SINGLE, 40A, 100V, TO-220AB COO: China RoHS: Compliant Min Qty: 1 Lead time: 17 Weeks, 1 Days Container: Each 1561
  • 1 $1.1879
  • 10 $0.6616
  • 100 $0.6375
  • 500 $0.5786
  • 1,000 $0.5478
  • 5,000 $0.5263
$0.5263 / $1.1879 Buy Now
DISTI # 497-16954-ND
DigiKey DIODE FERD 100V 40A TO220AB Min Qty: 1 Lead time: 15 Weeks Container: Tube 1950
In Stock
  • 1 $1.0800
  • 50 $0.5850
  • 100 $0.5542
  • 500 $0.5203
  • 1,000 $0.5154
  • 2,000 $0.4830
  • 5,000 $0.4744
$0.4744 / $1.0800 Buy Now
DISTI # FERD40H100STS
Avnet Americas Diode Rectifying 100V 40A 3-Pin TO-220AB Tube - Bulk (Alt: FERD40H100STS) COO: Italy RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.5421
  • 4,000 $0.5128
  • 6,000 $0.4993
  • 10,000 $0.4865
  • 20,000 $0.4744
$0.4744 / $0.5421 Buy Now
DISTI # FERD40H100STS
Avnet Americas Diode Rectifying 100V 40A 3-Pin TO-220AB Tube - Bulk (Alt: FERD40H100STS) COO: Italy RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.5421
  • 4,000 $0.5128
  • 6,000 $0.4993
  • 10,000 $0.4865
  • 20,000 $0.4744
$0.4744 / $0.5421 Buy Now
DISTI # 511-FERD40H100STS
Mouser Electronics Rectifiers RECTIFIER RoHS: Compliant 4452
  • 1 $1.0700
  • 10 $0.5960
  • 100 $0.5740
  • 500 $0.5210
  • 1,000 $0.4930
  • 2,000 $0.4920
  • 5,000 $0.4740
$0.4740 / $1.0700 Buy Now
STMicroelectronics 100 V, 40 A Field-Effect Rectifier Diode (FERD) COO: Italy RoHS: Compliant Min Qty: 1 4452
  • 1 $1.0500
  • 10 $0.5800
  • 100 $0.5600
  • 500 $0.5100
$0.5100 / $1.0500 Buy Now
Future Electronics FERD40H100 Series 100 V 40 A Field Effect Rectifier Diode - TO-220AB RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks Container: Tube 0
Tube
  • 2,000 $0.4650
$0.4650 Buy Now
DISTI # FERD40H100STS
TME Diode: rectifying, THT, 100V, 40A, tube, Ifsm: 440A, TO220AB Min Qty: 1 36
  • 1 $1.1200
  • 3 $1.0000
  • 10 $0.9400
$0.9400 / $1.1200 Buy Now
DISTI # FERD40H100STS
Avnet Silica Diode Rectifying 100V 40A 3Pin TO220AB Tube (Alt: FERD40H100STS) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days Silica - 4400
Buy Now
Chip Stock FERD40H100Series100V40AFieldEffectRectifierDiode-TO-220AB 17160
RFQ
DISTI # FERD40H100STS
EBV Elektronik Diode Rectifying 100V 40A 3Pin TO220AB Tube (Alt: FERD40H100STS) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days EBV - 750
Buy Now

Part Details for FERD40H100STS

FERD40H100STS CAD Models

  • Part Symbol

    schematic symbol

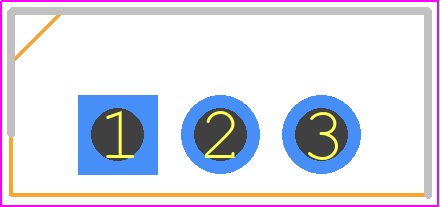

  • Footprint

    pcb footprint

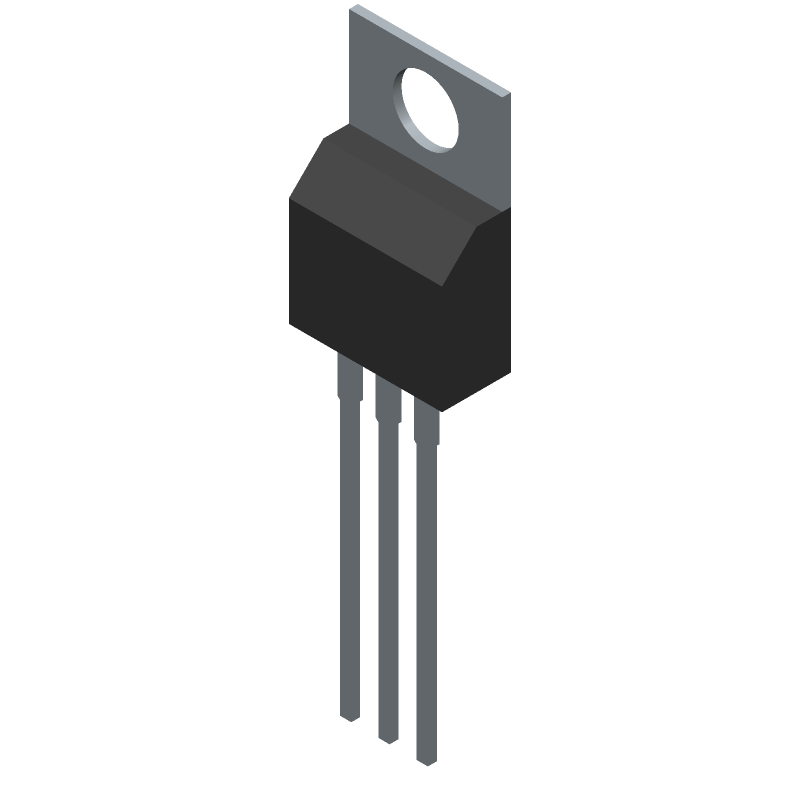

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FERD40H100STS Part Data Attributes

Parametric Data
FERD40H100STS STMicroelectronics
Buy Now Datasheet
Compare Parts:
FERD40H100STS STMicroelectronics Rectifier Diode, 1 Phase, 1 Element, 100V V(RRM), Silicon, TO-220AB
Rohs Code Yes
Part Life Cycle Code Active
Manufacturer Package Code TO-220AB
Reach Compliance Code Not Compliant
ECCN Code EAR99
Factory Lead Time 15 Weeks
Application Efficiency
Case Connection Cathode
Configuration Single
Diode Element Material Silicon
Diode Type Rectifier Diode
Forward Voltage-Max (VF) 0.675 V
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Non-rep Pk Forward Current-Max 440 A
Number of Elements 1
Number of Phases 1
Number of Terminals 3
Operating Temperature-Max 175 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Flange Mount
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 190 µA
Surface Mount No
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Through-Hole
Terminal Position Single

Alternate Parts for FERD40H100STS

This table gives cross-reference parts and alternative options found for FERD40H100STS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FERD40H100STS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
FERD20H100SFP STMicroelectronics $0.7192 Rectifier Diode, 1 Phase, 1 Element, 20A, 100V V(RRM), Silicon, TO-220AB FERD40H100STS vs FERD20H100SFP
Part Number Manufacturer Composite Price Description Compare
SDB2080PR Kodenshi Corporation Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 80V V(RRM), Silicon, TO-220AB FERD40H100STS vs SDB2080PR
MBRF1040CTL Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 40V V(RRM), Silicon, TO-220AB FERD40H100STS vs MBRF1040CTL
ST3045C Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 45V V(RRM), Silicon, TO-220AB FERD40H100STS vs ST3045C
YA878C15R Fuji Electric Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 150V V(RRM), Silicon, TO-220AB FERD40H100STS vs YA878C15R
MBRF3040CT Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 40V V(RRM), Silicon, TO-220AB FERD40H100STS vs MBRF3040CT
DSTF30120CR Littelfuse Inc Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 120V V(RRM), Silicon, TO-220AB FERD40H100STS vs DSTF30120CR
MBRF40100CTR Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-220AB FERD40H100STS vs MBRF40100CTR
YA878C20R Fuji Electric Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 200V V(RRM), Silicon, TO-220AB FERD40H100STS vs YA878C20R
YA878C12R Fuji Electric Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 120V V(RRM), Silicon, TO-220AB FERD40H100STS vs YA878C12R
STF1080C Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 2 Element, 80V V(RRM), Silicon, TO-220AB FERD40H100STS vs STF1080C
equivalents icon

FERD40H100STS Related Parts

FERD40H100STS Frequently Asked Questions (FAQ)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.

  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's current handling capability at high temperatures.

  • Exceeding the maximum Tj rating can lead to reduced lifespan, increased thermal resistance, and potentially catastrophic failure. Always ensure the device operates within the recommended temperature range.

  • Yes, but be aware of the device's switching losses and ensure proper snubber circuits are implemented to minimize electromagnetic interference (EMI) and voltage spikes.

  • Implement proper EOS and ESD protection measures, such as TVS diodes, resistors, and capacitors, and follow proper handling and storage procedures to prevent damage.
