FH12-50(24)SA-1SH(55) by: Hirose Electric Co Ltd

Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

Part Details for FH12-50(24)SA-1SH(55) by Hirose Electric Co Ltd

Results Overview of FH12-50(24)SA-1SH(55) by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FH12-50(24)SA-1SH(55) Information

FH12-50(24)SA-1SH(55) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for FH12-50(24)SA-1SH(55)

Part # Distributor Description Stock Price Buy
DISTI # FH12-50(24)SA-1SH(55)-ND
DigiKey CONN FFC FPC BOTTOM 50POS 1MM RA Min Qty: 2000 Lead time: 12 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,000 $0.8918
$0.8918 Buy Now
DISTI # FH12-50(24)SA-1SH(55)
Avnet Americas - Trays (Alt: FH12-50(24)SA-1SH(55)) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Tray 0
  • 2,000 $0.9714
  • 10,000 $0.8313
  • 20,000 $0.8271
  • 40,000 $0.8229
  • 80,000 $0.8187
$0.8187 / $0.9714 Buy Now
DISTI # 798-FH125024SA1SH55
Mouser Electronics FFC & FPC Connectors 24P F SCKT HORIZ SMT ECCENTRIC TYPE RoHS: Compliant 0
  • 2,000 $0.8770
$0.8770 Order Now
DISTI # HIRFH12-50(24)SA-1SH(55)
Heilind Electronics FFC FPC Connectors Horizontal Mounting Angle Beige 1 mm - Pitch 24 Positions Americas - 0 in Stock
  • 2,000 $0.9856
  • 8,000 $0.9444
$0.9444 / $0.9856 Buy Now
Onlinecomponents.com Connector FFC/FPC Socket 24 Position 1mm Solder Right Angle Surface Mount Emboss T/R COO: Japan RoHS: Compliant 0
  • 500 $1.7680
  • 1,000 $1.0880
  • 1,500 $0.8610
  • 2,000 $0.8440
$0.8440 / $1.7680 Buy Now
Bristol Electronics   Min Qty: 3 1428
  • 3 $2.1000
  • 11 $1.5750
  • 33 $1.3125
  • 116 $0.7875
  • 382 $0.7350
  • 1,022 $0.6930
$0.6930 / $2.1000 Buy Now
Quest Components   1142
  • 1 $2.8000
  • 307 $0.9100
  • 660 $0.8750
$0.8750 / $2.8000 Buy Now
Quest Components   1142
  • 1 $3.3600
  • 387 $1.3860
  • 723 $1.2600
$1.2600 / $3.3600 Buy Now
DISTI # 000000000003972661
Sager FFC & FPC Connectors 24P F SCKT HORIZ SMT ECCENTRIC TYPE Min Qty: 2000 0
  • 2,000 $1.1300
  • 10,000 $1.0500
  • 20,000 $0.9714
  • 50,000 $0.9067
  • 100,000 $0.8500
$0.8500 / $1.1300 Buy Now

Part Details for FH12-50(24)SA-1SH(55)

FH12-50(24)SA-1SH(55) CAD Models

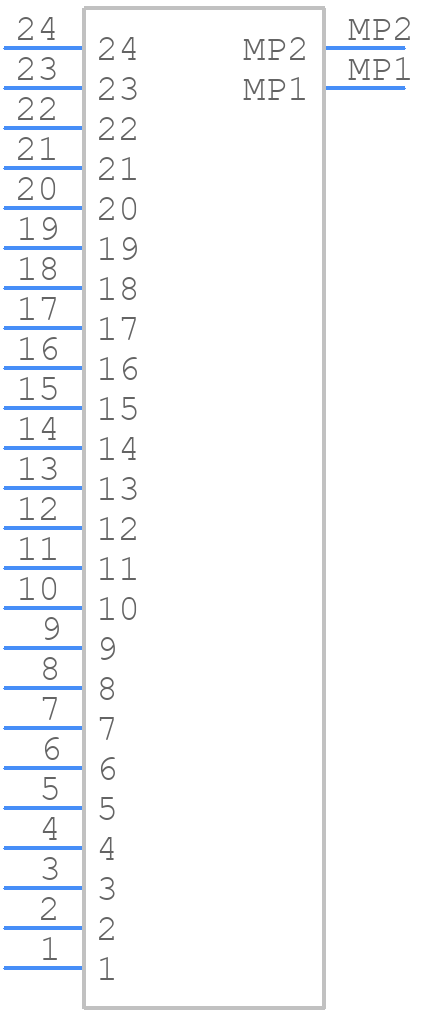

  • Part Symbol

    schematic symbol

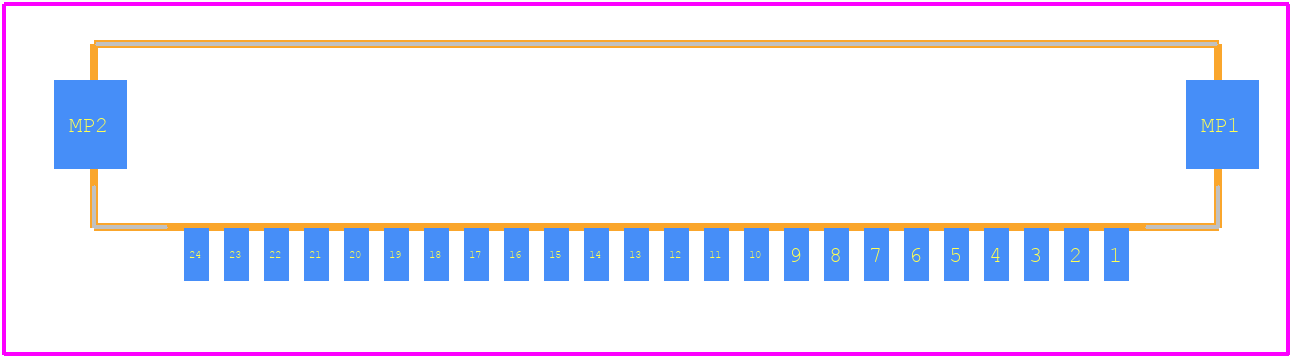

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FH12-50(24)SA-1SH(55) Part Data Attributes

Parametric Data
FH12-50(24)SA-1SH(55) Hirose Electric Co Ltd
Buy Now Datasheet
Compare Parts:
FH12-50(24)SA-1SH(55) Hirose Electric Co Ltd Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
Body Breadth 0.079 Inch
Body Depth 0.252 Inch
Body Length 1.146 Inch
Connector Type Ffc/Fpc Connector
Contact Finish Mating Not Specified
Contact Finish Termination Gold (Au) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Not Specified
Contact Pattern Rectangular
Contact Resistance 50 MΩ
Contact Style Bellowed Type
DIN Conformance No
Dielectric Withstanding Voltage 150vac V
Durability 20 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max Zif N
Insulation Resistance 500000000 Ω
Insulator Color Brown
Insulator Material Polyphenylene Sulfide
JESD-609 Code e4
MIL Conformance No
Mating Contact Pitch 0.039 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Right Angle
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Option General Purpose
PCB Contact Pattern Rectangular
Rated Current (Signal) 0.5 A
Reference Standard Ul
Terminal Pitch 1 Mm
Termination Type Surface Mount
Total Number of Contacts 24
UL Flammability Code 94V-0
Withdrawl Force-Min Zif N

Alternate Parts for FH12-50(24)SA-1SH(55)

This table gives cross-reference parts and alternative options found for FH12-50(24)SA-1SH(55). The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FH12-50(24)SA-1SH(55), but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
FH12-50(24)SA-1SH Hirose Electric Co Ltd Check for Price Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator FH12-50(24)SA-1SH(55) vs FH12-50(24)SA-1SH
Part Number Manufacturer Composite Price Description Compare
5019512430 Molex Check for Price FFC/FPC Connector, FH12-50(24)SA-1SH(55) vs 5019512430
equivalents icon

FH12-50(24)SA-1SH(55) Related Parts

FH12-50(24)SA-1SH(55) Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).

  • Yes, the FH12-50(24)SA-1SH(55) is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2 kHz.

  • Yes, the connector is sealed to IP67 standards, making it suitable for outdoor use and protecting it from dust and water ingress.

  • The operating temperature range for the FH12-50(24)SA-1SH(55) is -40°C to 105°C (-40°F to 221°F).

  • The FH12-50(24)SA-1SH(55) is rated for a maximum current of 3 A per contact. If you need higher current ratings, consider using a different connector model.
