FIDO1100PQF208IR1 Information
FIDO1100PQF208IR1 by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for FIDO1100PQF208IR1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-FIDO1100PQF208IR1-ND
|
DigiKey | IC MCU 32BIT 32KB RREM 208PQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
96 In Stock |
|
Buy Now | |
|
|
Rochester Electronics | Microcontroller, 32-Bit, RREM, CPU32 CPU, 66MHz, CMOS, PQFP208 RoHS: Compliant Status: Active Min Qty: 1 | 1026 |
|
$18.3800 / $22.9700 | Buy Now |
|
DISTI #
FIDO1100PQF208I
|
Richardson RFPD | MICROCONTROLLER IC RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
US Tariff Estimator: FIDO1100PQF208IR1 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for FIDO1100PQF208IR1
FIDO1100PQF208IR1 CAD Models
-

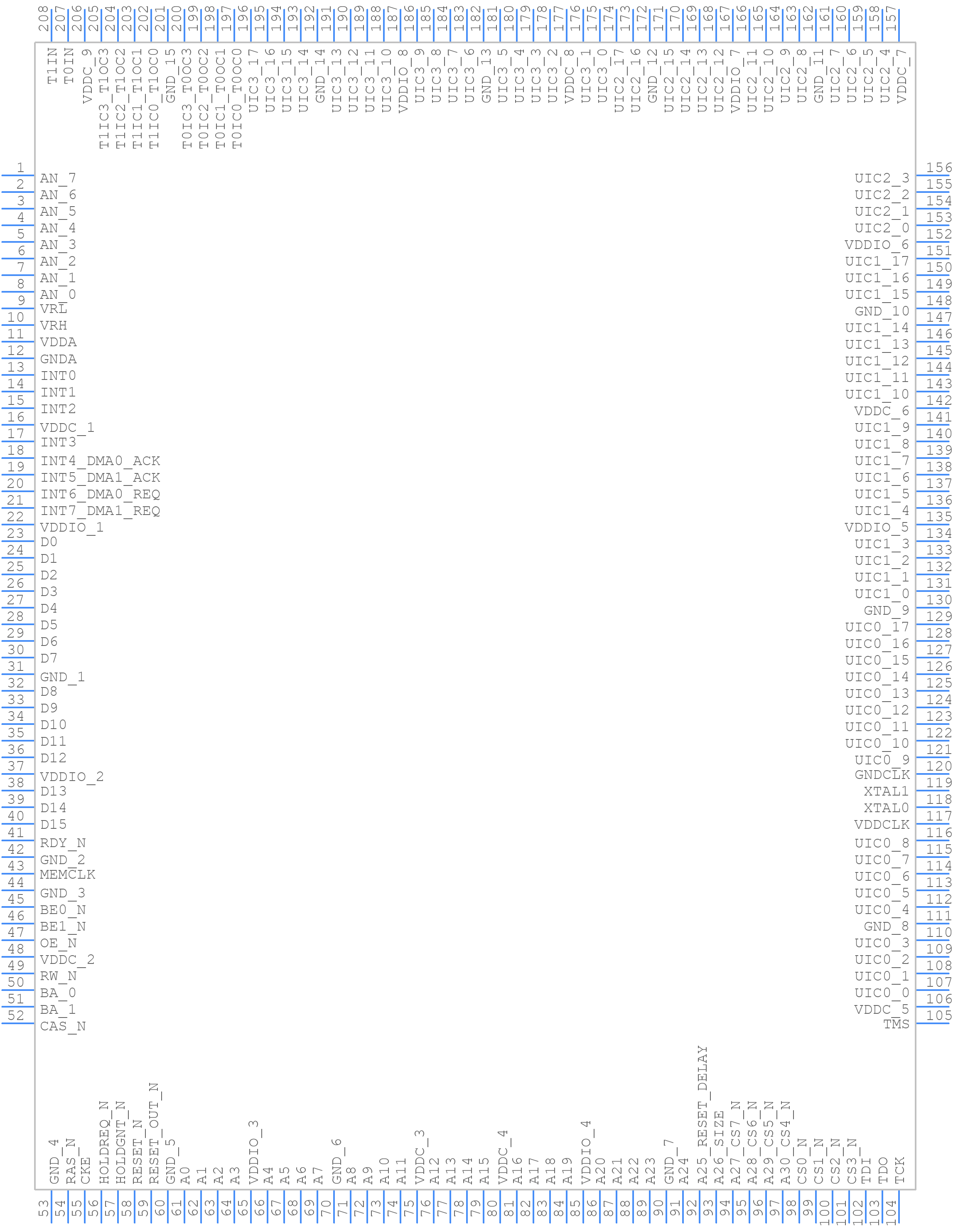

Part Symbol
-

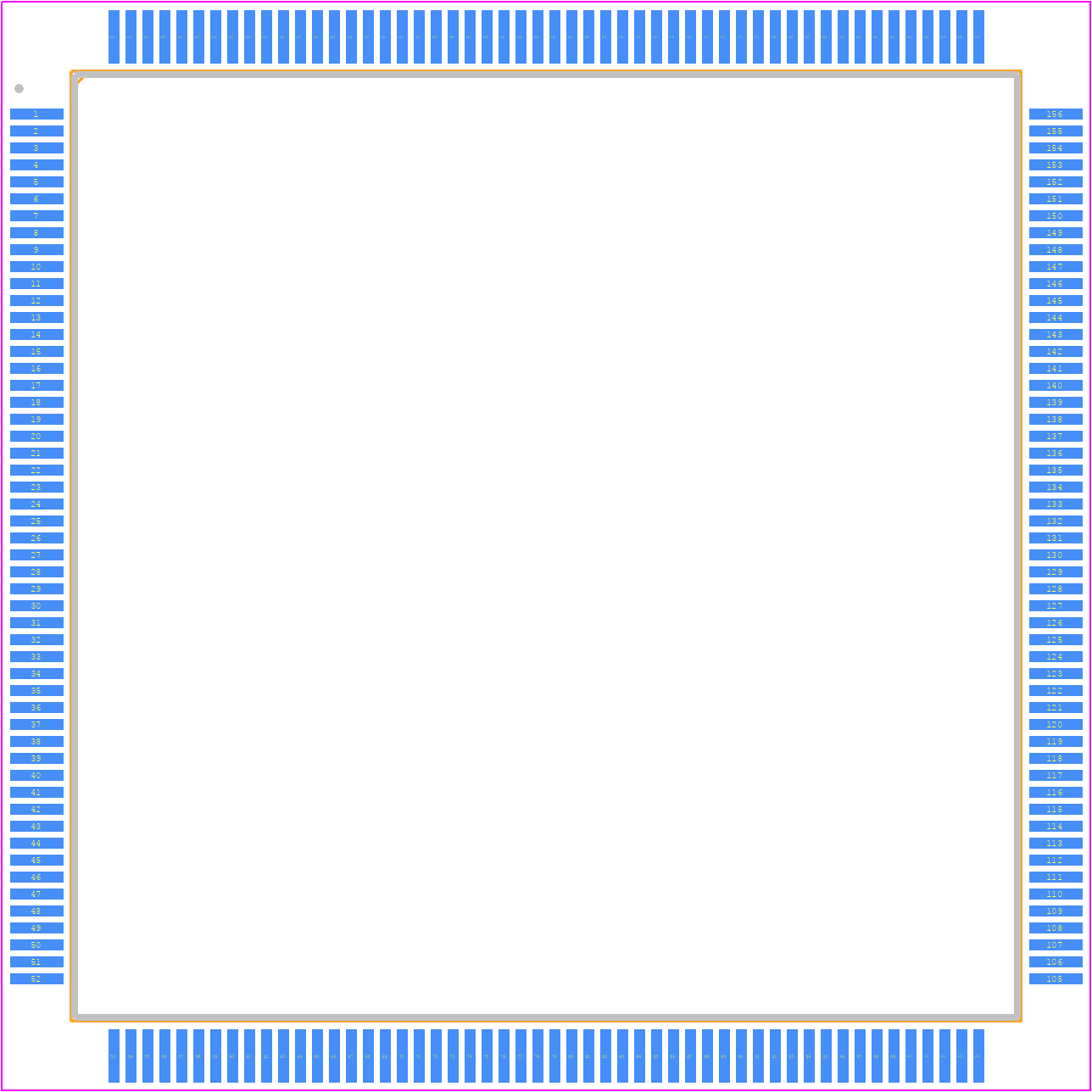

Footprint
-

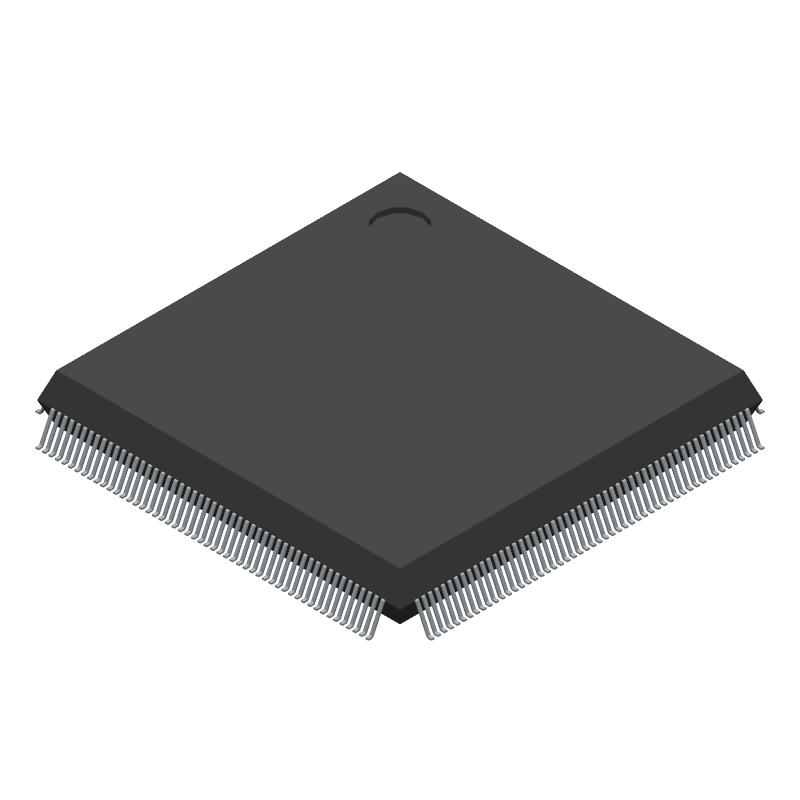

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
FIDO1100PQF208IR1 Part Data Attributes
|
|
FIDO1100PQF208IR1
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
FIDO1100PQF208IR1
Analog Devices Inc
Microcontroller, 32-Bit, RREM, CPU32 CPU, 66MHz, CMOS, PQFP208
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Fqfp, Qfp208,1.2sq,20 | |
| Pin Count | 208 | |
| Manufacturer Package Code | 208 PQFP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 5A991.B | |
| HTS Code | 8542.39.00.01 | |
| Has ADC | Yes | |
| Address Bus Width | 31 | |
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cpu32 | |
| Clock Frequency-Max | 66 Mhz | |
| DAC Channels | No | |
| DMA Channels | Yes | |
| External Data Bus Width | 16 | |
| Format | Fixed Point | |
| Integrated Cache | No | |
| JESD-30 Code | S-PQFP-G208 | |
| Length | 28 Mm | |
| Low Power Mode | Yes | |
| Number of DMA Channels | 2 | |
| Number of I/O Lines | 52 | |
| Number of Terminals | 208 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 32 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | No | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | FQFP | |
| Package Equivalence Code | QFP208,1.2SQ,20 | |
| Package Shape | Square | |
| Package Style | Flatpack, Fine Pitch | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| RAM (bytes) | 196608 | |
| RAM (words) | 6144 | |
| ROM (words) | 262144 | |
| ROM Programmability | Rrem | |
| Seated Height-Max | 4.07 Mm | |
| Speed | 66 Mhz | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Width | 28 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller |
