FOLC-120-02-S-Q-LC Information
FOLC-120-02-S-Q-LC by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000N | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-PDIP -40 to 85 | |
| 74AC11004DW | Texas Instruments | Hex Inverters 20-SOIC -40 to 85 | |
| 74AC11074D | Texas Instruments | Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 85 |
Price & Stock for FOLC-120-02-S-Q-LC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48M6782
|
Newark | ".050" Fourray Quad Row Tiger Eye Socket Strip" |Samtec FOLC-120-02-S-Q-LC RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$19.3000 / $29.6800 | Buy Now |
|
DISTI #
3937-FOLC-120-02-S-Q-LC-ND
|
DigiKey | CONN RCPT 80POS 0.05 GOLD SMD Min Qty: 1 Lead time: 4 Weeks Container: Tube MARKETPLACE PRODUCT |
181 In Stock |
|
$171.9800 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC-ND
|
DigiKey | CONN RCPT 80POS 0.05 GOLD SMD Min Qty: 1 Lead time: 4 Weeks Container: Tube |
12 In Stock |
|
$25.0920 / $33.3200 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC
|
Avnet Americas | Conn Socket Strip SKT 80 POS 0.64mm Solder ST SMD Tube - Rail/Tube (Alt: FOLC-120-02-S-Q-LC) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Tube | 0 |
|
$7.8671 / $30.8994 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC
|
Avnet Americas | - Rail/Tube (Alt: FOLC-120-02-S-Q-LC) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube | 0 |
|
$8.0638 / $30.8994 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC
|
Avnet Americas | - Tape and Reel (Alt: FOLC-120-02-S-Q-LC) COO: Malaysia RoHS: Compliant Min Qty: 400 Package Multiple: 400 Container: Tape & Reel | 0 |
|
$8.1825 / $18.6480 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC
|
Avnet Americas | - Rail/Tube (Alt: FOLC-120-02-S-Q-LC) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube | 0 |
|
$12.6144 / $31.1738 | Buy Now |
|
DISTI #
FOLC-120-02-S-Q-LC
|
Avnet Americas | - Rail/Tube (Alt: FOLC-120-02-S-Q-LC) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube | 0 |
|
$12.5472 / $31.0464 | Buy Now |
|
DISTI #
200-FOLC12002SQLC
|
Mouser Electronics | Headers & Wire Housings .050 FOURRAY Quad Row Tiger Eye Socket Strip RoHS: Compliant | 0 |
|
$7.9700 / $31.5300 | Order Now |
|
|
Onlinecomponents.com | .050" FOURRAY™ Quad Row Tiger Eye™ Socket Strip COO: Malaysia RoHS: Compliant | 0 |
|
$18.4800 / $36.0500 | Buy Now |
US Tariff Estimator: FOLC-120-02-S-Q-LC by Samtec Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for FOLC-120-02-S-Q-LC
FOLC-120-02-S-Q-LC CAD Models
-

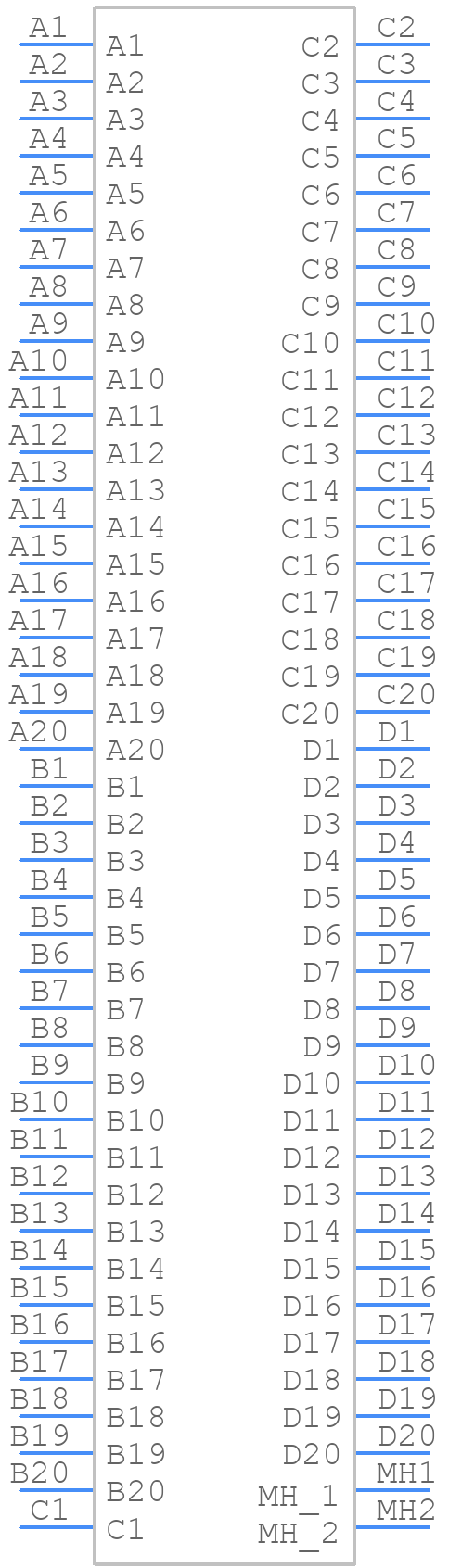

Part Symbol
-

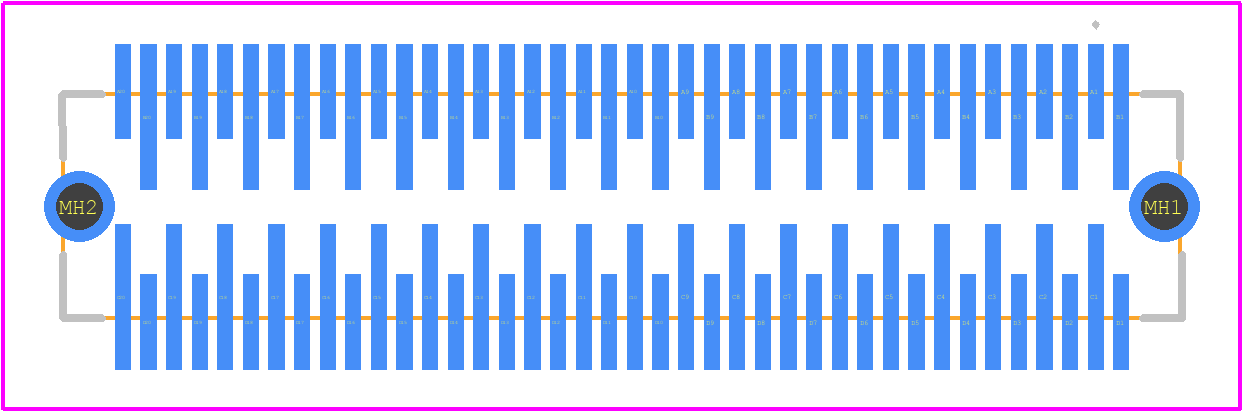

Footprint
-

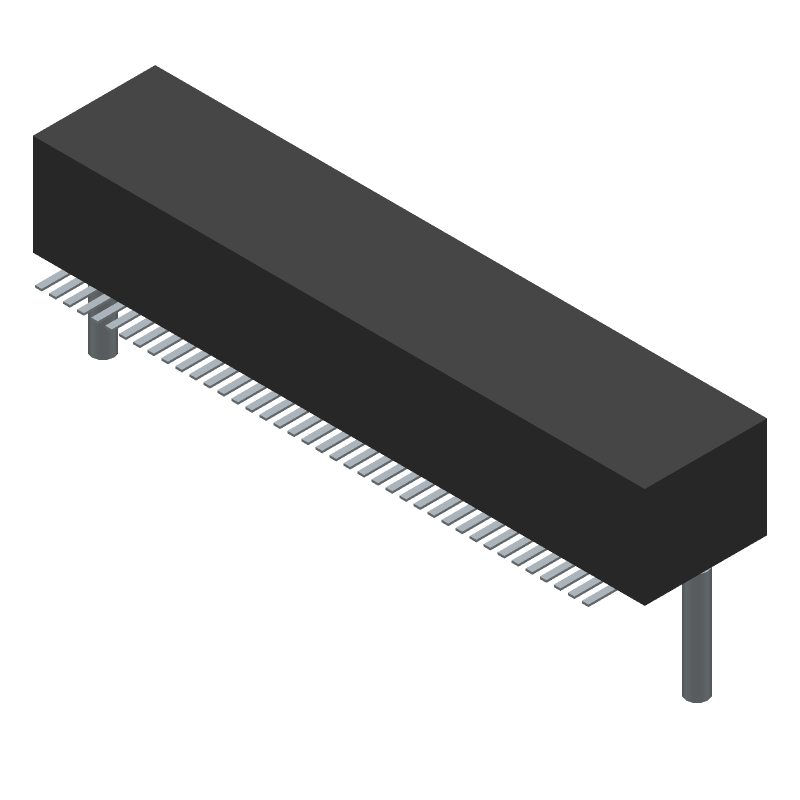

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
FOLC-120-02-S-Q-LC Part Data Attributes
|
|
FOLC-120-02-S-Q-LC
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
FOLC-120-02-S-Q-LC
Samtec Inc
Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 3 Weeks | |
| Additional Feature | None | |
| Board Mounting Option | Split Board Lock | |
| Body Breadth | 0.22 Inch | |
| Body Depth | 0.178 Inch | |
| Body Length | 1.1 Inch | |
| Body/Shell Style | Socket | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Gold (30) | |
| Contact Finish Termination | Tin (Sn) - With Nickel (Ni) Barrier | |
| Contact Gender | Female | |
| Contact Material | Beryllium Copper | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 15 MΩ | |
| Contact Style | Sq Pin-Skt | |
| DIN Conformance | No | |
| Durability | 100 Cycles | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insertion Force-Max | 1.39 N | |
| Insulator Color | Black | |
| Insulator Material | Liquid Crystal Polymer | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.05 Inch | |
| Mating Contact Row Spacing | 0.05 Inch | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| PCB Contact Row Spacing | 5.7404 Mm | |
| Plating Thickness | 30u Inch | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | Ul | |
| Terminal Pitch | 1.27 Mm | |
| Termination Type | Surface Mount | |
| Total Number of Contacts | 80 | |
| Withdrawl Force-Min | 1.112 N |
Alternate Parts for FOLC-120-02-S-Q-LC
This table gives cross-reference parts and alternative options found for FOLC-120-02-S-Q-LC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FOLC-120-02-S-Q-LC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FOLC-120-01-S-Q | Samtec Inc | $20.5344 | Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT | FOLC-120-02-S-Q-LC vs FOLC-120-01-S-Q |
| FOLC-120-L1-S-Q | Samtec Inc | $23.5278 | Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT | FOLC-120-02-S-Q-LC vs FOLC-120-L1-S-Q |
| FOLC-120-M1-S-Q | Samtec Inc | $27.0045 | Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Solder and Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT | FOLC-120-02-S-Q-LC vs FOLC-120-M1-S-Q |
| 10780-6005JL | 3M Interconnect | Check for Price | Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Socket | FOLC-120-02-S-Q-LC vs 10780-6005JL |
FOLC-120-02-S-Q-LC Frequently Asked Questions (FAQ)
-
The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the FOLC-120-02-S-Q-LC connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2. However, it's recommended to consult with Samtec's technical support for specific application requirements.
-
The maximum operating temperature range for the FOLC-120-02-S-Q-LC connector is -55°C to 125°C, but it's recommended to consult the datasheet for specific temperature ratings for different materials and applications.
-
Yes, the FOLC-120-02-S-Q-LC connector is compatible with lead-free soldering processes, but it's recommended to follow Samtec's recommended soldering profiles and guidelines.
-
Samtec provides recommended PCB layout and footprint guidelines in their datasheet and application notes. It's recommended to consult these resources for specific design requirements.
