Part Details for GRM0335C1E300GA01D by Murata Manufacturing Co Ltd
Results Overview of GRM0335C1E300GA01D by Murata Manufacturing Co Ltd
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
GRM0335C1E300GA01D Information
GRM0335C1E300GA01D by Murata Manufacturing Co Ltd is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for GRM0335C1E300GA01D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
490-GRM0335C1E300GA01DCT-ND
|
DigiKey | CAP CER 30PF 25V C0G/NP0 0201 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5452 In Stock |
|
$0.0020 / $0.1000 | Buy Now |
|
DISTI #
GRM0335C1E300GA01D
|
Avnet Americas | - Tape and Reel (Alt: GRM0335C1E300GA01D) COO: Japan RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0037 / $0.0038 | Buy Now |
|
DISTI #
81-GRM0335C1E300GA1D
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 30 pF 25 VDC 2% 0201 C0G (NP0) RoHS: Compliant | 48225 |
|
$0.0020 / $0.1000 | Buy Now |
|
DISTI #
GRM0335C1E300GA01D
|
TME | Capacitor: ceramic, MLCC, 30pF, 25V, C0G (NP0), ±2%, SMD, 0201, 180mm Min Qty: 15000 | 0 |
|
$0.0022 / $0.0027 | RFQ |
|
DISTI #
GRM0335C1E300GA01D
|
Avnet Abacus | (Alt: GRM0335C1E300GA01D) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: GRM0335C1E300GA01D by Murata Manufacturing Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for GRM0335C1E300GA01D
GRM0335C1E300GA01D CAD Models
-
Part Symbol
-
Footprint
-

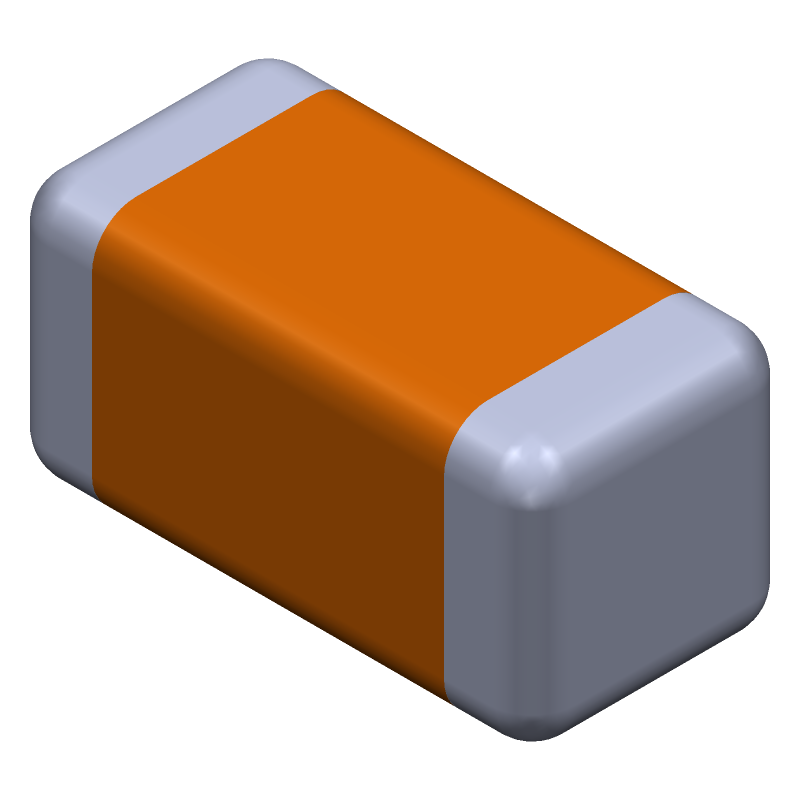

3D Model
