GRM155R71H102KA01D by:
Murata Manufacturing Co Ltd

Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape

Part Details for GRM155R71H102KA01D by Murata Manufacturing Co Ltd

Results Overview of GRM155R71H102KA01D by Murata Manufacturing Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

GRM155R71H102KA01D Information

GRM155R71H102KA01D by Murata Manufacturing Co Ltd is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for GRM155R71H102KA01D

Part # Distributor Description Stock Price Buy
DISTI # 94AK6887
Newark Cap, Mlc, 1000Pf, X7R, 50V, 0402, Capacitance:1000Pf, Voltage(Dc):50V, Voltage(Ac):-, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Grm Series, Qualification:- Rohs Compliant: Yes |Murata GRM155R71H102KA01D RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 30000
  • 10,000 $0.0020
$0.0020 Buy Now
DISTI # 14T3283
Newark Capacitor, Ceramic, 1000Pf, 10%, 50V, 10%, Smd, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Grm Series, Qualification:- Rohs Compliant: Yes |Murata GRM155R71H102KA01D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 20318
  • 1 $0.0080
  • 25 $0.0070
$0.0070 / $0.0080 Buy Now
DISTI # GRM155R71H102KA01D
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: GRM155R71H102KA01D) COO: Philippines (the) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Container: Reel 190000
  • 10,000 $0.0027
  • 20,000 $0.0027
  • 40,000 $0.0026
  • 80,000 $0.0026
  • 160,000 $0.0026
$0.0026 / $0.0027 Buy Now
DISTI # 14T3283
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Product that comes on tape, but is not reeled (Alt: 14T3283) COO: Philippines (the) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 20418 Partner Stock
  • 1 $0.1000
  • 25 $0.0090
  • 100 $0.0090
  • 500 $0.0080
  • 500 $0.0080
$0.0080 / $0.1000 Buy Now
Bisco Industries   5
Buy Now
Bristol Electronics   Min Qty: 89 772830
  • 89 $0.0563
  • 268 $0.0375
  • 935 $0.0094
  • 7,980 $0.0056
  • 22,323 $0.0048
  • 41,668 $0.0045
$0.0045 / $0.0563 Buy Now
Bristol Electronics   Min Qty: 89 19795
  • 89 $0.0563
  • 268 $0.0375
  • 935 $0.0094
  • 7,980 $0.0056
$0.0056 / $0.0563 Buy Now
DISTI # GRM155R71H102KA01D
TME Capacitor: ceramic, MLCC, 1nF, 50V, X7R, ±10%, SMD, 0402, 180mm Min Qty: 1 35943
  • 1 $0.0800
  • 50 $0.0044
  • 100 $0.0042
  • 2,500 $0.0031
  • 10,000 $0.0027
  • 30,000 $0.0025
  • 40,000 $0.0025
  • 50,000 $0.0024
  • 150,000 $0.0023
  • 500,000 $0.0022
$0.0022 / $0.0800 Buy Now
Ameya Holding Limited 0402 1000 pF 50 V ±10% Tolerance X7R Multilayer Ceramic Chip Capacitor 10000
RFQ
ComSIT USA AVAILABLE EU 139
RFQ
ComSIT USA AVAILABLE EU 13685
RFQ
ComSIT USA CERAMIC CAPACITOR Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402 ECCN: EAR99 RoHS: Compliant Stock DE - 190000
Stock ES - 221651
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # SMC-GRM155R71H102KA01D
Sensible Micro Corporation XCAP R= 1000PF 50V 10% X7R 0402 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1408 Container: Tape & Reel 262
RFQ
Chip 1 Exchange INSTOCK 8386
RFQ
DISTI # GRM155R71H102KA01D
Avnet Abacus Multilayer Ceramic Capacitor 1000 pF 50 V 10 X7R 0402 1005 Metric - Tape and Reel (Alt: GRM155R71H102KA01D) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 1450000
Buy Now
DISTI # GRM155R71H102KA01D
Avnet Asia Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] (Alt: GRM155R71H102KA01D) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days 0
  • 10,000 $0.0017
  • 100,000 $0.0016
  • 250,000 $0.0014
  • 500,000 $0.0013
  • 1,000,000 $0.0012
  • 2,000,000 $0.0012
  • 5,000,000 $0.0011
$0.0011 / $0.0017 Buy Now
Chip Stock 50V1nFX7R±10%0402MultilayerCeramicCapacitorsMLCC-SMD/SMTROHS 2552500
RFQ
Component Electronics, Inc CAP SMT CER .001UF 50V 10% 0402 T/R PICK#70760/70761 70178
  • 1 $0.1500
  • 100 $0.1200
  • 1,000 $0.1000
$0.1000 / $0.1500 Buy Now
LCSC 50V 1nF X7R 10% 0402 Ceramic Capacitors RoHS 179600
  • 100 $0.0019
  • 1,000 $0.0014
  • 3,000 $0.0012
  • 10,000 $0.0011
  • 50,000 $0.0009
$0.0009 / $0.0019 Buy Now
DISTI # GRM155R71H102KA01D
Maritex Multilayer Ceramic Capacitors MLCC – SMD/SMT, MURATA, GRM155R71H102KA01D, 1 nF, 0402, 50 V, 50 V Min Qty: 1 Package Multiple: 1 9500
  • 1 $0.0760
  • 50 $0.0040
  • 100 $0.0040
  • 2,500 $0.0030
  • 10,000 $0.0030
  • 30,000 $0.0020
  • 40,000 $0.0020
  • 50,000 $0.0020
  • 150,000 $0.0020
  • 500,000 $0.0020
$0.0020 / $0.0760 Buy Now
New Advantage Corporation 0402 1000 pF 50 V �10% Tolerance X7R Multilayer Ceramic Chip Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 10000 970000
  • 30,000 $0.0060
  • 970,000 $0.0055
$0.0055 / $0.0060 Buy Now
Win Source Electronics Cap Ceramic 0.001uF 50V X7R 10% Pad SMD 0402 125°C T/R / CAP CER 1000PF 50V X7R 0402 2540000
  • 38,465 $0.0013
  • 90,910 $0.0011
  • 136,365 $0.0011
  • 200,000 $0.0010
  • 250,000 $0.0010
  • 333,335 $0.0009
$0.0009 / $0.0013 Buy Now

Part Details for GRM155R71H102KA01D

GRM155R71H102KA01D CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

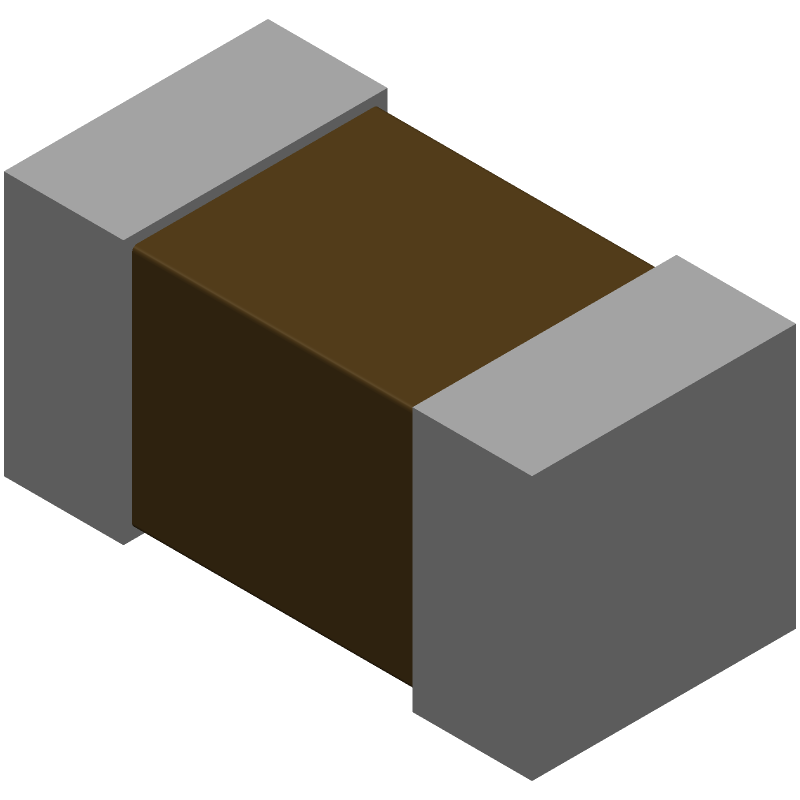

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

GRM155R71H102KA01D Part Data Attributes

Parametric Data
GRM155R71H102KA01D Murata Manufacturing Co Ltd
Buy Now Datasheet
Compare Parts:
GRM155R71H102KA01D Murata Manufacturing Co Ltd Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MURATA MANUFACTURING CO LTD
Part Package Code 0402
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
Samacsys Manufacturer Murata Electronics
Capacitance 0.001 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer YES
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for GRM155R71H102KA01D

This table gives cross-reference parts and alternative options found for GRM155R71H102KA01D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GRM155R71H102KA01D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ECJ0CB1H102K Panasonic Electronic Components Check for Price Ceramic Capacitor, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.001uF, 0402 GRM155R71H102KA01D vs ECJ0CB1H102K
SCM05B102KBNH Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 0402, GRM155R71H102KA01D vs SCM05B102KBNH
C0402T102K5RAL7867 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 0402, GRM155R71H102KA01D vs C0402T102K5RAL7867
C0402T102K5RBCTM KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT GRM155R71H102KA01D vs C0402T102K5RBCTM
CC0402KCX7R9BB102 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT GRM155R71H102KA01D vs CC0402KCX7R9BB102
MCH155CN102KC ROHM Semiconductor Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP GRM155R71H102KA01D vs MCH155CN102KC
0402B102K500N Hitano Enterprise Corp Check for Price Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 0402, GRM155R71H102KA01D vs 0402B102K500N
AGC0402X7R500-102KNP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP GRM155R71H102KA01D vs AGC0402X7R500-102KNP
C0402T102K5RCLTM KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP GRM155R71H102KA01D vs C0402T102K5RCLTM
C1005X7R102KGBS Darfon Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 0402, GRM155R71H102KA01D vs C1005X7R102KGBS
equivalents icon

GRM155R71H102KA01D Related Parts

GRM155R71H102KA01D Frequently Asked Questions (FAQ)

  • Murata recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows.

  • The ESR of the GRM155R71H102KA01D is 0.1 ohms, which is relatively low. This means it can handle high-frequency signals with minimal energy loss and heat generation.

  • Yes, the GRM155R71H102KA01D is a high-reliability capacitor that meets the requirements of AEC-Q200, making it suitable for use in automotive and other high-reliability applications.

  • The capacitance of the GRM155R71H102KA01D decreases by approximately 2% for every 10°C increase in temperature, within the operating temperature range of -55°C to 125°C.

  • The GRM155R71H102KA01D has a rated voltage of 50V, but it can be used in applications with voltages up to 100V with derating. However, it's essential to consult with Murata's application engineers to ensure safe and reliable operation.
