HLE-113-02-S-DV-BE-A-K-TR Information
HLE-113-02-S-DV-BE-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000N | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-PDIP -40 to 85 | |
| 74AC11004DW | Texas Instruments | Hex Inverters 20-SOIC -40 to 85 | |
| 74AC11074D | Texas Instruments | Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 85 |
Price & Stock for HLE-113-02-S-DV-BE-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48AM3582
|
Newark | Conn Rcpt 26Pos 0.1 Gold Smd Rohs Compliant: Yes |Samtec HLE-113-02-S-DV-BE-A-K-TR RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$6.9700 / $8.9900 | Buy Now |
|
DISTI #
95AH5249
|
Newark | Cost-Effective Reliable Socket Rohs Compliant: Yes |Samtec HLE-113-02-S-DV-BE-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
Buy Now | |
|
DISTI #
612-HLE-113-02-S-DV-BE-A-K-TRCT-ND
|
DigiKey | CONN RCPT 26POS 0.1 GOLD SMD Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.9564 / $6.8700 | Buy Now |
|
DISTI #
HLE-113-02-S-DV-BE-A-K-TR
|
Avnet Americas | - Tape and Reel (Alt: HLE-113-02-S-DV-BE-A-K-TR) COO: Viet Nam RoHS: Compliant Min Qty: 700 Package Multiple: 700 Lead time: 2 Weeks, 6 Days Container: Tape & Reel | 0 |
|
$2.4228 / $4.4554 | Buy Now |
|
DISTI #
200-HLE1132SDVBEAKTR
|
Mouser Electronics | Headers & Wire Housings Cost-Effective Reliable Socket RoHS: Compliant | 0 |
|
$2.4200 / $6.5500 | Order Now |
|
|
Onlinecomponents.com | .100" Tiger Beam™ Cost-effective Single Beam Socket Strip COO: Viet Nam RoHS: Compliant | 0 |
|
$2.4500 / $5.3000 | Buy Now |
|
DISTI #
5cd8ef7dcd7c1c4c3840f454
|
Samtec | Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Tape & Reel | 0 |
|
$2.4200 / $6.5500 | Buy Now |
|
DISTI #
000000000002588940
|
Sager | Headers & Wire Housings Cost-Effective Reliable Socket, .100 (2.54 mm) Pitch Min Qty: 1 | 0 |
|
$4.4000 / $6.5500 | Buy Now |
|
DISTI #
HLE-113-02-S-DV-BE-A-K-TR
|
Avnet Abacus | (Alt: HLE-113-02-S-DV-BE-A-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 2.54mm 2.54mm 2 26P 400V Tin BeCu -55+125 3.66mm 4.1A Surface MountVertical Square Hole SMDP2.54mm Headers Receptacles Female Sockets RoHS | 10 |
|
$6.8841 / $7.3217 | Buy Now |
US Tariff Estimator: HLE-113-02-S-DV-BE-A-K-TR by Samtec Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for HLE-113-02-S-DV-BE-A-K-TR
HLE-113-02-S-DV-BE-A-K-TR CAD Models
-

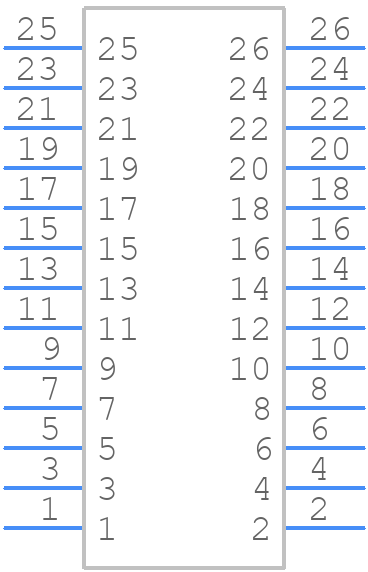

Part Symbol
-

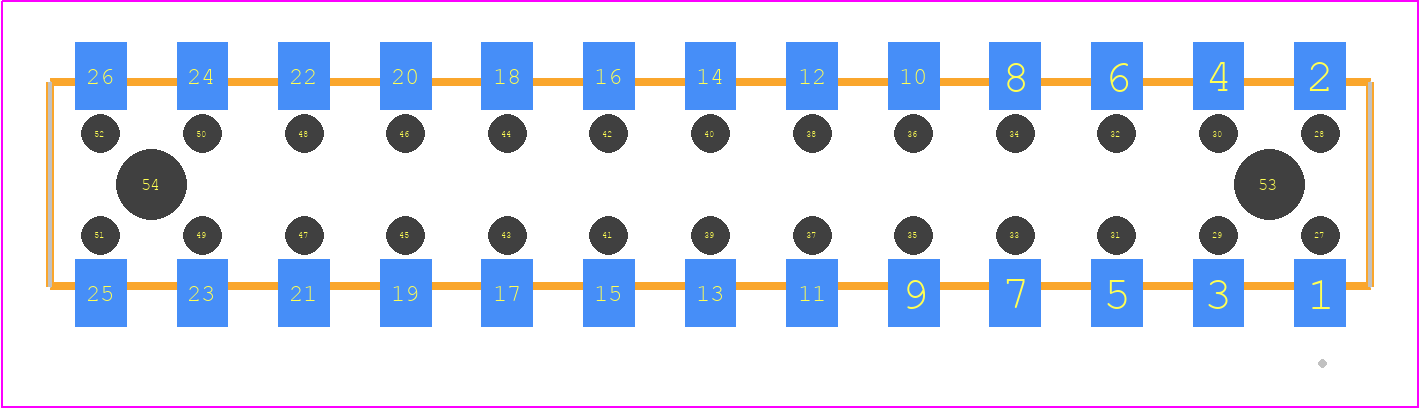

Footprint
