HMC1020LP4ETR Information
HMC1020LP4ETR by Analog Devices Inc is an RF/Microwave Detector.
RF/Microwave Detectors are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC1020LP4ETR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 1 | 108 |
|
$4.3677 / $10.0800 | Buy Now |
|
|
Quest Components | LINEAR DETECTOR, 0MHZ MIN, 3900MHZ MAX, 10DBM INPUT POWER-MAX | 86 |
|
$5.8500 / $13.5000 | Buy Now |
|
|
Rochester Electronics | HMC1020 - Linear Detector, 0MHz Min, 3900MHz Max, 10dBm Input Power-Max RoHS: Compliant Status: Obsolete Min Qty: 1 | 595488 |
|
$3.9400 / $4.9300 | Buy Now |
|
|
Chip Stock | 0Hz~3.9GHz±1dB-65dBm~7dBmGeneral-purposeQFN-24-EP(4x4)RFDetectorsROHS | 7600 |
|
RFQ | |
|
|
Win Source Electronics | IC RMS PWR DETECTOR 65DB 24QFN | 6100 |
|
$7.9201 / $10.2300 | Buy Now |
US Tariff Estimator: HMC1020LP4ETR by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for HMC1020LP4ETR
HMC1020LP4ETR CAD Models
-

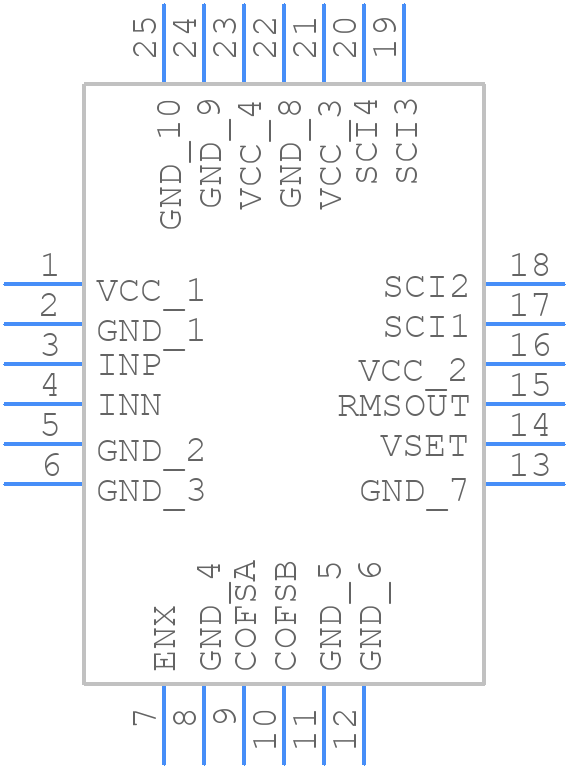

Part Symbol
-
