ISO7763DW Information
ISO7763DW by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7763DW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-47570-ND
|
DigiKey | DGTL ISOLTR 5KV 6CH GP 16-SOIC Min Qty: 1 Container: Tube |
714 Tube |
|
$3.3402 / $5.6600 | Buy Now |
|
DISTI #
ISO7763DW
|
TME | IC: interface, digital isolator, 100Mbps, 2.25÷5.5VDC, SMD, SO16 Min Qty: 1 | 0 |
|
$3.9600 / $5.0100 | RFQ |
|
|
Chip Stock | Robust EMC, six-channel, 3/3, reinforced digital isolator 16-SOIC -55 to 125 | 3700 |
|
RFQ |
US Tariff Estimator: ISO7763DW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ISO7763DW
ISO7763DW CAD Models
-

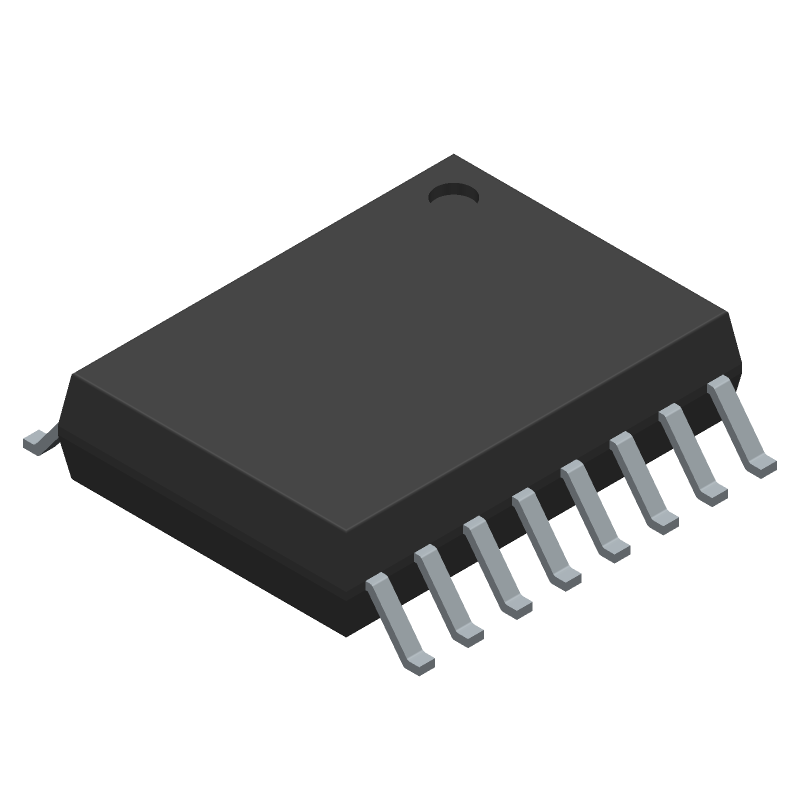

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ISO7763DW Part Data Attributes
|
|
ISO7763DW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7763DW
Texas Instruments
CMOS, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Soic-16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2017-08-17 | |
| Additional Feature | Also Required Vcc2 2.25-5.5v Supply; Also Operate With 3.3v And 5v Supply | |
| Interface IC Type | Digital Isolator | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 6 | |
| Number of Functions | 6 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | Iec 62368-1; Iec 61010-1 | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for ISO7763DW
This table gives cross-reference parts and alternative options found for ISO7763DW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7763DW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7763DBQ | Texas Instruments | $2.1716 | CMOS, PDSO16 | ISO7763DW vs ISO7763DBQ |
| ISO7763FQDWRQ1 | Texas Instruments | $2.2620 | DIGITAL ISOLATOR, CMOS, PDSO16 | ISO7763DW vs ISO7763FQDWRQ1 |
| ISO7763QDWQ1 | Texas Instruments | $2.6240 | CMOS, PDSO16 | ISO7763DW vs ISO7763QDWQ1 |
| ISO7763QDWRQ1 | Texas Instruments | Check for Price | DIGITAL ISOLATOR, CMOS, PDSO16 | ISO7763DW vs ISO7763QDWRQ1 |
| ISO7763QDBQRQ1 | Texas Instruments | Check for Price | DIGITAL ISOLATOR, CMOS, PDSO16 | ISO7763DW vs ISO7763QDBQRQ1 |
| ISO7763FQDBQRQ1 | Texas Instruments | Check for Price | DIGITAL ISOLATOR, CMOS, PDSO16 | ISO7763DW vs ISO7763FQDBQRQ1 |
| ADUM163N0BRZ-RL7 | Analog Devices Inc | Check for Price | CMOS, PDSO16 | ISO7763DW vs ADUM163N0BRZ-RL7 |
| ISO7763FQDWQ1 | Texas Instruments | Check for Price | CMOS, PDSO16 | ISO7763DW vs ISO7763FQDWQ1 |
ISO7763DW Frequently Asked Questions (FAQ)
-
The maximum data rate of the ISO7763DW is 100 Mbps, making it suitable for high-speed applications.
-
The ISO7763DW has a high common-mode transient immunity of ±100 kV/μs, ensuring reliable operation in noisy environments.
-
The typical power consumption of the ISO7763DW is around 1.5 mA per channel at 1 Mbps, making it suitable for low-power applications.
-
Yes, the ISO7763DW is designed to operate in industrial environments with temperatures ranging from -40°C to 125°C, making it suitable for rugged applications.
-
The ISO7763DW has built-in EMI filters and shielding, which help to reduce electromagnetic radiation and improve noise immunity.
