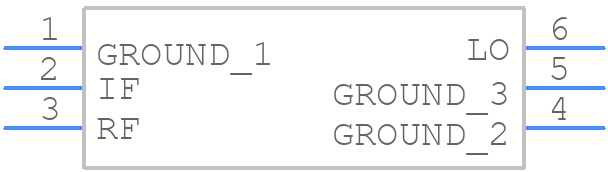

Part Symbol
-

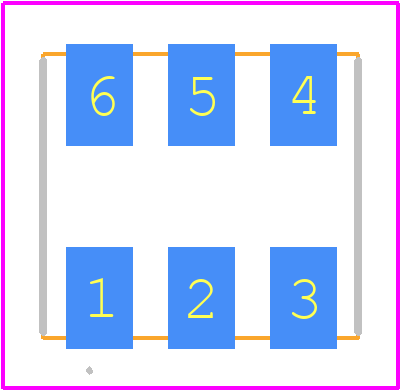

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JMS-1LH+ by Mini-Circuits
Results Overview of JMS-1LH+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Internet of Things (IoT)
Smart Cities
Telecommunications
JMS-1LH+ Information
JMS-1LH+ by Mini-Circuits is an RF/Microwave Mixer.
RF/Microwave Mixers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for JMS-1LH+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-JMS-1LH+-ND
|
DigiKey | DBM, RF/LO FREQ 2 - 500 MHZ Min Qty: 100 Lead time: 14 Weeks Container: Tray | Temporarily Out of Stock |
|
$11.6501 | Buy Now |
|
DISTI #
139-JMS-1LH+
|
Mouser Electronics | RF Mixer Level 10, SMT Double Balanced Mixer, RF/LO Freq 2 - 500 MHz RoHS: Compliant | 38 |
|
$10.9000 / $13.2100 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 188 |
|
$4.5920 / $11.2000 | Buy Now |
|
|
Quest Components | DOUBLE BALANCED MIXER, 2MHZ MIN, 500MHZ MAX, 8DB CONVERSION LOSS-MAX | 150 |
|
$6.5000 / $15.0000 | Buy Now |
Part Details for JMS-1LH+
JMS-1LH+ CAD Models
JMS-1LH+ Part Data Attributes
|
|
JMS-1LH+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
JMS-1LH+
Mini-Circuits
Double Balanced Mixer, 2MHz Min, 500MHz Max, 8dB Conversion Loss-Max
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Construction | Component | |
| Conversion Loss-Max | 8 Db | |
| Input Power-Max (CW) | 17 Dbm | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 500 Mhz | |
| Operating Frequency-Min | 2 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Ceramic | |
| Package Equivalence Code | SMDIP6,.3 | |
| RF/Microwave Device Type | Double Balanced | |
| Surface Mount | Yes | |
| Terminal Finish | Tin (Sn) - With Nickel (Ni) Barrier | |
| VSWR-Max | 2.56 |
