L5956PD Information
L5956PD by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L5956PD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
L5956PD-ND
|
DigiKey | IC REG CONV CAR AUD 4OUT PWRSO20 Container: Tube |
0 Tube |
|
Buy Now | |
|
|
STMicroelectronics | Multifunction Voltage Regulator COO: Malaysia Min Qty: 1 | 0 |
|
$2.4700 / $6.0700 | Buy Now |
|
DISTI #
L5956PD
|
Avnet Americas | Multifunction Voltage Regulator for Car Radio 20-Pin PowerSO Slug Up Tube - Rail/Tube (Alt: L5956PD) COO: Italy RoHS: Compliant Min Qty: 310 Package Multiple: 31 Lead time: 52 Weeks, 0 Days Container: Tube | 0 |
|
$2.5341 / $2.7064 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 17 |
|
RFQ | |
|
|
Vyrian | Fixed Positive LDO Regulator, 4 Output, 8.5V1, 5V2, PDSO20 | 7220 |
|
RFQ |
US Tariff Estimator: L5956PD by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
L5956PD CAD Models
-

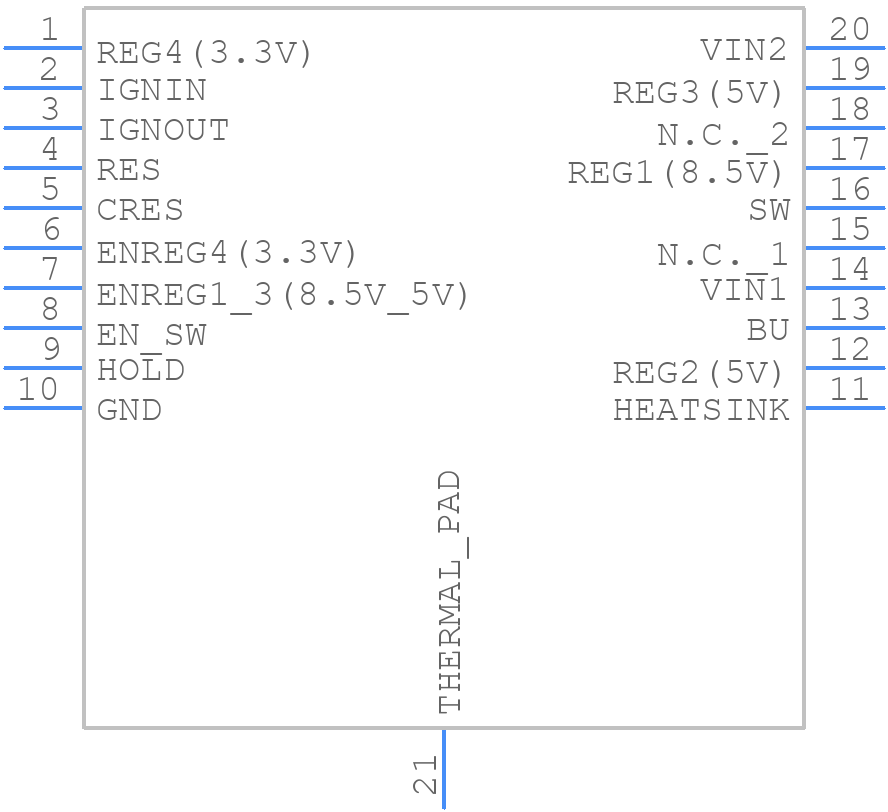

Part Symbol
-

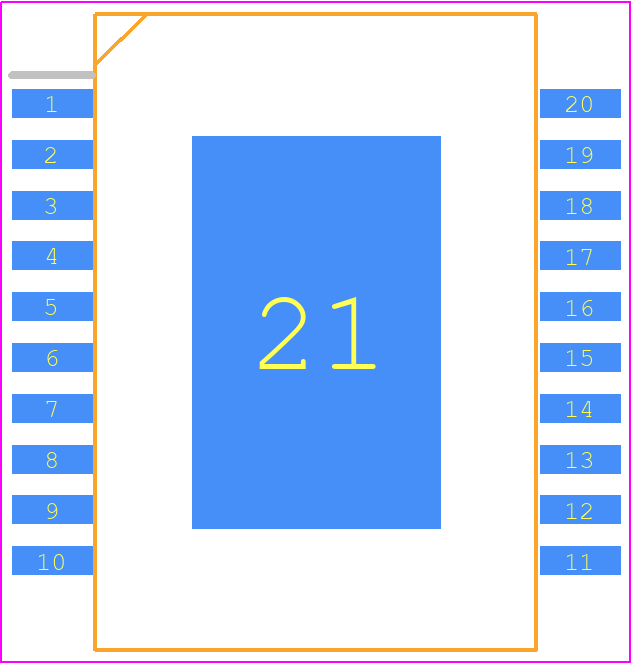

Footprint
-

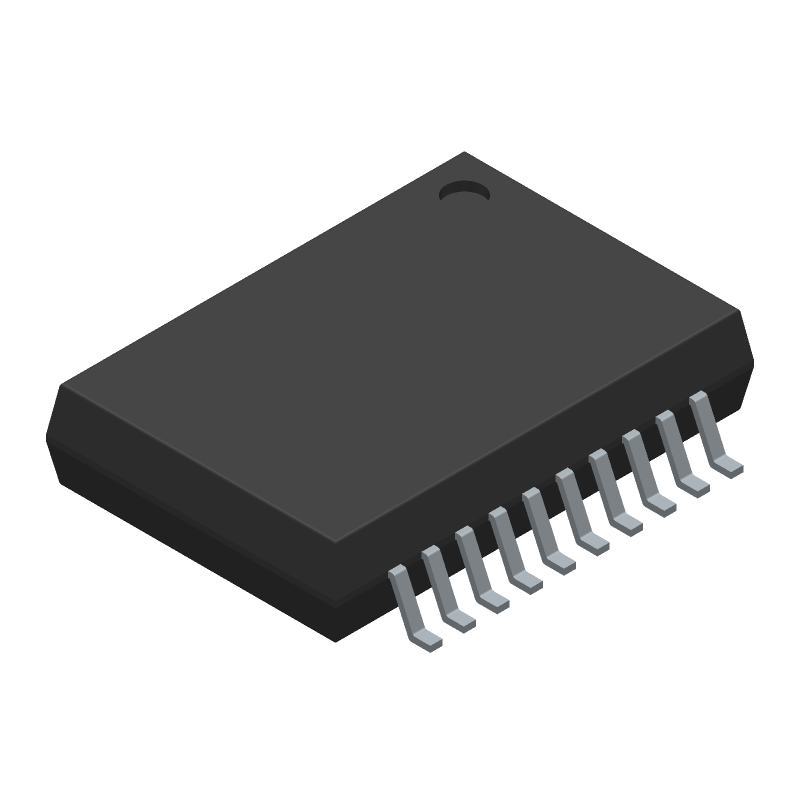

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L5956PD Part Data Attributes
|
|
L5956PD
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L5956PD
STMicroelectronics
Fixed Positive LDO Regulator, 4 Output, 8.5V1, 5V2, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | SOIC | |
| Package Description | Sop-20 | |
| Pin Count | 20 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage2-Max | 1.5 V | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 15.9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 4 | |
| Number of Terminals | 20 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -55 °C | |
| Output Current1-Max | 0.5 A | |
| Output Current2-Max | 0.3 A | |
| Output Voltage1-Max | 9 V | |
| Output Voltage1-Min | 8 V | |
| Output Voltage1-Nom | 8.5 V | |
| Output Voltage2-Max | 5.25 V | |
| Output Voltage2-Min | 4.75 V | |
| Output Voltage2-Nom | 5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.56 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Multiple Output Ldo Regulator | |
| Seated Height-Max | 3.5 Mm | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Voltage Tolerance-Max | 5.9% | |
| Width | 11 Mm |
