LD57100J100R Information
LD57100J100R by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LD57100J100R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89AH1038
|
Newark | Ldo, Fixed, 1V, 1A, -40 To 85Deg C Rohs Compliant: Yes |Stmicroelectronics LD57100J100R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2229 |
|
$0.2640 / $0.5600 | Buy Now |
|
DISTI #
497-LD57100J100RCT-ND
|
DigiKey | IC REG LINEAR 1V 1A 6-FLIPCHIP Min Qty: 1 Lead time: 24 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
916 In Stock |
|
$0.2034 / $0.5600 | Buy Now |
|
DISTI #
LD57100J100R
|
Avnet Americas | LDO Regulator Positive 1V 1A 6-Pin Flip Chip T/R - Tape and Reel (Alt: LD57100J100R) COO: Italy RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1913 / $0.2186 | Buy Now |
|
DISTI #
511-LD57100J100R
|
Mouser Electronics | LDO Voltage Regulators 1 A ultra low-dropout LDO with bias RoHS: Compliant | 2227 |
|
$0.1980 / $0.5600 | Buy Now |
|
DISTI #
V72:2272_24574208
|
Arrow Electronics | LDO Regulator Pos 1V 1A 6-Pin Flip-Chip T/R COO: Italy RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2310 Container: Cut Strips | Americas - 5132 |
|
$0.1962 / $0.2717 | Buy Now |
|
|
STMicroelectronics | 1 A ultra low-dropout LDO with bias COO: Italy RoHS: Compliant Min Qty: 1 | 2227 |
|
$0.2700 / $0.5500 | Buy Now |
|
|
Future Electronics | 1 A ultra low-dropout LDO with bias RoHS: Not Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks Container: Reel | 0Reel |
|
$0.1910 / $0.1970 | Buy Now |
|
|
Future Electronics | RoHS: Not Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks Container: Reel | 0Reel |
|
$0.1910 / $0.1970 | Buy Now |
|
DISTI #
76063140
|
Verical | LDO Regulator Pos 1V 1A 6-Pin Flip-Chip T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 Date Code: 2310 | Americas - 5132 |
|
$0.1962 / $0.2340 | Buy Now |
|
DISTI #
V72:2272_24574208
|
Arrow Electronics | LDO Regulator Pos 1V 1A 6-Pin Flip-Chip T/R COO: Italy RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2310 Container: Cut Strips | Americas - 5132 |
|
$0.1962 / $0.2717 | Buy Now |
US Tariff Estimator: LD57100J100R by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LD57100J100R
LD57100J100R CAD Models
-

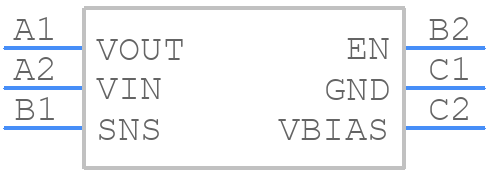

Part Symbol
-
Footprint
-

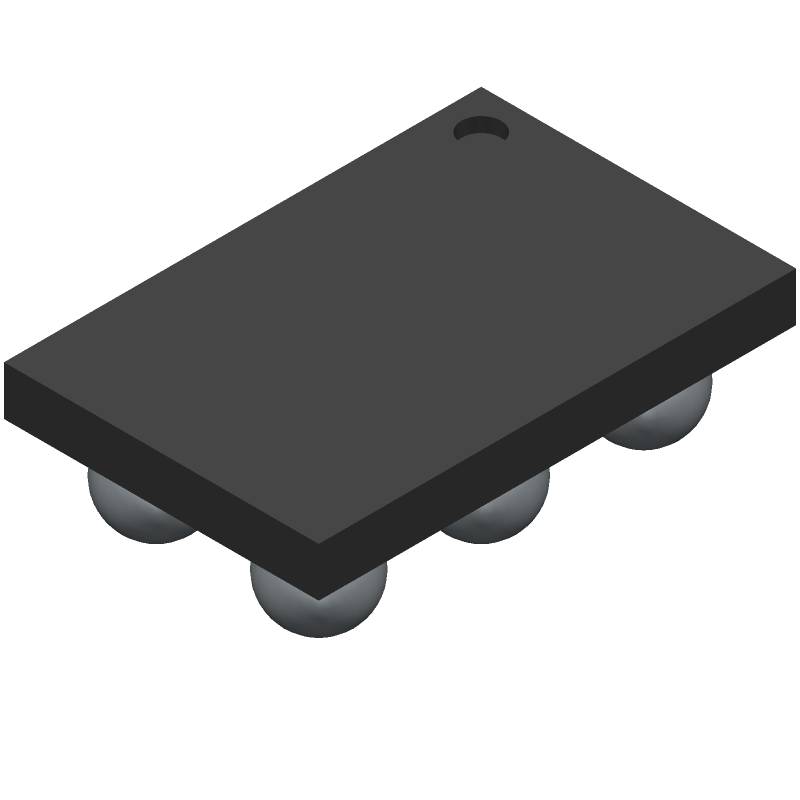

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LD57100J100R Part Data Attributes
|
|
LD57100J100R
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LD57100J100R
STMicroelectronics
Fixed Positive LDO Regulator, 1V, 0.08V Dropout, PBGA6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Flip Chip-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2019-11-05 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 0.08 V | |
| Dropout Voltage1-Nom | 0.04 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.08 V | |
| JESD-30 Code | R-PBGA-B6 | |
| Length | 1.175 Mm | |
| Line Regulation-Max | 0.0037% | |
| Load Regulation-Max | 0.002% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 1.01 V | |
| Output Voltage1-Min | 0.99 V | |
| Output Voltage1-Nom | 1 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA6,2X3,16 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 0.361 Mm | |
| Surface Mount | Yes | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Bottom | |
| Voltage Tolerance-Max | 1% | |
| Width | 0.775 Mm |
