LED6001TR Information
LED6001TR by STMicroelectronics is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LED6001TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14666-1-ND
|
DigiKey | IC LED DRIVER CTRLR PWM 16HTSSOP Min Qty: 1 Container: Cut Tape |
5190 Cut Tape |
|
$2.3039 / $3.9100 | Buy Now |
|
DISTI #
497-14666-6-ND
|
DigiKey | IC LED DRIVER CTRLR PWM 16HTSSOP Min Qty: 1 Container: Digi-Reel |
5190 Digi-Reel® |
|
$2.3039 / $3.9100 | Buy Now |
|
DISTI #
511-LED6001TR
|
Mouser Electronics | LED Lighting Driver ICs PWM-dimmable single channel LED driver with integrated boost controller RoHS: Compliant | 2882 |
|
$2.0600 / $3.9100 | Buy Now |
|
|
STMicroelectronics | PWM-dimmable single channel LED driver with integrated boost controller COO: Italy Min Qty: 1 | 2882 |
|
$2.3100 / $3.9100 | Buy Now |
|
|
Future Electronics | LED6001 Series 36 V 1 MHz PWM-Dimmable Single Channel LED Driver - HTSSOP-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 30 Weeks Container: Reel | 0Reel |
|
$1.8900 | Buy Now |
|
DISTI #
LED6001TR
|
TME | IC: driver, LED driver, HTSSOP16, 60V, Ch: 1, PWM, Uin: 5.5÷36V Min Qty: 1 | 0 |
|
$2.3800 / $3.3400 | RFQ |
|
|
ComSIT USA | LED Driver, 4-Segment, PDSO16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
US Tariff Estimator: LED6001TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LED6001TR CAD Models
-

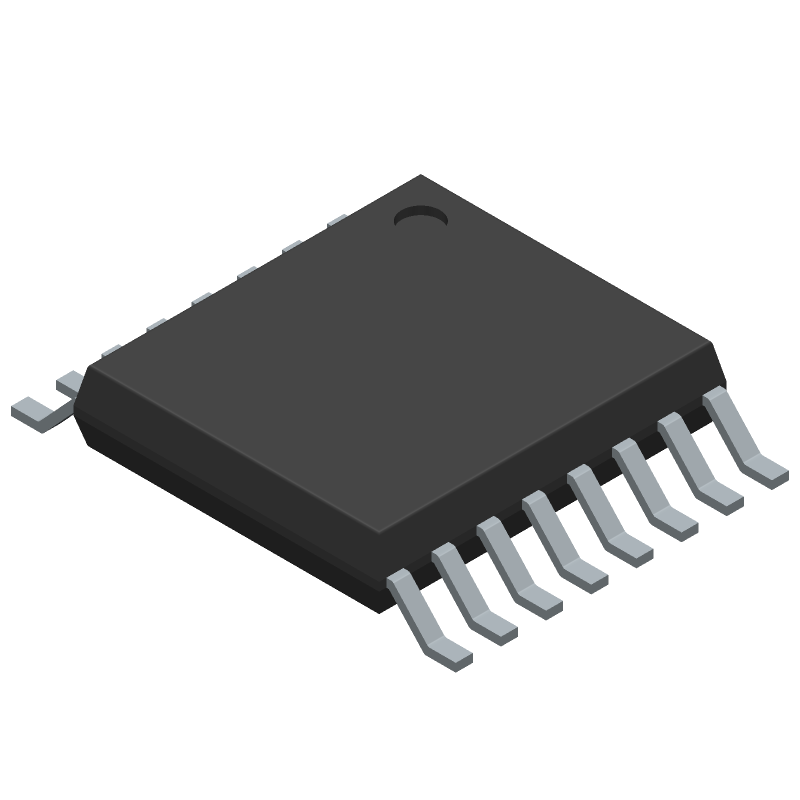

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LED6001TR Part Data Attributes
|
|
LED6001TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LED6001TR
STMicroelectronics
LED Driver, 4-Segment, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Htssop-16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 16 Weeks | |
| Data Input Mode | Serial | |
| Input Characteristics | Standard | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 3 | |
| Multiplexed Display Capability | No | |
| Number of Functions | 1 | |
| Number of Segments | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Constant-Current | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Thin Profile, Shrink Pitch | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 7 Ma | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 5.5 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | Yes | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 4.4 Mm | |
| fmax-Min | 0.02 Mhz |
LED6001TR Frequently Asked Questions (FAQ)
-
The maximum current that can be sunk by the LED6001TR is 1.5A per channel, making it suitable for high-brightness LED applications.
-
To ensure stable operation, the LED6001TR should be operated within a temperature range of -40°C to 125°C. Proper thermal management, such as using a heat sink, is also recommended.
-
Yes, the LED6001TR is compatible with PWM (Pulse-Width Modulation) dimming. The device can be controlled using a PWM signal to adjust the brightness of the LEDs.
-
The minimum input voltage required for the LED6001TR is 6V, making it suitable for a wide range of power supply voltages.
-
To protect the LED6001TR from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor to ensure that the input voltage remains within the recommended operating range.
