LM2575T-ADJ/NOPB Information
LM2575T-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TCR15AGADJ | Toshiba Electronic Devices & Storage Corporation | LDO Regulator, Adjustable Output, 0.6 to 3.6 V, 1500 mA, WCSP6F | |
| TCR13AGADJ | Toshiba Electronic Devices & Storage Corporation | LDO Regulator, Adjustable Output, 0.55 to 3.6 V, 1300 mA, WCSP6F | |
| TCKE712BNL | Toshiba Electronic Devices & Storage Corporation | eFuse IC (electronic Fuse), 4.4 to 13.2 V, 3.65 A, Latch, Adjustable Over Voltage Protection, WSON10 |
Price & Stock for LM2575T-ADJ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 2 | 160 |
|
$1.3590 / $2.9120 | Buy Now |
|
DISTI #
LM2575T-ADJ/NOPB
|
TME | PMIC, DC/DC converter, Uin: 4÷40VDC, Uout: 1.23÷37VDC, 1A, TO220-5 Min Qty: 1 | 266 |
|
$2.5800 / $3.4500 | Buy Now |
|
|
Ameya Holding Limited | IC: PMIC, DC/DC converter, Uin: 4÷40VDC, Uout: 1.23÷37VDC, 1A | 135 |
|
RFQ | |
|
|
Chip Stock | ICREGBUCKADJ1ATO220-5BuckSwitchingRegulatorICPositiveAdjustable1.23V1Output1ATO-220-5 | 7090 |
|
RFQ | |
|
|
New Advantage Corporation | IC-2575 V.REG 1A TO220-5 RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 79 |
|
$5.1600 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 1A TO220-5 / Conv DC-DC 4.75V to 40V Step Down Single-Out 1.23V to 37V 1A 5-Pin(5+Tab) TO-220 Tube | 5590 |
|
$1.6364 / $2.4545 | Buy Now |
US Tariff Estimator: LM2575T-ADJ/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2575T-ADJ/NOPB
LM2575T-ADJ/NOPB CAD Models
-

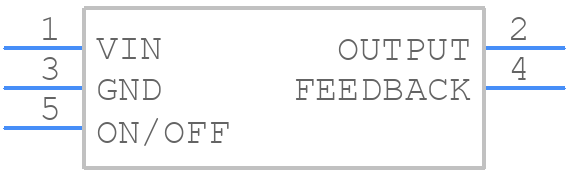

Part Symbol
-

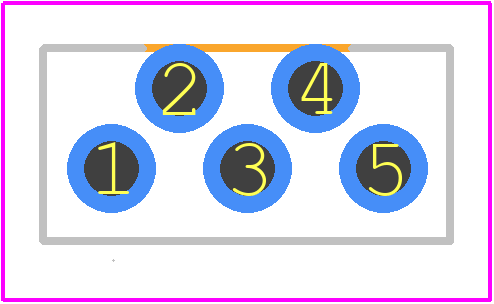

Footprint
-
