Part Details for LM337SP by STMicroelectronics
Results Overview of LM337SP by STMicroelectronics
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM337SP Information
LM337SP by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM337SP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05M6684
|
Newark | V Reg Adj -1.2/37V, To-220-3, 337, |Stmicroelectronics LM337SP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2362 |
|
$0.7310 / $1.4400 | Buy Now |
|
DISTI #
38AH8601
|
Newark | V Reg Adj -1.2/37V, To-220-3, 337, |Stmicroelectronics LM337SP RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.8590 | Buy Now |
|
DISTI #
V36:1790_06553386
|
Arrow Electronics | Standard Regulator Neg -1.2V to -37V 1.5A 3-Pin(3+Tab) TO-220AB Tube COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 30 Weeks Date Code: 2434 | Americas - 5000 |
|
$0.4607 | Buy Now |
|
DISTI #
511-LM337SP
|
Mouser Electronics | Linear Voltage Regulators 1.2-37V Adj Negative RoHS: Compliant | 2616 |
|
$0.6140 / $1.4300 | Buy Now |
|
DISTI #
86323045
|
Verical | Standard Regulator Neg -1.2V to -37V 1.5A 3-Pin(3+Tab) TO-220AB Tube RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2434 | Americas - 5000 |
|
$0.4607 | Buy Now |
|
|
Future Electronics | LM337 Series 1.5 A -1.2 to -37 V Adjustable Negative Voltage Regulator -TO-220 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 30 Weeks Container: Tube | 0Tube |
|
$0.5750 / $0.6050 | Buy Now |
|
DISTI #
LM337SP
|
Avnet Americas | Linear Voltage Regulator, Adjustable, 40V primary input, -37V to -1.2V/1.5A/1 Output, TO-220-3 - Rail/Tube (Alt: LM337SP) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks, 0 Days Container: Tube | 5000 |
|
$0.5116 / $0.5390 | Buy Now |
|
|
Bristol Electronics | Standard Regulator Neg -1.2V to -37V 1.5A 3-Pin(3+Tab) TO-220AB Tube | 61 |
|
RFQ | |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -37V,BIPOLAR,SIP,3PIN,PLASTIC | 342 |
|
$0.4671 / $1.5570 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -37V,BIPOLAR,SIP,3PIN,PLASTIC | 120 |
|
$0.9375 / $1.8750 | Buy Now |
US Tariff Estimator: LM337SP by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LM337SP CAD Models
-
Part Symbol
-
Footprint
-

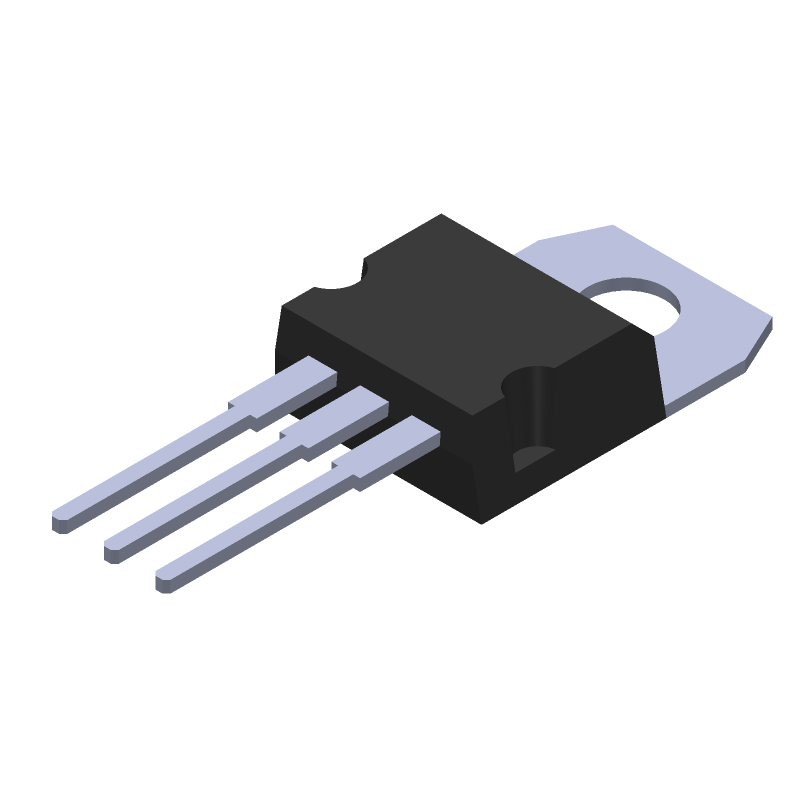

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM337SP Part Data Attributes
|
|
LM337SP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM337SP
STMicroelectronics
Adjustable Negative Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSFM3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SFM | |
| Package Description | To-220, 3 Pin | |
| Pin Count | 3 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 8 Weeks | |
| Adjustability | Adjustable | |
| Dropout Voltage1-Nom | 3 V | |
| Input-Output Voltage Differential-Max | 40 V | |
| Input-Output Voltage Differential-Min | 3 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max (%/V) | 0.07 | |
| Load Regulation-Max(%) | 1.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 37 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Qualification Status | Not Qualified | |
| Regulator Type | Adjustable Negative Single Output Standard Regulator | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
Alternate Parts for LM337SP
This table gives cross-reference parts and alternative options found for LM337SP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM337SP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
LM337SP Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM337SP is 40V, but it's recommended to keep it below 35V for reliable operation.
-
To ensure stability, use a minimum output capacitance of 10uF, and a minimum ESR (Equivalent Series Resistance) of 0.5 ohms. Also, keep the input and output capacitors close to the regulator.
-
The LM337SP can regulate properly with a minimum load current of 3.5mA. However, it's recommended to have a minimum load current of 10mA for optimal performance.
-
The LM337SP is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
-
Use a TVS (Transient Voltage Suppressor) diode or a zener diode in parallel with the input capacitor to protect the LM337SP from input voltage transients.
