LM358AST Information
LM358AST by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM358AST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM358AST
|
Avnet Americas | OP Amp Dual GP ?15V/30V 8-Pin MSOP T/R - Tape and Reel (Alt: LM358AST) COO: China RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 30 Weeks, 0 Days Container: Tape & Reel | 4000 |
|
$0.1122 / $0.1182 | Buy Now |
|
DISTI #
497-7332-1-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 1 Container: Cut Tape |
43569 Cut Tape |
|
$0.4415 / $0.9100 | Buy Now |
|
DISTI #
497-7332-2-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 4000 Container: Tape & Reel |
43569 Tape & Reel |
|
$0.3964 / $0.4157 | Buy Now |
|
DISTI #
497-7332-6-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 1 Container: Digi-Reel |
43569 Digi-Reel® |
|
$0.4415 / $0.9100 | Buy Now |
|
DISTI #
86931752
|
Verical | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Date Code: 2439 | Americas - 12000 |
|
$0.1075 | Buy Now |
|
DISTI #
91974697
|
Verical | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2541 | Americas - 4000 |
|
$0.1836 | Buy Now |
|
DISTI #
511-LM358AST
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Low Power RoHS: Compliant | 2876 |
|
$0.1470 / $0.3600 | Buy Now |
|
DISTI #
V36:1790_06553392
|
Arrow Electronics | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin MSOP T/R COO: China RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 30 Weeks Date Code: 2439 | Americas - 12000 |
|
$0.1075 | Buy Now |
|
DISTI #
E02:0323_08529282
|
Arrow Electronics | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 30 Weeks Date Code: 2541 | Europe - 4000 |
|
$0.1252 | Buy Now |
|
|
Future Electronics | LM358A Series 30 V 1.1 MHz Low-Power Dual Operational Amplifier - MiniSO-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 30 Weeks Container: Reel | 8000Reel |
|
$0.1260 / $0.1310 | Buy Now |
US Tariff Estimator: LM358AST by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LM358AST CAD Models
-

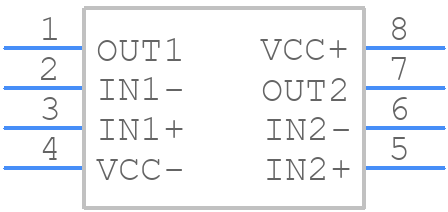

Part Symbol
-
