LM35DM Information
LM35DM by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM35DM | Texas Instruments | ±0.5°C Temperature Sensor with Analog Output and 30V Capability 8-SOIC 0 to 100 | |
| LM35DMX | Texas Instruments | ±0.5°C Temperature Sensor with Analog Output and 30V Capability 8-SOIC 0 to 100 | |
| LM35DM/NOPB | Texas Instruments | ±0.5°C Temperature Sensor with Analog Output and 30V Capability 8-SOIC 0 to 100 |
Price & Stock for LM35DM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | SENSORANALOG0C-100C8SOIC", TemperatureSensorAnalog,Local0°C~100°C10mV/°C8-SOIC", | 49005 |
|
RFQ | |
|
|
Win Source Electronics | SENSOR TEMP ANLG VOLT 8-SOIC / Temp Sensor Analog Serial (2-Wire) 8-Pin SOIC Tube | 40000 |
|
$0.5315 / $0.6864 | Buy Now |
US Tariff Estimator: LM35DM by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM35DM
LM35DM CAD Models
-

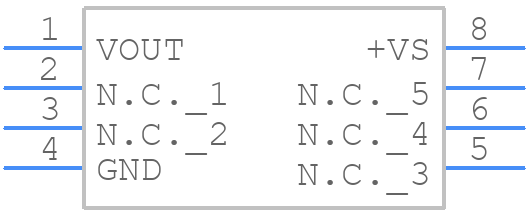

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM35DM Part Data Attributes
|
|
LM35DM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM35DM
Texas Instruments
1C high voltage analog temperature sensor, 10 mV/C 8-SOIC 0 to 100
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 1994-12-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 1 Cel | |
| Body Breadth | 3.89 mm | |
| Body Height | 1.54 mm | |
| Body Length or Diameter | 4.9 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e0 | |
| Linearity (Cel) | 0.2 Cel | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 8 | |
| Operating Current-Max | 0.114 mA | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | ||
| Output Interface Type | 2-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape/Style | RECTANGULAR | |
| R0-Nom | 0.4 Ω | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 30 V | |
| Supply Voltage-Min | 4 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Termination Type | SOLDER |
Alternate Parts for LM35DM
This table gives cross-reference parts and alternative options found for LM35DM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM35DM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM35DM/NOPB | National Semiconductor Corporation | Check for Price | Analog Temperature Sensor, ANALOG TEMP SENSOR-VOLTAGE, -.55-1.5V, 0.60Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SO-8 | LM35DM vs LM35DM/NOPB |
| LM35DMX | National Semiconductor Corporation | Check for Price | Analog Temperature Sensor, ANALOG TEMP SENSOR-VOLTAGE, -.55-1.5V, RECTANGULAR, SURFACE MOUNT, PLASTIC, SOP-8 | LM35DM vs LM35DMX |
LM35DM Frequently Asked Questions (FAQ)
-
The LM35DM can operate from -20°C to 150°C, but the accuracy is specified from -20°C to 100°C.
-
Connect the Vout pin to an analog input pin on the microcontroller, and make sure to add a pull-up resistor (e.g., 1 kΩ) to the Vout pin if the microcontroller has a high-impedance input.
-
The typical current consumption of the LM35DM is around 60 μA, but it can be as low as 10 μA in low-power mode.
-
Yes, the LM35DM is suitable for use in humid environments, but it's recommended to add a conformal coating or potting compound to protect the device from moisture.
-
The LM35DM has an accuracy of ±0.5°C at room temperature (25°C), and ±1°C over the entire operating temperature range.
