Part Details for LM57TPWR by Texas Instruments
Results Overview of LM57TPWR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
LM57TPWR Information
LM57TPWR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LM57TPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM57TPWRCT-ND
|
DigiKey | THERMOSTAT PROG ACT HI/LO 8TSSOP Min Qty: 1 Container: Cut Tape |
2000 Cut Tape |
|
$1.3101 / $2.0300 | Buy Now |
|
DISTI #
296-LM57TPWRTR-ND
|
DigiKey | THERMOSTAT PROG ACT HI/LO 8TSSOP Min Qty: 2000 Container: Tape & Reel |
2000 Tape & Reel |
|
$1.2053 / $1.2668 | Buy Now |
|
DISTI #
296-LM57TPWRDKR-ND
|
DigiKey | THERMOSTAT PROG ACT HI/LO 8TSSOP Min Qty: 1 Container: Digi-Reel |
2000 Digi-Reel® |
|
$1.3101 / $2.0300 | Buy Now |
|
DISTI #
595-LM57TPWR
|
Mouser Electronics | Board Mount Temperature Sensors +/-0.7C Temperature Sensor with Resistor A 595-LM57TPW RoHS: Compliant | 930 |
|
$1.1500 / $2.4400 | Buy Now |
US Tariff Estimator: LM57TPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LM57TPWR CAD Models
-

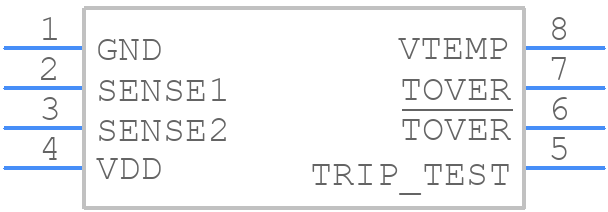

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM57TPWR Part Data Attributes
|
|
LM57TPWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM57TPWR
Texas Instruments
Single Trip Point Switch/Digital Sensor, 1.3Cel, Rectangular, 8 Pin, Surface Mount
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Accuracy-Max (Cel) | 1.5 Cel | |
| Body Breadth | 3 Mm | |
| Body Height | 1.2 Mm | |
| Body Length or Diameter | 4.4 Mm | |
| Housing | Plastic | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 8 | |
| Operating Current-Max | 0.028 Ma | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape/Style | Rectangular | |
| Sensors/Transducers Type | Temperature Sensor,Switch/Digital Output,Single Trip Point | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.4 V | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Termination Type | Solder |
