| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMV358IDR | Texas Instruments | $0.1638 | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 | LMV358LIST vs LMV358IDR |
| LMV358LIPT | STMicroelectronics | $0.4495 | Operational Amplifier, 8 Func, 9000uV Offset-Max, BICMOS, PDSO2 | LMV358LIST vs LMV358LIPT |
| LMV358ID | Texas Instruments | $0.9003 | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 | LMV358LIST vs LMV358ID |
| TSV852IYDT | STMicroelectronics | $0.9717 | Operational Amplifier, 8 Func, 6000uV Offset-Max, CMOS, PDSO2 | LMV358LIST vs TSV852IYDT |
| TSV852IDT | STMicroelectronics | $1.0429 | Operational Amplifier, 8 Func, 6000uV Offset-Max, CMOS, PDSO2 | LMV358LIST vs TSV852IDT |
| APX358S-U | Diodes Incorporated | Check for Price | Operational Amplifier, 2 Func, 9000uV Offset-Max, CMOS, PDSO8 | LMV358LIST vs APX358S-U |
| APX358M8-U | Diodes Incorporated | Check for Price | Operational Amplifier, 2 Func, 9000uV Offset-Max, CMOS, PDSO8 | LMV358LIST vs APX358M8-U |
| APX358M8G-U | Diodes Incorporated | Check for Price | Operational Amplifier, 2 Func, 9000uV Offset-Max, CMOS, PDSO8 | LMV358LIST vs APX358M8G-U |
| APX358M8-13 | Diodes Incorporated | Check for Price | Operational Amplifier, 2 Func, 9000uV Offset-Max, CMOS, PDSO8 | LMV358LIST vs APX358M8-13 |
| LMV358IDDURE4 | Texas Instruments | Check for Price | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 | LMV358LIST vs LMV358IDDURE4 |
Part Details for LMV358LIST by STMicroelectronics
Results Overview of LMV358LIST by STMicroelectronics
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LMV358LIST Information
LMV358LIST by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV358LIST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9130
|
Newark | Op-Amp, 1.3Mhz, 0.7V/Us, Mini Soic-8, |Stmicroelectronics LMV358LIST RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 541 |
|
$0.3000 / $0.6570 | Buy Now |
|
DISTI #
497-13055-6-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 1 Container: Digi-Reel |
22936 Digi-Reel® |
|
$0.3638 / $0.7600 | Buy Now |
|
DISTI #
497-13055-2-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 4000 Container: Tape & Reel |
22936 Tape & Reel |
|
$0.3235 / $0.3424 | Buy Now |
|
DISTI #
497-13055-1-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MINISO Min Qty: 1 Container: Cut Tape |
2936 Cut Tape |
|
$0.3638 / $0.7600 | Buy Now |
|
DISTI #
87858566
|
Verical | Op Amp Dual Low Power Amplifier R-R O/P 5.5V 8-Pin Mini-SO T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2504 | Americas - 12000 |
|
$0.2367 | Buy Now |
|
DISTI #
91045512
|
Verical | Op Amp Dual Low Power Amplifier R-R O/P 5.5V 8-Pin Mini-SO T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2521 | Americas - 4000 |
|
$0.3012 | Buy Now |
|
DISTI #
93259054
|
Verical | Op Amp Dual Low Power Amplifier R-R O/P 5.5V 8-Pin Mini-SO T/R RoHS: Compliant Min Qty: 6 Package Multiple: 1 | Americas - 3910 |
|
$0.2792 / $0.6097 | Buy Now |
|
DISTI #
511-LMV358LIST
|
Mouser Electronics | Operational Amplifiers - Op Amps 1.3MHz LP Gen Op-Amp 250uA at 5V 7mV 25c RoHS: Compliant | 5650 |
|
$0.3240 / $0.7600 | Buy Now |
|
DISTI #
E02:0323_05956183
|
Arrow Electronics | Op Amp Dual Low Power Amplifier R-R O/P 5.5V 8-Pin Mini-SO T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 30 Weeks Date Code: 2504 | Europe - 12000 |
|
$0.3385 / $0.3581 | Buy Now |
|
DISTI #
V36:1790_06548655
|
Arrow Electronics | Op Amp Dual Low Power Amplifier R-R O/P 5.5V 8-Pin Mini-SO T/R COO: Taiwan RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 30 Weeks Date Code: 2521 | Americas - 4000 |
|
$0.3012 | Buy Now |
US Tariff Estimator: LMV358LIST by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LMV358LIST CAD Models
-
Part Symbol
-
Footprint
-

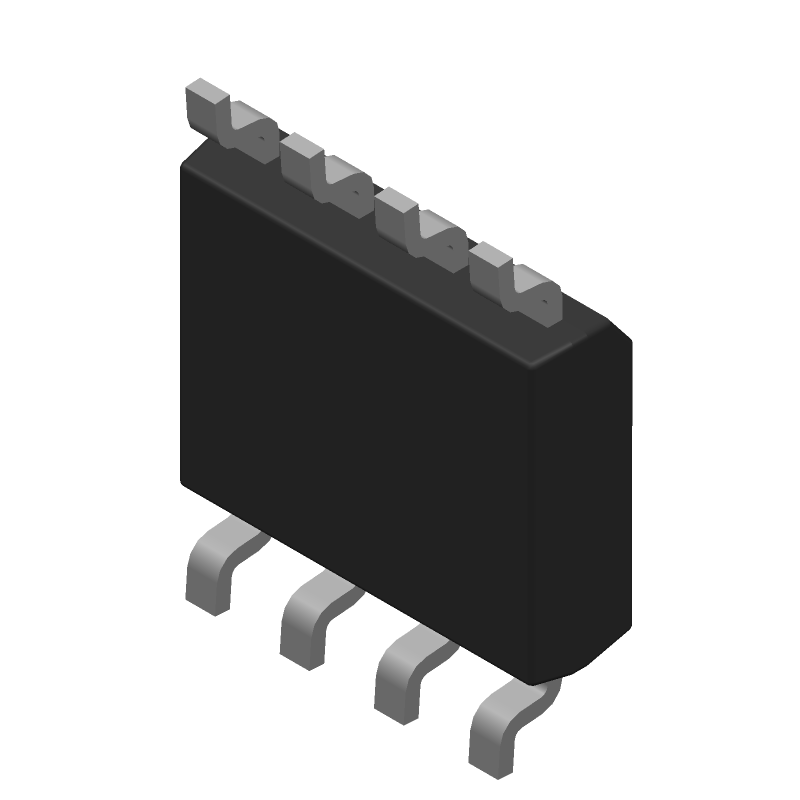

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LMV358LIST Part Data Attributes
|
|
LMV358LIST
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LMV358LIST
STMicroelectronics
Operational Amplifier, 8 Func, 9000uV Offset-Max, BICMOS, PDSO2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant, Mini, Sop-8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.11 µA | |
| Bias Current-Max (IIB) @25C | 0.06 µA | |
| Common-mode Reject Ratio-Min | 72 Db | |
| Common-mode Reject Ratio-Nom | 75 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 9000 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 8 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Nom | 0.7 V/Us | |
| Supply Current-Max | 0.7 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1300 | |
| Voltage Gain-Min | 10000 | |
| Wideband | No | |
| Width | 3 Mm |
Alternate Parts for LMV358LIST
This table gives cross-reference parts and alternative options found for LMV358LIST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMV358LIST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
LMV358LIST Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LMV358LIST is 670mW, which is calculated based on the maximum junction temperature (150°C) and thermal resistance (125°C/W) specified in the datasheet.
-
To ensure stability in the LMV358LIST op-amp, it is recommended to use a capacitor with a value of 10nF to 100nF between the output and the inverting input pins, and to avoid capacitive loads greater than 100pF.
-
The recommended operating voltage range for the LMV358LIST is 2.7V to 5.5V, although the device can operate down to 2.2V with reduced performance.
-
Yes, the LMV358LIST can be used as a comparator, but it is not recommended due to its limited slew rate and bandwidth. A dedicated comparator like the LMV761 is a better choice for comparator applications.
-
To reduce noise in the LMV358LIST op-amp circuit, use a low-pass filter at the input, keep the circuit layout compact, and use a ground plane to reduce electromagnetic interference (EMI).
