LP3891ES-1.2 Information
LP3891ES-1.2 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP3891ES-1.2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-LP3891ES-1.2-ND
|
DigiKey | IC REG LINEAR 1.2V 800MA TO263 Min Qty: 86 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
8307 In Stock |
|
$3.5000 | Buy Now |
|
DISTI #
LP3891ES-1.2-ND
|
DigiKey | IC REG LINEAR 1.2V 800MA TO263 Min Qty: 86 Lead time: 12 Weeks Container: Tube | Limited Supply - Call |
|
$3.9818 | Buy Now |
|
DISTI #
85992385
|
Verical | LDO Regulator Pos 1.2V 0.8A 6-Pin(5+Tab) DDPAK Tube RoHS: Not Compliant Min Qty: 113 Package Multiple: 1 Date Code: 1501 | Americas - 8307 |
|
$2.8000 / $3.3250 | Buy Now |
|
|
Rochester Electronics | Fixed Positive LDO Regulator, 1.2V, 0.4V Dropout, CMOS, PSSO5 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 8307 |
|
$2.2400 / $2.8000 | Buy Now |
US Tariff Estimator: LP3891ES-1.2 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LP3891ES-1.2

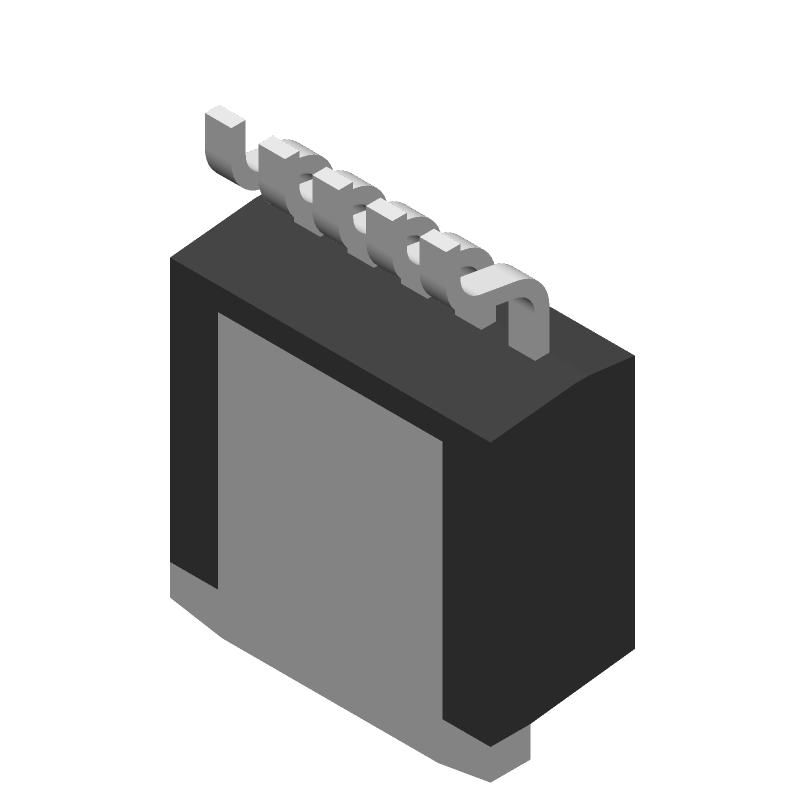

LP3891ES-1.2 CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LP3891ES-1.2 Part Data Attributes
|
|
LP3891ES-1.2
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP3891ES-1.2
Texas Instruments
Fixed Positive LDO Regulator, 1.2V, 0.4V Dropout, CMOS, PSSO5
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | D2PAK | |
| Package Description | To-263, 5 Pin | |
| Pin Count | 4 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 0.4 V | |
| Dropout Voltage1-Nom | 0.1 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.6 V | |
| JESD-30 Code | R-PSSO-G5 | |
| JESD-609 Code | e0 | |
| Length | 10.16 Mm | |
| Line Regulation-Max | 0.000468% | |
| Load Regulation-Max | 0.00072% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.8 A | |
| Output Voltage1-Max | 1.246 V | |
| Output Voltage1-Min | 1.186 V | |
| Output Voltage1-Nom | 1.2 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP5H,.6,67TB | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 4.8 Mm | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.7 Mm | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Voltage Tolerance-Max | 2.5% | |
| Width | 8.64 Mm |
