LQA30T300 by: Power Integrations

Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, TO-220AC, GREEN PACKAGE-2

Part Details for LQA30T300 by Power Integrations

Results Overview of LQA30T300 by Power Integrations

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

LQA30T300 Information

LQA30T300 by Power Integrations is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for LQA30T300

Part # Distributor Description Stock Price Buy
DISTI # 27AC8075
Newark Rectifier, 300V, 30A, To-220Ac, Repetitive Peak Reverse Voltage:300V, Average Forward Current:30A, Diode Configuration:Single, Forward Voltage Max:1.95V, Reverse Recovery Time:13.7Ns, Forward Surge Current:200A, No. Of Pins:2 Pin Rohs Compliant: Yes |Power Integrations LQA30T300 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 452
  • 1 $1.9900
  • 10 $1.8600
  • 100 $1.7200
  • 500 $1.6300
  • 1,000 $1.5300
$1.5300 / $1.9900 Buy Now
DISTI # 79AH3659
Newark 300V, 30A, Ultra-Low Qrr, Rectifier Rohs Compliant: Yes |Power Integrations LQA30T300 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $1.5200
  • 1,000 $1.4200
$1.4200 / $1.5200 Buy Now
DISTI # 596-1361-5-ND
DigiKey DIODE STANDARD 300V 30A TO220AC Min Qty: 1 Lead time: 16 Weeks Container: Tube 2139
In Stock
  • 1 $1.5400
  • 100 $1.2700
  • 1,000 $1.0800
  • 10,000 $0.9240
$0.9240 / $1.5400 Buy Now
DISTI # LQA30T300
Avnet Americas Fast / Ultrafast Diode, Qspeed, 300 V, 30 A, Single, 1.95 V, 13.7 ns, 200 A - Rail/Tube (Alt: LQA30T300) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Tube 35
  • 500 $1.0692
  • 1,000 $1.0638
  • 2,000 $0.9923
  • 4,000 $0.9784
  • 8,000 $0.9625
$0.9625 / $1.0692 Buy Now
DISTI # 903-LQA30T300
Mouser Electronics Rectifiers Q-Series 300V 30A Ultra Low Qrr RoHS: Compliant 1255
  • 1 $1.5400
  • 100 $1.2700
  • 1,000 $1.0800
$1.0800 / $1.5400 Buy Now
Future Electronics LQA30T300 Series 300 V 30 A Through Hole Schottky Diode - TO-220AC RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 50 Lead time: 16 Weeks Container: Tube 0
Tube
  • 50 $1.0400
  • 200 $1.0100
  • 750 $0.9800
  • 1,250 $0.9700
  • 2,500 $0.9400
$0.9400 / $1.0400 Buy Now
Bristol Electronics   Min Qty: 3 200
  • 3 $2.0310
  • 11 $1.5232
  • 34 $1.2694
  • 120 $0.7616
$0.7616 / $2.0310 Buy Now
Quest Components   160
  • 1 $2.7080
  • 45 $1.0155
  • 149 $0.9478
$0.9478 / $2.7080 Buy Now
Quest Components   160
  • 1 $3.2496
  • 38 $1.7873
  • 85 $1.6248
$1.6248 / $3.2496 Buy Now
DISTI # LQA30T300
TME Diode: rectifying, THT, 300V, 30A, tube, Ifsm: 200A, TO220AC Min Qty: 1 0
  • 1 $1.4900
  • 100 $1.3200
  • 250 $1.2800
$1.2800 / $1.4900 RFQ
DISTI # LQA30T300
IBS Electronics RECTIFIER DIODE 1 PHASE 1 ELEMENT 30A 300V V(RRM) SILICON TO-220AC Min Qty: 1 Package Multiple: 1 0
  • 1 $1.4560
  • 200 $1.4140
  • 750 $1.3720
  • 1,250 $1.3580
  • 2,500 $1.3160
$1.3160 / $1.4560 Buy Now
DISTI # LQA30T300
Avnet Asia Fast / Ultrafast Diode, Qspeed, 300 V, 30 A, Single, 1.95 V, 13.7 ns, 200 A (Alt: LQA30T300) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days 0
RFQ
DISTI # LQA30T300
EBV Elektronik Fast Ultrafast Diode Qspeed 300 V 30 A Single 195 V 137 ns 200 A (Alt: LQA30T300) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days EBV - 3200
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 50 2550
  • 50 $4.6100
  • 2,550 $4.2500
$4.2500 / $4.6100 Buy Now

US Tariff Estimator: LQA30T300 by Power Integrations

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LQA30T300
Power Integrations
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LQA30T300

LQA30T300 CAD Models

  • Part Symbol

    schematic symbol

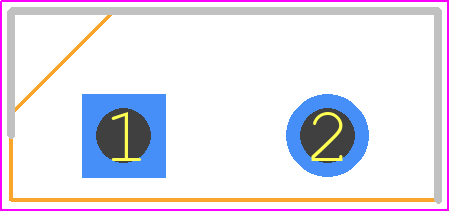

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LQA30T300 Part Data Attributes

Parametric Data
LQA30T300 Power Integrations
Buy Now Datasheet
Compare Parts:
LQA30T300 Power Integrations Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, TO-220AC, GREEN PACKAGE-2
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TO-220AC
Package Description Green Package-2
Pin Count 3
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 8 Weeks
Additional Feature Free Wheeling Diode
Application Efficiency
Case Connection Cathode
Configuration Single
Diode Element Material Silicon
Diode Type Rectifier Diode
JEDEC-95 Code TO-220AC
JESD-30 Code R-PSFM-T2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 200 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Output Current-Max 30 A
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Flange Mount
Rep Pk Reverse Voltage-Max 300 V
Reverse Recovery Time-Max 0.0137 µS
Surface Mount No
Terminal Finish Matte Tin (Sn)
Terminal Form Through-Hole
Terminal Position Single
