LT1086CM-3.6#TRPBF by:
Analog Devices Inc

Fixed Positive LDO Regulator, 3.6V, 1.5V Dropout, BIPolar, PSSO3

Part Details for LT1086CM-3.6#TRPBF by Analog Devices Inc

Results Overview of LT1086CM-3.6#TRPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LT1086CM-3.6#TRPBF Information

LT1086CM-3.6#TRPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT1086CM-3.6#TRPBF

Part # Distributor Description Stock Price Buy
DISTI # LT1086CM-3.6#TRPBF-ND
DigiKey IC REG LINEAR 3.6V 1.5A DDPAK-3 Min Qty: 750 Lead time: 10 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 750 $3.8125
$3.8125 Buy Now
DISTI # 584-1086CM-3.6TRPBF
Mouser Electronics LDO Voltage Regulators 1.5A L Drop Pos Regs Adj & Fixed 2.85V, RoHS: Compliant 0
  • 750 $3.8100
$3.8100 Order Now
Analog Devices Inc 1.5A L Drop Pos Regs Adj & Fix Min Qty: 750 Package Multiple: 750 0
  • 1 $3.5400
  • 1,000 $3.0500
$3.0500 / $3.5400 Buy Now
DISTI # LT1086CM-3.6TRP
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 750 0
  • 750 $4.2000
  • 1,000 $4.0900
  • 5,000 $3.9400
$3.9400 / $4.2000 Buy Now

US Tariff Estimator: LT1086CM-3.6#TRPBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LT1086CM-3.6#TRPBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LT1086CM-3.6#TRPBF

LT1086CM-3.6#TRPBF CAD Models

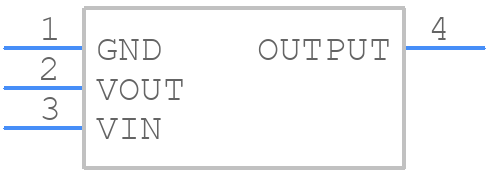

  • Part Symbol

    schematic symbol

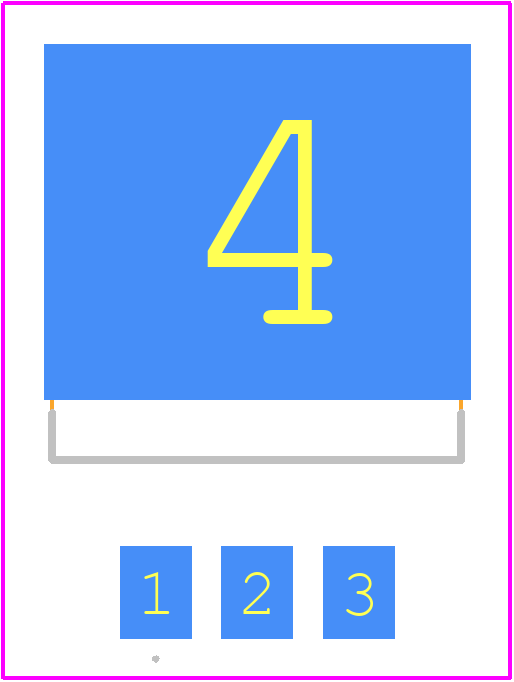

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT1086CM-3.6#TRPBF Part Data Attributes

Parametric Data
LT1086CM-3.6#TRPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT1086CM-3.6#TRPBF Analog Devices Inc Fixed Positive LDO Regulator, 3.6V, 1.5V Dropout, BIPolar, PSSO3
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Package Description Ddpak-3
Pin Count 3
Manufacturer Package Code 05-08-1460
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Adjustability Fixed
Dropout Voltage1-Max 1.5 V
Dropout Voltage1-Nom 1.3 V
Input Voltage Absolute-Max 30 V
Input Voltage-Max 18 V
Input Voltage-Min 4.75 V
JESD-30 Code R-PSSO-G3
JESD-609 Code e3
Length 10.2235 Mm
Line Regulation-Max 0.01%
Load Regulation-Max 0.025%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Output Current1-Max 1.5 A
Output Voltage1-Max 3.636 V
Output Voltage1-Min 3.5 V
Output Voltage1-Nom 3.6 V
Package Body Material Plastic/Epoxy
Package Code TO-263
Package Equivalence Code SMSIP3H,.55TB
Package Shape Rectangular
Package Style Small Outline
Packing Method Tr
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Ldo Regulator
Seated Height-Max 4.877 Mm
Surface Mount Yes
Technology Bipolar
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 2.54 Mm
Terminal Position Single
Voltage Tolerance-Max 1%
Width 8.89 Mm

Alternate Parts for LT1086CM-3.6#TRPBF

This table gives cross-reference parts and alternative options found for LT1086CM-3.6#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1086CM-3.6#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT1521IS8-5#PBF Analog Devices Inc $4.7887 Fixed Positive LDO Regulator, 5V, 0.75V Dropout, BIPolar, PDSO8 LT1086CM-3.6#TRPBF vs LT1521IS8-5#PBF
MIC39300-2.5WU-TR Microchip Technology Inc $5.4100 3.0A 1.0% Fixed Voltage LDO LT1086CM-3.6#TRPBF vs MIC39300-2.5WU-TR
AIC1722A-33CXABG Analog Integrations Corporation Check for Price Fixed Positive LDO Regulator, 3.3V, CMOS, PSSO3 LT1086CM-3.6#TRPBF vs AIC1722A-33CXABG
LT1083CK-12 Semtech Corporation Check for Price Fixed Positive LDO Regulator, 12V, 1.5V Dropout, MBFM2 LT1086CM-3.6#TRPBF vs LT1083CK-12
LT1085SMD-3.3 TT Electronics Power and Hybrid / Semelab Limited Check for Price Fixed Positive LDO Regulator, 3.3V, 1.5V Dropout, CBCC3 LT1086CM-3.6#TRPBF vs LT1085SMD-3.3
TC1186-5.0VCT Microchip Technology Inc Check for Price Fixed Positive LDO Regulator, 5V, 0.4V Dropout, CMOS, PDSO5 LT1086CM-3.6#TRPBF vs TC1186-5.0VCT
SPX2810R-L-3.3/TR Sipex Corporation Check for Price Fixed Positive LDO Regulator, 1.2V Dropout, PSSO2 LT1086CM-3.6#TRPBF vs SPX2810R-L-3.3/TR
CS-5203-3DPR3 Cherry Semiconductor Corporation Check for Price Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, PSSO3 LT1086CM-3.6#TRPBF vs CS-5203-3DPR3
SC1566IT-2.5 Semtech Corporation Check for Price Fixed Positive LDO Regulator, 2.5V, 0.6V Dropout, CMOS, PSFM3 LT1086CM-3.6#TRPBF vs SC1566IT-2.5
CS5204-2GDPR3 onsemi Check for Price Fixed Positive LDO Regulator, 1.5V, 1.2V Dropout, BIPolar, PSSO3 LT1086CM-3.6#TRPBF vs CS5204-2GDPR3
