LT1185IT#PBF Information
LT1185IT#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1185IT#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7899
|
Newark | Ldo, Adj, 3A, To-220-5, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:-35V, Input Voltage Max:-4.2V, No. Of Outputs:-, Output Voltage - Nom:-, Output Voltage Min:-2.5V, Output Voltage Max:-25V, Polarity:- Rohs Compliant: Yes |Analog Devices LT1185IT#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 50 |
|
$7.9500 / $15.1300 | Buy Now |
|
DISTI #
505-LT1185IT#PBF-ND
|
DigiKey | IC REG LIN POS/NEG ADJ 3A TO220 Min Qty: 1 Lead time: 10 Weeks Container: Tube |
28 In Stock |
|
$7.9500 / $15.1300 | Buy Now |
|
DISTI #
584-LT1185IT#PBF
|
Mouser Electronics | LDO Voltage Regulators L Drop Reg RoHS: Compliant | 368 |
|
$7.9500 / $15.1300 | Buy Now |
|
|
Analog Devices Inc | L Drop Reg Package Multiple: 50 | 506 |
|
$6.3600 / $15.1300 | Buy Now |
|
DISTI #
LT1185ITPBF
|
TME | IC: voltage regulator, LDO,adjustable, 2.5÷25V, 3A, TO220-5, THT Min Qty: 1 | 0 |
|
$11.3000 / $15.9000 | RFQ |
|
DISTI #
LT1185IT#PBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 50 | 0 |
|
$8.2100 / $9.5400 | Buy Now |
|
|
Chip Stock | LDORegulatorNeg/Pos-2.5Vto-25V2.5Vto25V3A5-Pin(5+Tab)TO-220 | 2867 |
|
RFQ |
US Tariff Estimator: LT1185IT#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1185IT#PBF
LT1185IT#PBF CAD Models
-

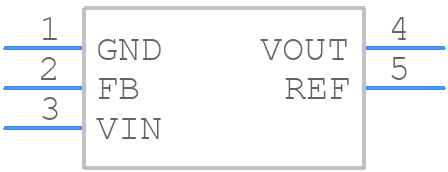

Part Symbol
-

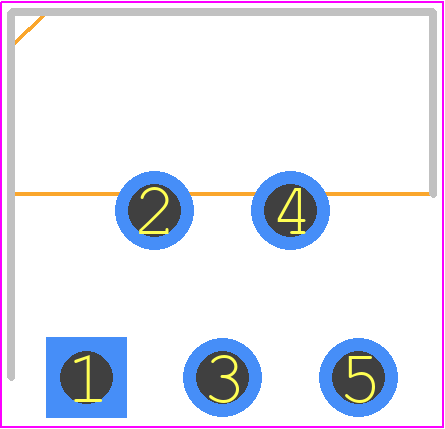

Footprint
-

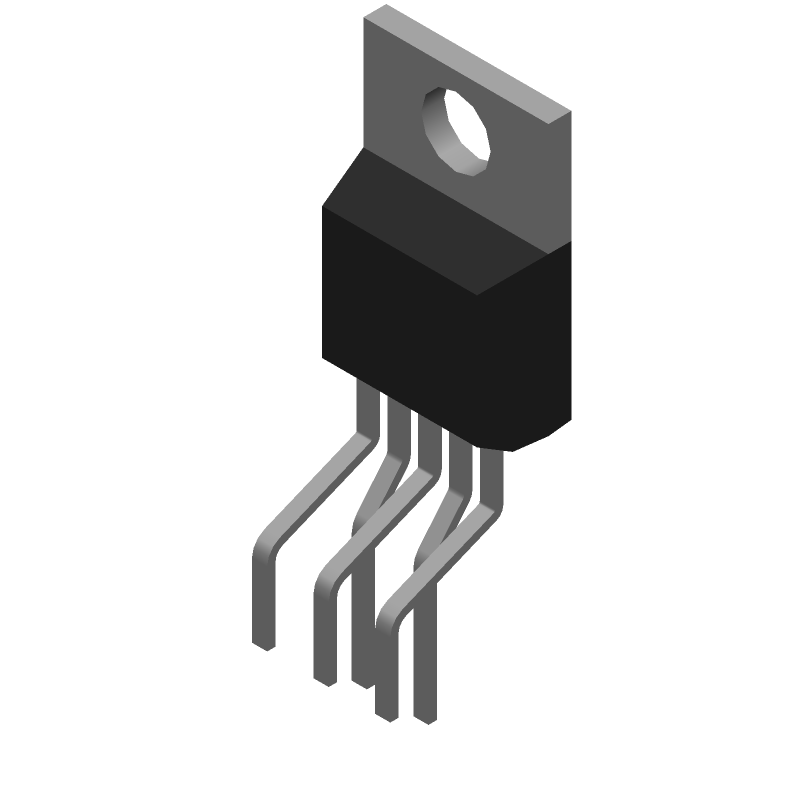

3D Model
