LT1521IST-3.3#PBF Information
LT1521IST-3.3#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1521IST-3.3#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8126
|
Newark | Ldo, Fixed, 3.3V, 0.3A, Sot-223-3, Output Type:Fixed, Input Voltage Min:4.3V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage - Nom:3.3V, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Max Output Current:300Ma Rohs Compliant: Yes |Analog Devices LT1521IST-3.3#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 166 |
|
$4.0100 / $9.0600 | Buy Now |
|
DISTI #
LT1521IST-3.3#PBF-ND
|
DigiKey | IC REG LIN 3.3V 300MA SOT-223-3 Min Qty: 1 Lead time: 10 Weeks Container: Tube |
2143 In Stock |
|
$4.0125 / $9.0600 | Buy Now |
|
DISTI #
584-LT1521IST-3.3PBF
|
Mouser Electronics | LDO Voltage Regulators 300mA L Drop Regs w/ uP Q C & SD RoHS: Compliant | 1709 |
|
$4.0100 / $9.0600 | Buy Now |
|
|
Analog Devices Inc | 300mA L Drop Regs w/ uP Q C & Package Multiple: 78 | 585 |
|
$3.2100 / $9.0600 | Buy Now |
|
|
Rochester Electronics | Fixed Positive LDO Regulator, 3.3V, 0.75V Dropout, BIPolar, PDSO4 RoHS: Compliant Status: Active Min Qty: 1 | 39 |
|
$3.3800 / $4.2200 | Buy Now |
|
DISTI #
LT1521IST-3.3PB
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 78 | 0 |
|
$4.1400 / $4.8100 | Buy Now |
|
|
Chip Stock | LT1521-300mALowDropoutRegulatorswithMicropowerQuiescentCurrentandShutdown | 5180 |
|
RFQ |
US Tariff Estimator: LT1521IST-3.3#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1521IST-3.3#PBF
LT1521IST-3.3#PBF CAD Models
-

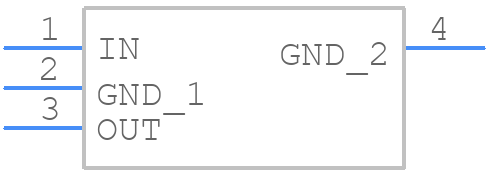

Part Symbol
-

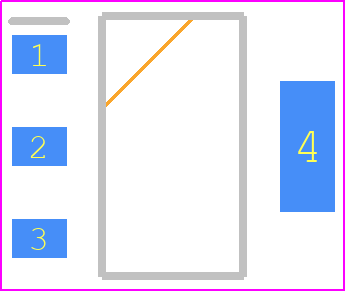

Footprint
-
