LT1585ACT-1.5#PBF by:
Analog Devices Inc

Fixed Positive LDO Regulator, 1.5V, 1.4V Dropout, BIPolar, PSFM3

Part Details for LT1585ACT-1.5#PBF by Analog Devices Inc

Results Overview of LT1585ACT-1.5#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LT1585ACT-1.5#PBF Information

LT1585ACT-1.5#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT1585ACT-1.5#PBF

Part # Distributor Description Stock Price Buy
DISTI # 505-LT1585ACT-1.5#PBF-ND
DigiKey IC REG LINEAR 1.5V 5A TO220-3 Min Qty: 100 Lead time: 10 Weeks Container: Tube Temporarily Out of Stock
  • 100 $7.2557
$7.2557 Buy Now
DISTI # 584-LT1585ACT-1.5PBF
Mouser Electronics LDO Voltage Regulators Fixed 1.5V, 4.6A & 5A L Drop, Fast Resp RoHS: Compliant 60
  • 1 $13.2800
  • 10 $11.0300
  • 50 $9.3600
  • 100 $6.3200
$6.3200 / $13.2800 Buy Now
Analog Devices Inc Fixed 1.5V, 4.6A & 5A L Drop, Package Multiple: 50 1150
  • 1 $5.8900
  • 100 $6.3245
  • 1,000 $4.8300
$4.8300 / $6.3245 Buy Now
DISTI # 35242045
Verical LDO Regulator Pos 1.5V 5A 3-Pin(3+Tab) TO-220 Tube RoHS: Exempt Min Qty: 100 Package Multiple: 100 Americas - 1100
  • 100 $5.9740
$5.9740 Buy Now
DISTI # 35242045
Verical LDO Regulator Pos 1.5V 5A 3-Pin(3+Tab) TO-220 Tube RoHS: Exempt Min Qty: 100 Package Multiple: 100 Americas - 1100
  • 100 $5.9740
$5.9740 Buy Now
DISTI # LT1585ACT-1.5PB
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 100 0
  • 100 $6.8400
  • 500 $6.6600
  • 1,000 $6.4900
  • 5,000 $6.2300
$6.2300 / $6.8400 Buy Now
DISTI # 35242045
Verical LDO Regulator Pos 1.5V 5A 3-Pin(3+Tab) TO-220 Tube RoHS: Exempt Min Qty: 100 Package Multiple: 100 Americas - 1100
  • 100 $5.9740
$5.9740 Buy Now

US Tariff Estimator: LT1585ACT-1.5#PBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LT1585ACT-1.5#PBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LT1585ACT-1.5#PBF

LT1585ACT-1.5#PBF CAD Models

  • Part Symbol

    schematic symbol

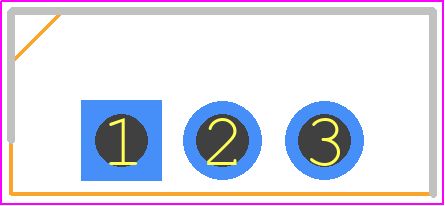

  • Footprint

    pcb footprint

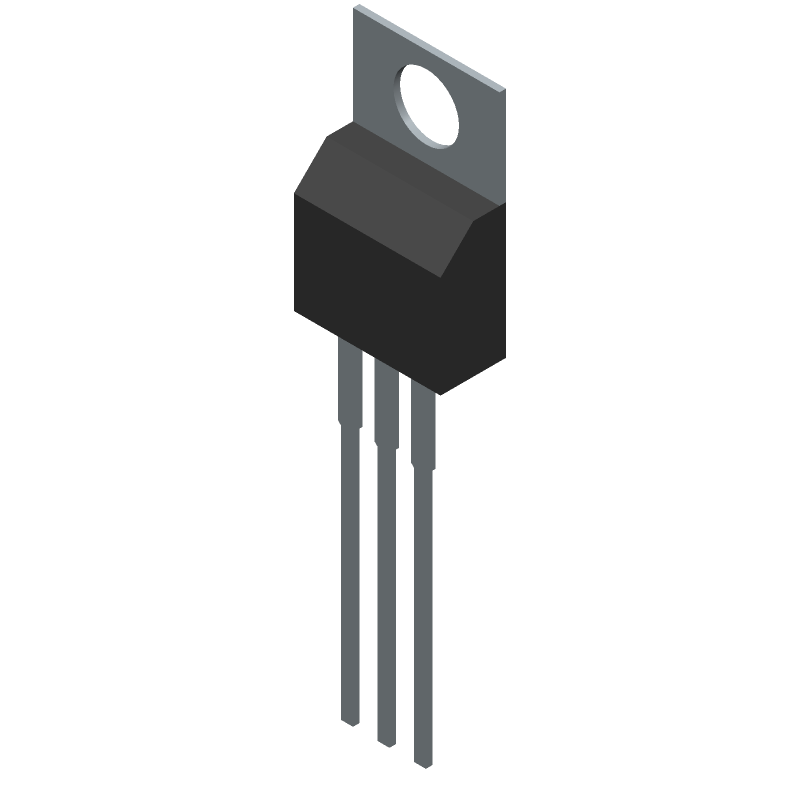

  • 3D Model
