LT1763IS8-1.8#PBF by:
Analog Devices Inc

Fixed Positive LDO Regulator, 1.8V, 0.45V Dropout, BIPolar, PDSO8

Part Details for LT1763IS8-1.8#PBF by Analog Devices Inc

Results Overview of LT1763IS8-1.8#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LT1763IS8-1.8#PBF Information

LT1763IS8-1.8#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT1763IS8-1.8#PBF

Part # Distributor Description Stock Price Buy
DISTI # 51AK8269
Newark Ldo, Fixed, 1.8V, 0.5A, Nsoic, 125Deg C, Output Type:Fixed, Input Voltage Min:1.8V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage - Nom:1.8V, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Max Output Current:500Ma Rohs Compliant: Yes |Analog Devices LT1763IS8-1.8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 19
  • 1 $7.5600
  • 10 $4.5200
  • 25 $4.2800
  • 50 $4.0900
  • 100 $3.9100
$3.9100 / $7.5600 Buy Now
DISTI # LT1763IS8-1.8#PBF-ND
DigiKey IC REG LINEAR 1.8V 500MA 8-SO Min Qty: 1 Lead time: 10 Weeks Container: Tube 8278
In Stock
  • 1 $7.5600
  • 10 $5.0970
  • 25 $4.4544
  • 100 $3.9125
$3.9125 / $7.5600 Buy Now
DISTI # 584-LT1763IS8-1.8PBF
Mouser Electronics LDO Voltage Regulators 500mA, L N, LDO uP Regs RoHS: Compliant 868
  • 1 $7.5600
  • 10 $4.4600
  • 100 $3.9100
$3.9100 / $7.5600 Buy Now
DISTI # V36:1790_06419399
Arrow Electronics LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2204 Americas - 4
  • 100 $3.7390
$3.7390 Buy Now
Analog Devices Inc 500mA, L N, LDO uP Regs Package Multiple: 100 3158
  • 1 $7.5600
  • 10 $5.0970
  • 25 $4.4544
  • 100 $3.9125
  • 1,000 $3.1300
$3.1300 / $7.5600 Buy Now
Rochester Electronics Fixed Positive LDO Regulator, 1.8V, 0.45V Dropout, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 51
  • 25 $4.1200
  • 100 $3.9100
  • 500 $3.7100
  • 1,000 $3.5000
  • 10,000 $3.3000
$3.3000 / $4.1200 Buy Now
DISTI # V36:1790_06419399
Arrow Electronics LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2204 Americas - 4
  • 100 $3.7390
$3.7390 Buy Now
DISTI # V36:1790_06419399
Arrow Electronics LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2204 Americas - 4
  • 100 $3.7390
$3.7390 Buy Now
DISTI # LT1763IS8-1.8PB
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 100 0
  • 100 $4.4400
  • 500 $4.3100
  • 1,000 $4.2000
  • 5,000 $4.0400
$4.0400 / $4.4400 Buy Now
DISTI # SMC-LT1763IS8-1.8#PBF
Sensible Micro Corporation 500Ma, L N, Ldo Up Regs RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC Container: Tubes 131
RFQ
Chip Stock LDORegulatorPos1.8V0.5AAutomotive8-PinSOICN 135
RFQ

US Tariff Estimator: LT1763IS8-1.8#PBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LT1763IS8-1.8#PBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LT1763IS8-1.8#PBF

LT1763IS8-1.8#PBF CAD Models

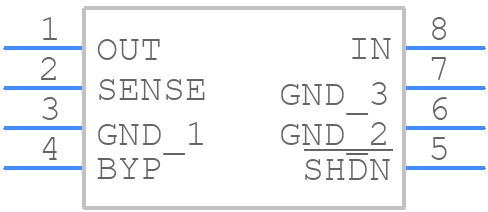

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT1763IS8-1.8#PBF Part Data Attributes

Parametric Data
LT1763IS8-1.8#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT1763IS8-1.8#PBF Analog Devices Inc Fixed Positive LDO Regulator, 1.8V, 0.45V Dropout, BIPolar, PDSO8
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Package Description 0.150 Inch, Lead Free, Plastic, Sop-8
Pin Count 8
Manufacturer Package Code 05-08-1610 (S8)
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Adjustability Fixed
Dropout Voltage1-Max 0.45 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 20 V
Input Voltage-Max 20 V
Input Voltage-Min 1.8 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 Mm
Line Regulation-Max 0.005%
Load Regulation-Max 0.018%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.5 A
Output Voltage1-Max 1.845 V
Output Voltage1-Min 1.755 V
Output Voltage1-Nom 1.8 V
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Ldo Regulator
Seated Height-Max 1.752 Mm
Surface Mount Yes
Technology Bipolar
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2.5%
Width 3.9 Mm
