Power Circuits / Linear Regulator ICs / LT3060EDC-1.5#TRMPBF
Datasheets
LT3060EDC-1.5#TRMPBF by:
Analog Devices Inc

Fixed Positive LDO Regulator, 1.5V, 0.51V Dropout, BIPolar, PDSO8

Part Details for LT3060EDC-1.5#TRMPBF by Analog Devices Inc

Results Overview of LT3060EDC-1.5#TRMPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

LT3060EDC-1.5#TRMPBF Information

LT3060EDC-1.5#TRMPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT3060EDC-1.5#TRMPBF

Part # Distributor Description Stock Price Buy
DISTI # 4407539
Farnell LDO, FIXED, 1.5V, 0.2A, -40 TO 125DEG C RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Cut Tape 450
  • 1 $6.0002
  • 10 $3.9243
  • 25 $3.3751
  • 100 $2.7590
  • 250 $2.4644
  • 500 $2.2635
$2.2635 / $6.0002 Buy Now
DISTI # 4407539RL
Farnell LDO, FIXED, 1.5V, 0.2A, -40 TO 125DEG C RoHS: Compliant Min Qty: 100 Lead time: 11 Weeks, 1 Days Container: Tape & Reel 450
  • 100 $2.7590
  • 250 $2.4644
  • 500 $2.2635
$2.2635 / $2.7590 Buy Now
DISTI # LT3060EDC-1.5#TRMPBFCT-ND
DigiKey IC REG LINEAR 1.5V 100MA 8-DFN Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 929
In Stock
  • 1 $3.7600
  • 10 $2.8360
  • 25 $2.6048
  • 100 $2.3510
  • 250 $2.2797
  • 500 $2.1569
  • 1,000 $2.0969
  • 1,500 $2.0668
  • 2,500 $2.0335
  • 3,500 $2.0140
  • 5,000 $1.9953
$1.9953 / $3.7600 Buy Now
DISTI # 584-3060EDC-1.5TMPF
Mouser Electronics LDO Voltage Regulators 45V VIN, uP, L N, 100mA L Drop, Lin Reg RoHS: Compliant 965
  • 1 $5.1700
  • 10 $3.3800
  • 25 $2.9100
  • 100 $2.3800
  • 250 $2.1200
  • 500 $1.9500
  • 2,500 $1.8600
$1.8600 / $5.1700 Buy Now
Analog Devices Inc 45V VIN, uP, L N, 100mA L Drop Package Multiple: 500 5686
  • 1 $5.1700
  • 10 $3.3740
  • 25 $2.9060
  • 100 $2.3764
  • 250 $2.1164
  • 500 $1.9564
  • 1,000 $1.8625
$1.8625 / $5.1700 Buy Now
DISTI # 35213593
Verical LDO Regulator Pos 1.5V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 5500
  • 500 $1.8429
$1.8429 Buy Now
DISTI # 35213593
Verical LDO Regulator Pos 1.5V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 5500
  • 500 $1.8429
$1.8429 Buy Now
DISTI # LT3060EDC1.5TRM
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 500 0
  • 500 $2.0500
  • 1,000 $2.0000
  • 5,000 $1.9300
$1.9300 / $2.0500 Buy Now
DISTI # 35213593
Verical LDO Regulator Pos 1.5V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 5500
  • 500 $1.8429
$1.8429 Buy Now

US Tariff Estimator: LT3060EDC-1.5#TRMPBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LT3060EDC-1.5#TRMPBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LT3060EDC-1.5#TRMPBF

LT3060EDC-1.5#TRMPBF CAD Models

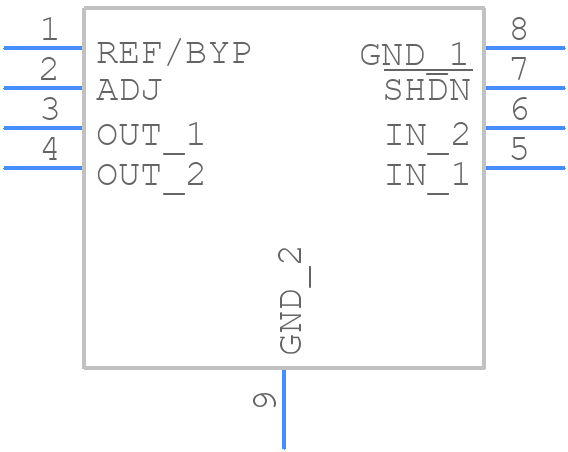

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT3060EDC-1.5#TRMPBF Part Data Attributes

Parametric Data
LT3060EDC-1.5#TRMPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT3060EDC-1.5#TRMPBF Analog Devices Inc Fixed Positive LDO Regulator, 1.5V, 0.51V Dropout, BIPolar, PDSO8
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Package Description 2 X 2 Mm, 0.75 Mm Height, Lead Free, Plastic, Dfn-8
Pin Count 8
Manufacturer Package Code 05-08-1719
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Adjustability Fixed
Dropout Voltage1-Max 0.51 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 50 V
Input Voltage-Max 45 V
Input Voltage-Min 2.1 V
JESD-30 Code S-PDSO-N8
JESD-609 Code e3
Length 2 Mm
Line Regulation-Max 0.0042%
Load Regulation-Max 0.012%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 1.53 V
Output Voltage1-Min 1.47 V
Output Voltage1-Nom 1.5 V
Package Body Material Plastic/Epoxy
Package Code HVSON
Package Equivalence Code SOLCC8,.08,18
Package Shape Square
Package Style Small Outline, Heat Sink/Slug, Very Thin Profile
Packing Method Tr
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Ldo Regulator
Screening Level Aec-Q100
Seated Height-Max 0.8 Mm
Surface Mount Yes
Technology Bipolar
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.45 Mm
Terminal Position Dual
Voltage Tolerance-Max 2%
Width 2 Mm

Alternate Parts for LT3060EDC-1.5#TRMPBF

This table gives cross-reference parts and alternative options found for LT3060EDC-1.5#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3060EDC-1.5#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT3060EDC-1.5#TRPBF Analog Devices Inc Check for Price Fixed Positive LDO Regulator, 1.5V, 0.51V Dropout, BIPolar, PDSO8 LT3060EDC-1.5#TRMPBF vs LT3060EDC-1.5#TRPBF
LT3060IDC-1.5#TRPBF Analog Devices Inc Check for Price Fixed Positive LDO Regulator, 1.5V, 0.51V Dropout, BIPolar, PDSO8 LT3060EDC-1.5#TRMPBF vs LT3060IDC-1.5#TRPBF
LT3060IDC-1.5#TRMPBF Analog Devices Inc Check for Price Fixed Positive LDO Regulator, 1.5V, 0.51V Dropout, BIPolar, PDSO8 LT3060EDC-1.5#TRMPBF vs LT3060IDC-1.5#TRMPBF
equivalents icon

LT3060EDC-1.5#TRMPBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LT3060 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.

  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. Additionally, avoid using capacitors with high ESL and ESR values.

  • The maximum input voltage that the LT3060 can handle is 15V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.

  • The LT3060 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.

  • The output voltage ripple of the LT3060 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
