LT3652IDD#PBF Information
LT3652IDD#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3652IDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5578
|
Newark | Battery Charger, Li-Ion/Li-Pol, 2A, Dfn, Battery Type:Lead Acid, Lifepo4, Li-Ion, Li-Pol, Input Voltage:32V, Battery Charge Voltage:14.4V, Charge Current:2A, Ic Case/Package:Dfn-Ep, No. Of Pins:12Pins, No. Of Cells:- Rohs Compliant: Yes |Analog Devices LT3652IDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 124 |
|
$5.0300 / $10.7100 | Buy Now |
|
DISTI #
LT3652IDD#PBF-ND
|
DigiKey | IC BATT CHG MULTI-CHEM 12DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
867 In Stock |
|
$5.0250 / $10.7100 | Buy Now |
|
DISTI #
584-LT3652IDD#PBF
|
Mouser Electronics | Battery Management Pwr Track 2A Bat Chr for Solar Pwr RoHS: Compliant | 3045 |
|
$5.0200 / $10.7100 | Buy Now |
|
|
Analog Devices Inc | Pwr Track 2A Bat Chr for Solar Package Multiple: 121 | 537 |
|
$4.0200 / $10.7100 | Buy Now |
|
DISTI #
35213235
|
Verical | Switching Battery Charger Lead-Acid/Li-FePO4/Li-Ion/Li-Pol 2000mA 14.4V 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 121 Package Multiple: 121 | Americas - 605 |
|
$4.9722 | Buy Now |
|
|
Rochester Electronics | Power Supply Support Circuit, Adjustable, 1 Channel, BIPolar, PDSO12 RoHS: Compliant Status: Active Min Qty: 1 | 6 |
|
$4.2300 / $5.2900 | Buy Now |
|
DISTI #
35213235
|
Verical | Switching Battery Charger Lead-Acid/Li-FePO4/Li-Ion/Li-Pol 2000mA 14.4V 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 121 Package Multiple: 121 | Americas - 605 |
|
$4.9722 | Buy Now |
|
DISTI #
LT3652IDDPBF
|
TME | IC: PMIC, battery charging controller, Li-Ion/Polymer, Iout: 2A Min Qty: 121 | 0 |
|
$5.4700 | RFQ |
|
DISTI #
LT3652IDD#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 121 | 0 |
|
$5.1900 / $5.6900 | Buy Now |
|
DISTI #
35213235
|
Verical | Switching Battery Charger Lead-Acid/Li-FePO4/Li-Ion/Li-Pol 2000mA 14.4V 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 121 Package Multiple: 121 | Americas - 605 |
|
$4.9722 | Buy Now |
US Tariff Estimator: LT3652IDD#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT3652IDD#PBF
LT3652IDD#PBF CAD Models
-

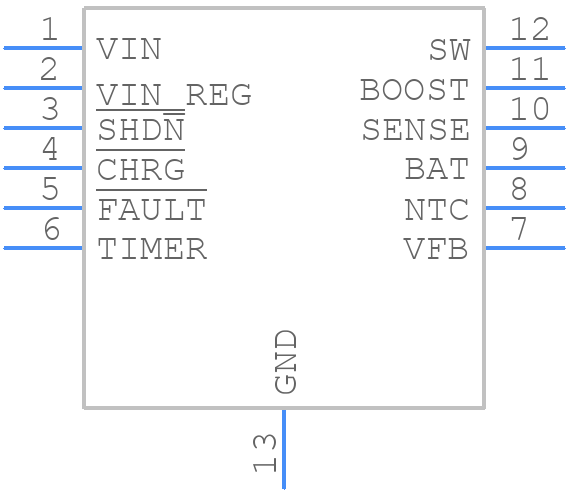

Part Symbol
-
Footprint
-

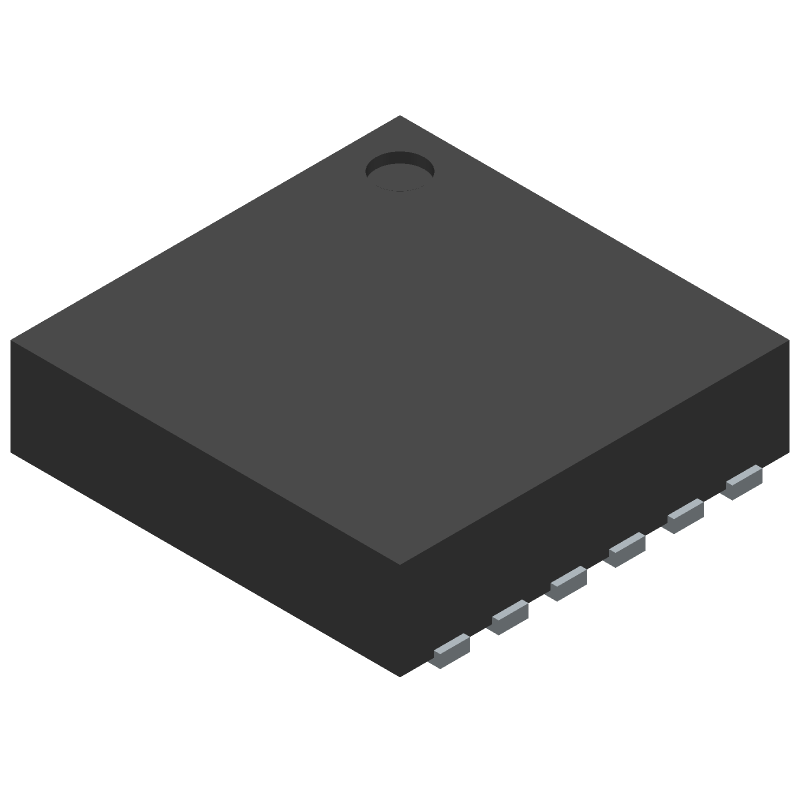

3D Model
