LT4356HS-2#PBF Information
LT4356HS-2#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT4356HS-2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8915
|
Newark | Hot-Swap Ctrl, -40 To 125Deg C, Soic-16, No. Of Channels:-, Supply Voltage Min:4V, Supply Voltage Max:80V, Ic Case/Package:Soic, No. Of Pins:16Pins, Power Switch:-, Ic Mounting:Surface Mount, Ic Function:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT4356HS-2#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 27 |
|
$4.6100 / $10.0500 | Buy Now |
|
DISTI #
505-LT4356HS-2#PBF-ND
|
DigiKey | IC SURGE STOPPER ADJ 16-SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
509 In Stock |
|
$4.6125 / $10.0500 | Buy Now |
|
DISTI #
584-LT4356HS-2#PBF
|
Mouser Electronics | Board Mount Surge Protectors Surge Stopper RoHS: Compliant | 6930 |
|
$4.6100 / $10.0500 | Buy Now |
|
|
Analog Devices Inc | Surge Stopper Package Multiple: 50 | 1052 |
|
$3.6900 / $10.0500 | Buy Now |
|
DISTI #
84359021
|
Verical | Surge Stopper 16-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 | Americas - 900 |
|
$4.5640 | Buy Now |
|
DISTI #
LT4356HS-2#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 100 | 0 |
|
$4.7600 / $5.2300 | Buy Now |
|
|
Chip Stock | HighVoltageSurgeStopper,4.5Vto80V,SOIC-16 | 5010 |
|
RFQ |
US Tariff Estimator: LT4356HS-2#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT4356HS-2#PBF
LT4356HS-2#PBF CAD Models
-

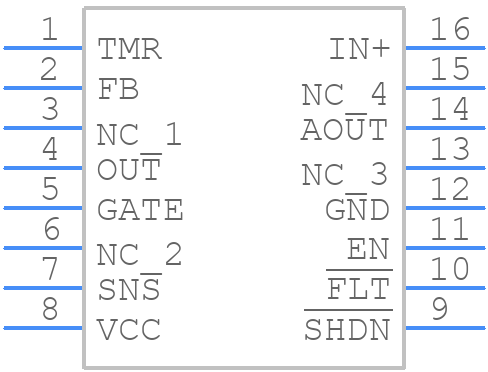

Part Symbol
-

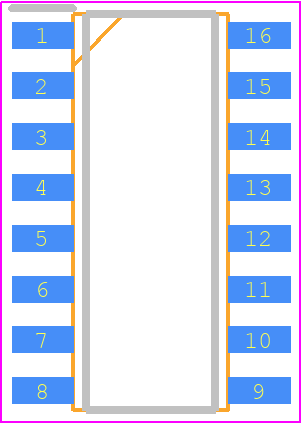

Footprint
-
