Part Details for LTC1046IS8#PBF by Analog Devices Inc
Results Overview of LTC1046IS8#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC1046IS8#PBF Information
LTC1046IS8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC1046IS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6013
|
Newark | Dc/Dc Charge Pump Conv, Inv, Adj, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Output Current Max:50Ma, Fixed Output Voltage Nom:-, Adjustable Output Voltage Min:-1.5V, Adjustable Output Voltage Max:-6V, Input Voltage Min:1.5V Rohs Compliant: Yes |Analog Devices LTC1046IS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 23 |
|
$6.0300 / $12.2900 | Buy Now |
|
DISTI #
LTC1046IS8#PBF-ND
|
DigiKey | IC REG CHARGE PUMP INV 50MA 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
912 In Stock |
|
$6.0375 / $12.2900 | Buy Now |
|
DISTI #
584-LTC1046IS8#PBF
|
Mouser Electronics | Switching Voltage Regulators Inductorless 5V to 5V Converter RoHS: Compliant | 463 |
|
$6.0300 / $12.2900 | Buy Now |
|
|
Analog Devices Inc | Inductorless 5V to -5V Conv Package Multiple: 100 | 103 |
|
$4.8300 / $12.2900 | Buy Now |
|
DISTI #
LTC1046IS8#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 100 | 0 |
|
$6.2300 / $6.8400 | Buy Now |
|
|
Chip Stock | ChargePumpINV/STPUP/STPDN3Vto12V/-1.5Vto-6V/0.75Vto3V50mA8-PinSOICN | 3600 |
|
RFQ |
US Tariff Estimator: LTC1046IS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1046IS8#PBF
LTC1046IS8#PBF CAD Models
-

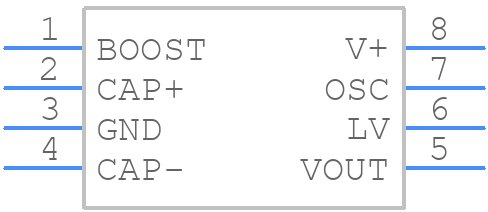

Part Symbol
-
Footprint
-

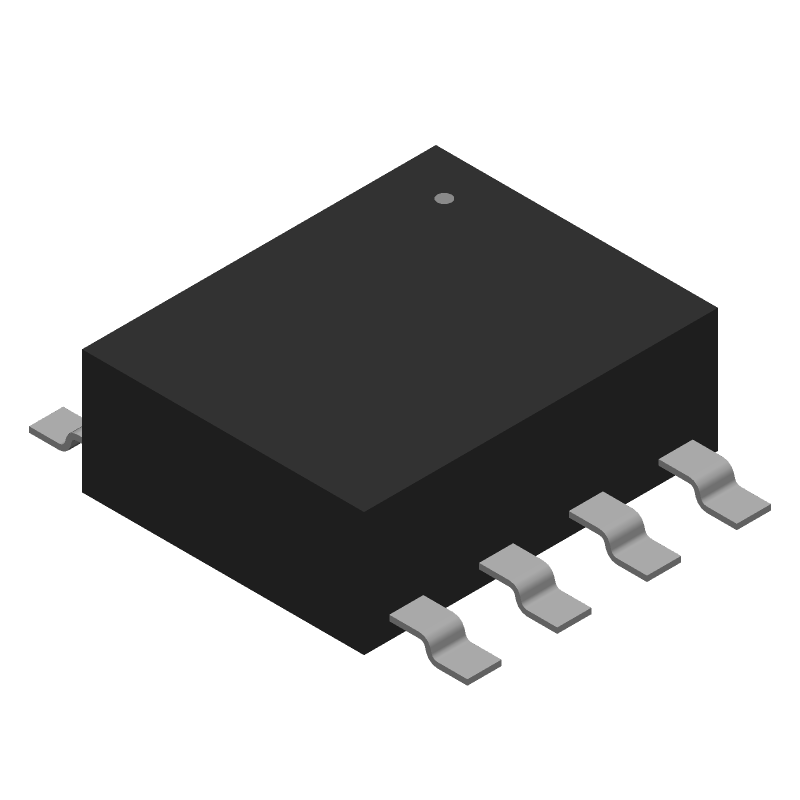

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC1046IS8#PBF Part Data Attributes
|
|
LTC1046IS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1046IS8#PBF
Analog Devices Inc
Switched Capacitor Converter, 0.05A, 30kHz Switching Freq-Max, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switched Capacitor Converter | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 1.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.05 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 0.3 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Doubler Inverter | |
| Switching Frequency-Max | 30 Khz | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for LTC1046IS8#PBF
This table gives cross-reference parts and alternative options found for LTC1046IS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1046IS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1046CS8#PBF | Analog Devices Inc | $5.5946 | Switched Capacitor Converter, 0.05A, 30kHz Switching Freq-Max, CMOS, PDSO8 | LTC1046IS8#PBF vs LTC1046CS8#PBF |
| LTC1046CS8#TRPBF | Analog Devices Inc | Check for Price | Switched Capacitor Converter, 0.05A, 30kHz Switching Freq-Max, CMOS, PDSO8 | LTC1046IS8#PBF vs LTC1046CS8#TRPBF |
| LTC1046CS8 | Analog Devices Inc | Check for Price | Switched Capacitor Converter, 0.05A, 30kHz Switching Freq-Max, CMOS, PDSO8 | LTC1046IS8#PBF vs LTC1046CS8 |
LTC1046IS8#PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LTC1046IS8#PBF is -40°C to 85°C.
-
The LTC1046IS8#PBF requires a single 5V supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean and stable power supply.
-
The maximum clock frequency supported by the LTC1046IS8#PBF is 1.5 MHz.
-
The LTC1046IS8#PBF can be configured for 8-bit or 10-bit mode by setting the MODE pin high or low, respectively, during power-up.
-
The typical conversion time for the LTC1046IS8#PBF is 13.5 μs for 8-bit mode and 27 μs for 10-bit mode.
