LTC2980IY#PBF Information
LTC2980IY#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC2980IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2746
|
Newark | Power Manager, 16 Channel, Bga-144, Ic Type:Power System Manager, Input Voltage Min:4.5V, Input Voltage Max:15V, Pwm Input Frequency:110Khz, Ic Case/Package:Bga, No. Of Pins:144Pins, External Input Capacitance:10Pf, Product Range:-Rohs Compliant: Yes |Analog Devices LTC2980IY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$29.8000 / $42.2000 | Buy Now |
|
DISTI #
505-LTC2980IY#PBF-ND
|
DigiKey | IC SYSTEM MGR PMBUS 16CH 144BGA Min Qty: 1 Lead time: 20 Weeks Container: Tray | Temporarily Out of Stock |
|
$32.0722 / $45.2200 | Buy Now |
|
DISTI #
584-LTC2980IY#PBF
|
Mouser Electronics | Current & Power Monitors & Regulators 16-Ch PMBus Pwr S Manager RoHS: Compliant | 0 |
|
$28.6800 / $40.9700 | Order Now |
|
|
Analog Devices Inc | 16-Ch PMBus Pwr S Manager Package Multiple: 168 | 0 |
|
$22.9400 / $40.9700 | Buy Now |
|
DISTI #
LTC2980IY#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 168 | 0 |
|
$29.6200 / $32.5000 | Buy Now |
US Tariff Estimator: LTC2980IY#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2980IY#PBF
LTC2980IY#PBF CAD Models
-

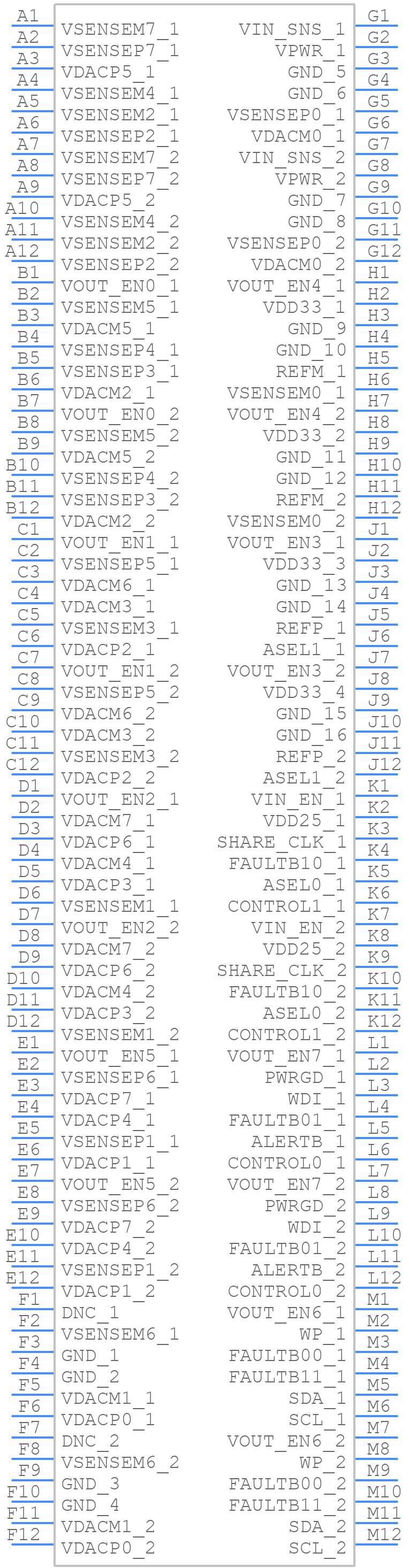

Part Symbol
-

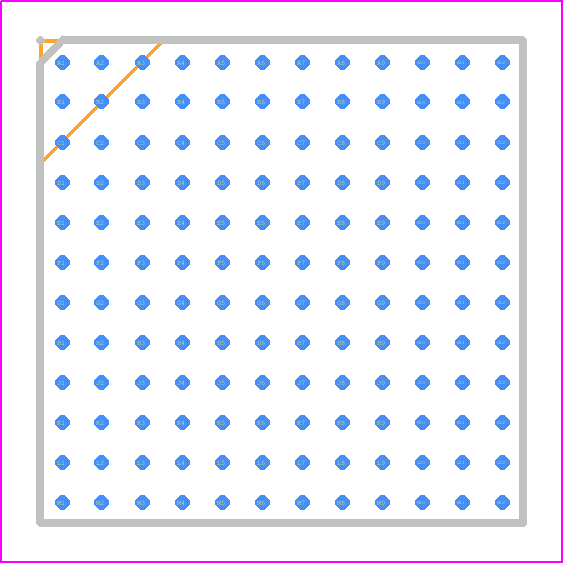

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2980IY#PBF Part Data Attributes
|
|
LTC2980IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2980IY#PBF
Analog Devices Inc
Voltage Supervisor/Reset IC, Adjustable, 16 Channel, CMOS, PBGA144
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lbga, Bga144,12x12,40 | |
| Pin Count | 144 | |
| Manufacturer Package Code | 05-08-1967 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Voltage Supervisor/Reset Ic | |
| JESD-30 Code | S-PBGA-B144 | |
| JESD-609 Code | e1 | |
| Length | 12 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LBGA | |
| Package Equivalence Code | BGA144,12X12,40 | |
| Package Shape | Square | |
| Package Style | Grid Array, Low Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.34 Mm | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 1 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 Mm |
