LTC4002EDD-4.2#PBF Information
LTC4002EDD-4.2#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4002EDD-4.2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7069
|
Newark | Battery Charger, Li-Ion/Li-Pol, 3A, Dfn, Battery Type:Li-Ion, Li-Pol, Input Voltage:22V, Battery Charge Voltage:4.2V, Charge Current:3A, Ic Case/Package:Dfn-Ep, No. Of Pins:10Pins, No. Of Cells:1Cells, Operating Temperature Min:0°Crohs Compliant: Yes |Analog Devices LTC4002EDD-4.2#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
LTC4002EDD-4.2#PBF-ND
|
DigiKey | IC BATT CHG LI-ION 1CELL 10DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
7819 In Stock |
|
$3.2375 / $6.5800 | Buy Now |
|
DISTI #
584-C4002EDD-4.2PBF
|
Mouser Electronics | Battery Management St&alone Li-Ion Switch Mode Bat Chr RoHS: Compliant | 339 |
|
$3.2300 / $7.2600 | Buy Now |
|
DISTI #
V99:2348_06479552
|
Arrow Electronics | Switching Battery Charger Li-Ion/Li-Pol 3000mA 4.2V 10-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2223 | Americas - 12 |
|
$3.2870 | Buy Now |
|
|
Analog Devices Inc | St&alone Li-Ion Switch Mode Ba Package Multiple: 121 | 2654 |
|
$2.5900 / $6.5800 | Buy Now |
|
DISTI #
V99:2348_06479552
|
Arrow Electronics | Switching Battery Charger Li-Ion/Li-Pol 3000mA 4.2V 10-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2223 | Americas - 12 |
|
$3.2870 | Buy Now |
|
DISTI #
V99:2348_06479552
|
Arrow Electronics | Switching Battery Charger Li-Ion/Li-Pol 3000mA 4.2V 10-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2223 | Americas - 12 |
|
$3.2870 | Buy Now |
|
DISTI #
LTC4002EDD-4.2P
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 121 | 0 |
|
$3.3500 / $3.6700 | Buy Now |
US Tariff Estimator: LTC4002EDD-4.2#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC4002EDD-4.2#PBF

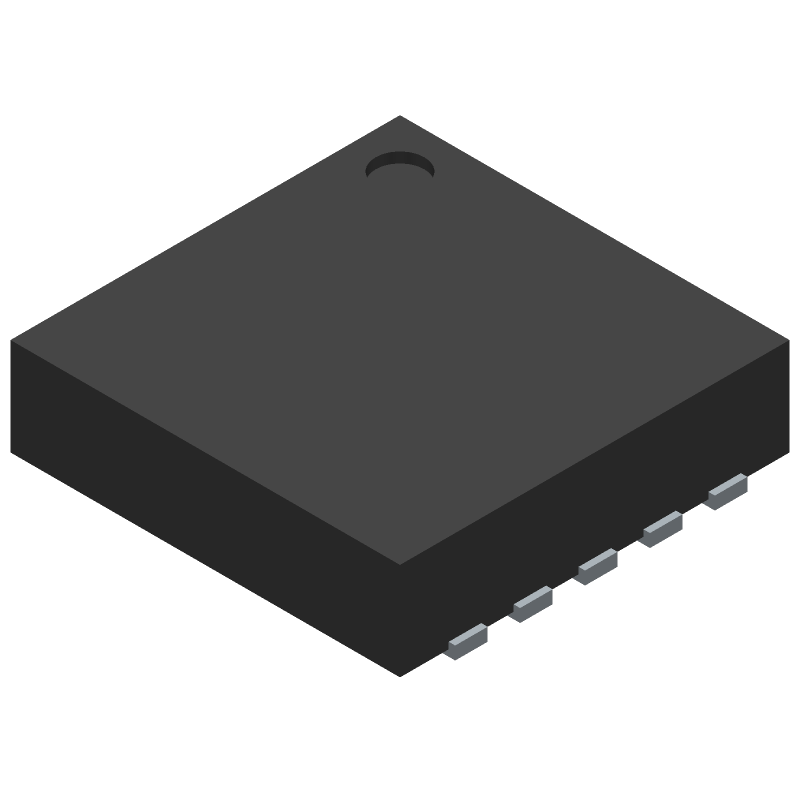

LTC4002EDD-4.2#PBF CAD Models
-

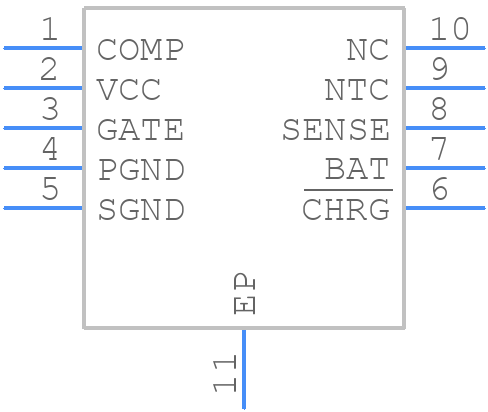

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC4002EDD-4.2#PBF Part Data Attributes
|
|
LTC4002EDD-4.2#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC4002EDD-4.2#PBF
Analog Devices Inc
Adjustable, 1 Channel, +4.2V, CMOS, PDSO10
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvson, | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1699 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Https://Www.Analog.Com/En/Products/Ltc4002.Html#Product-Samplebuy | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Linear Battery Charger | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Max (Vsup) | 22 V | |
| Supply Voltage-Min (Vsup) | 4.7 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +4.2v | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
