LTC4162IUFD-L42M#PBF Information
LTC4162IUFD-L42M#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4162IUFD-L42M#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC4162IUFD-L42M#PBF-ND
|
DigiKey | IC BATT MON LI-ION 1-8CELL 28QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
52 In Stock |
|
$4.2000 / $9.3800 | Buy Now |
|
DISTI #
584-4162IUFDL42MPB
|
Mouser Electronics | Battery Management LIon Step-Down Batt Chargr w/ PowrPath RoHS: Compliant | 61 |
|
$4.2000 / $9.3800 | Buy Now |
|
|
Analog Devices Inc | LIon Step-Down Batt Chargr w/ Package Multiple: 73 | 3734 |
|
$3.3600 / $9.3800 | Buy Now |
|
DISTI #
82745775
|
Verical | Switching Battery Charger Li-FePO4/Li-Ion/Li-Pol 3200mA 35V 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2150 | Americas - 26 |
|
$4.3700 | Buy Now |
|
DISTI #
82745775
|
Verical | Switching Battery Charger Li-FePO4/Li-Ion/Li-Pol 3200mA 35V 28-Pin QFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2150 | Americas - 26 |
|
$4.3700 | Buy Now |
|
DISTI #
LTC4162IUL42MPB
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 146 | 0 |
|
$4.3400 / $4.7600 | Buy Now |
|
DISTI #
82745775
|
Verical | Switching Battery Charger Li-FePO4/Li-Ion/Li-Pol 3200mA 35V 28-Pin QFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2150 | Americas - 26 |
|
$4.3700 | Buy Now |
US Tariff Estimator: LTC4162IUFD-L42M#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC4162IUFD-L42M#PBF
LTC4162IUFD-L42M#PBF CAD Models
-

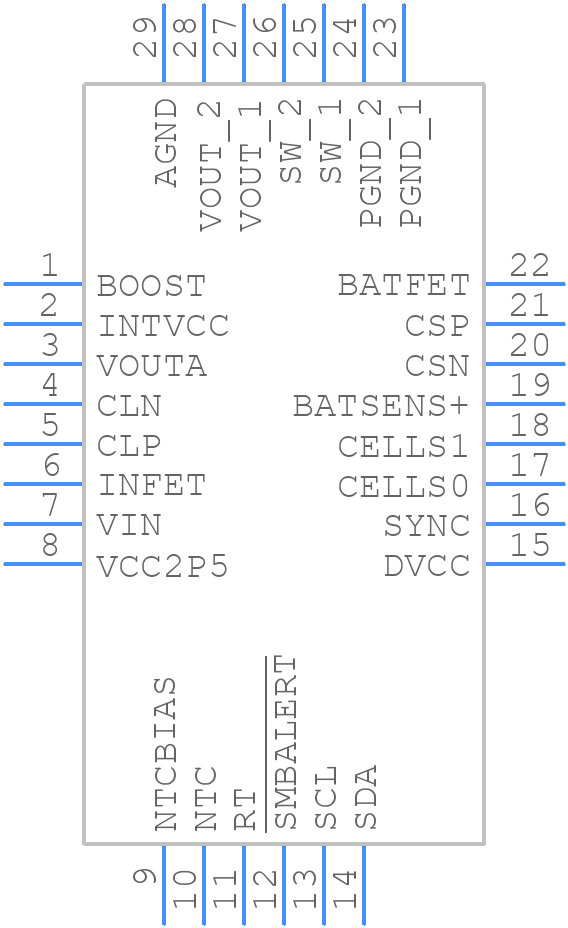

Part Symbol
-
Footprint
-

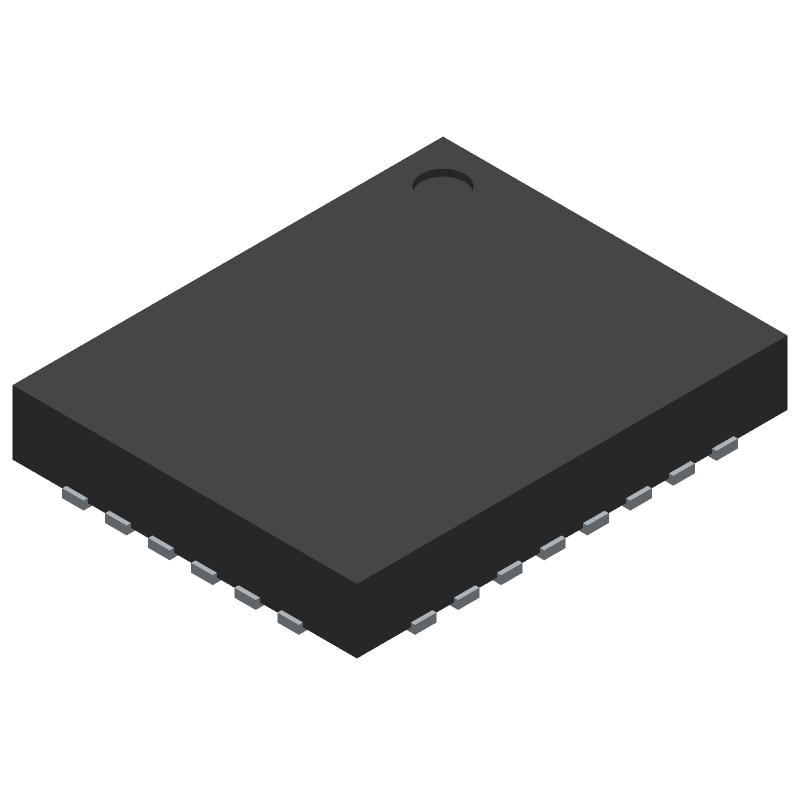

3D Model
