Part Details for LTC4300-1CMS8#TRPBF by Analog Devices Inc
Results Overview of LTC4300-1CMS8#TRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Transportation and Logistics
Telecommunications
LTC4300-1CMS8#TRPBF Information
LTC4300-1CMS8#TRPBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4300-1CMS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC4300-1CMS8#TRPBFTR-ND
|
DigiKey | IC ACCELERATOR I2C HOTSWAP 8MSOP Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.8855 | Buy Now |
|
DISTI #
584-C4300-1CMS8TRPBF
|
Mouser Electronics | Interface - Signal Buffers, Repeaters Hot Swappable 2-Wire Bus Bufs RoHS: Compliant | 0 |
|
$2.6600 / $6.9100 | Order Now |
|
|
Analog Devices Inc | Hot Swappable 2-Wire Bus Bufs Min Qty: 2500 Package Multiple: 2500 | 7500 |
|
$2.1300 / $6.9400 | Buy Now |
|
DISTI #
LTC43001CMS8TRP
|
Richardson RFPD | INTERFACE - MISCELLANEOUS RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.7500 / $2.8600 | Buy Now |
|
|
Vyrian | Peripheral ICs | 8761 |
|
RFQ |
US Tariff Estimator: LTC4300-1CMS8#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC4300-1CMS8#TRPBF
LTC4300-1CMS8#TRPBF CAD Models
-

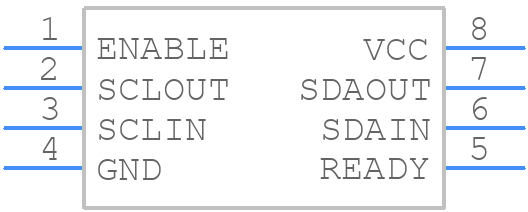

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC4300-1CMS8#TRPBF Part Data Attributes
|
|
LTC4300-1CMS8#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC4300-1CMS8#TRPBF
Analog Devices Inc
Fixed, 1 Channel, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Package Description | Tssop, | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Hot Swap Controller | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for LTC4300-1CMS8#TRPBF
This table gives cross-reference parts and alternative options found for LTC4300-1CMS8#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC4300-1CMS8#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC4300-1CMS8 | Linear Technology | Check for Price | Fixed, 1 Channel, PDSO8 | LTC4300-1CMS8#TRPBF vs LTC4300-1CMS8 |
LTC4300-1CMS8#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC4300-1CMS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device near the hot swap controller and to use a low-ESR capacitor for the VCC bypass.
-
To ensure reliable hot swap operation, make sure to follow the recommended circuit configuration, use a suitable hot swap controller, and ensure that the VCC and VIN supplies are properly decoupled. Additionally, the device should be operated within its recommended operating conditions, and the hot swap controller should be configured to limit the inrush current.
-
The maximum allowed voltage on the SCL and SDA pins of the LTC4300-1CMS8 is 5.5V, which is the maximum rating for the I2C bus. Exceeding this voltage can damage the device.
-
Yes, the LTC4300-1CMS8 can operate with a supply voltage as low as 2.7V, but the device's performance and functionality may be affected. It's recommended to use a 5V supply voltage for optimal performance.
-
To troubleshoot issues with the LTC4300-1CMS8, start by verifying the power supply and decoupling, then check the hot swap controller configuration and the I2C bus signals using an oscilloscope or logic analyzer. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
