LTC6811IG-1#PBF Information
LTC6811IG-1#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC6811IG-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3986
|
Newark | Battery Monitor, Multi-Chemistry, 55V, Battery Type:Multi-Chemistry, Interfaces:I2C, Spi, No. Of Cells:12Cells, Supply Voltage Min:11V, Supply Voltage Max:55V, Ic Case/Package:Ssop, No. Of Pins:48Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LTC6811IG-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 36 |
|
$12.1500 / $20.9200 | Buy Now |
|
DISTI #
505-LTC6811IG-1#PBF-ND
|
DigiKey | IC BATT MON MULTI 1-12C 48SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
893 In Stock |
|
$12.1500 / $20.9200 | Buy Now |
|
DISTI #
584-LTC6811IG-1#PBF
|
Mouser Electronics | Battery Management Multicell Bat Mon s RoHS: Compliant | 357 |
|
$12.1500 / $17.7800 | Buy Now |
|
|
Analog Devices Inc | Multicell Bat Mon s Package Multiple: 37 | 9873 |
|
$9.7200 / $17.7800 | Buy Now |
|
DISTI #
42660826
|
Verical | Battery Monitoring 5.7V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 9694 |
|
$12.0223 | Buy Now |
|
DISTI #
42660826
|
Verical | Battery Monitoring 5.7V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 9694 |
|
$12.0223 | Buy Now |
|
DISTI #
LTC6811IG-1#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 37 | 0 |
|
$12.5500 / $14.5800 | Buy Now |
|
DISTI #
42660826
|
Verical | Battery Monitoring 5.7V 48-Pin SSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 9694 |
|
$12.0223 | Buy Now |
|
|
Chip Stock | 12ChannelMulticellBatteryMonitorwithDaisyChainInterface,Generation4 | 4240 |
|
RFQ |
US Tariff Estimator: LTC6811IG-1#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6811IG-1#PBF
LTC6811IG-1#PBF CAD Models
-

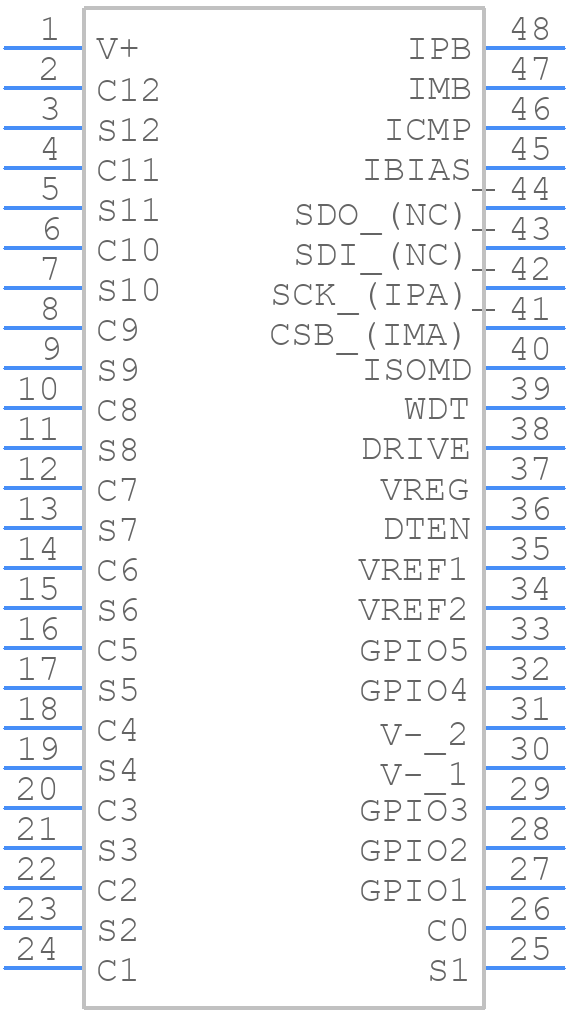

Part Symbol
-

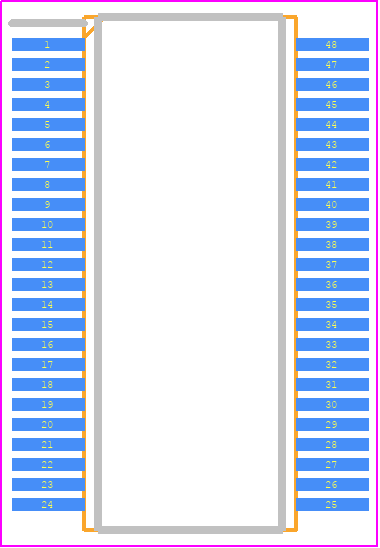

Footprint
-

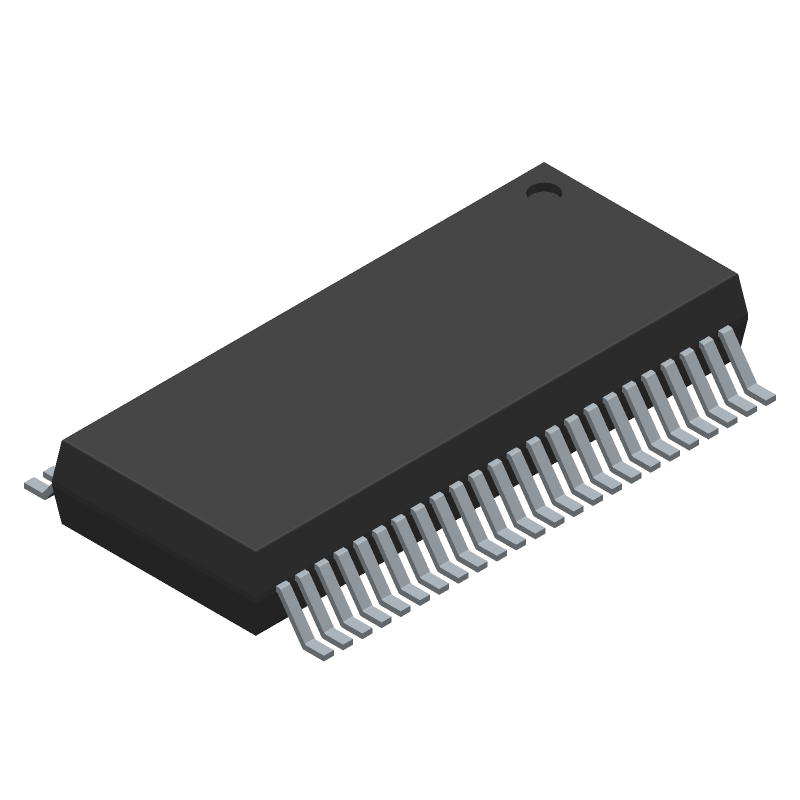

3D Model
