LTC6908CS6-1#TRMPBF by:
Analog Devices Inc

CMOS Output Clock Oscillator, 0.05MHz Min, 10MHz Max

Part Details for LTC6908CS6-1#TRMPBF by Analog Devices Inc

Results Overview of LTC6908CS6-1#TRMPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Aerospace and Defense

LTC6908CS6-1#TRMPBF Information

LTC6908CS6-1#TRMPBF by Analog Devices Inc is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for LTC6908CS6-1#TRMPBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK4020
Newark Osc, Spread Spectrum, Cmos, 50Khz-10Mhz, Frequency Nom:-, Oscillator Output Compatibility:Cmos, Frequency Stability +/-:40Ppm, Oscillator Case:Tsot-23, Supply Voltage Nom:5V, Product Range:Ltc6908-1 Series, Spread Spectrum Mode:- Rohs Compliant: Yes |Analog Devices LTC6908CS6-1#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 238
  • 1 $2.4200
  • 10 $2.4200
  • 25 $2.4200
  • 50 $2.4200
  • 100 $2.4200
  • 250 $2.4200
  • 500 $2.4200
$2.4200 Buy Now
DISTI # 505-LTC6908CS6-1#TRMPBFCT-ND
DigiKey IC OSC SILICON PROG TSOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 761
In Stock
  • 1 $5.0100
  • 10 $3.8140
  • 25 $3.5164
  • 100 $3.1888
  • 250 $3.0326
  • 500 $2.9385
  • 1,000 $2.8610
  • 1,500 $2.8222
  • 2,500 $2.7792
  • 3,500 $2.7541
$2.7541 / $5.0100 Buy Now
DISTI # 584-C6908CS6-1TRMPBF
Mouser Electronics Silicon Oscillators 2x Out Osc w/ SS Mod RoHS: Compliant 477
  • 1 $4.9600
  • 10 $3.4000
  • 50 $3.3300
  • 100 $3.0900
  • 250 $2.7700
  • 500 $2.5600
$2.5600 / $4.9600 Buy Now
Analog Devices Inc 2x Out Osc w/ SS Mod Package Multiple: 500 153
  • 1 $6.5200
  • 10 $4.3120
  • 25 $3.7364
  • 100 $3.0859
  • 250 $2.7665
  • 500 $2.5625
  • 1,000 $2.0500
$2.0500 / $6.5200 Buy Now
Bristol Electronics   Min Qty: 2 197
  • 2 $4.4800
  • 7 $2.9120
  • 19 $2.2400
  • 57 $2.0908
  • 121 $1.9412
$1.9412 / $4.4800 Buy Now
Quest Components CMOS OUTPUT CLOCK OSCILLATOR, 0.05MHZ MIN, 10MHZ MAX 157
  • 1 $6.0000
  • 7 $3.0000
  • 68 $2.8000
$2.8000 / $6.0000 Buy Now
DISTI # LTC6908CS61TRMP
Richardson RFPD LOGIC AND TIMING RoHS: Compliant Min Qty: 500 0
  • 500 $2.8300
  • 1,000 $2.7500
  • 5,000 $2.6400
$2.6400 / $2.8300 Buy Now

US Tariff Estimator: LTC6908CS6-1#TRMPBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LTC6908CS6-1#TRMPBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LTC6908CS6-1#TRMPBF

LTC6908CS6-1#TRMPBF CAD Models

  • Part Symbol

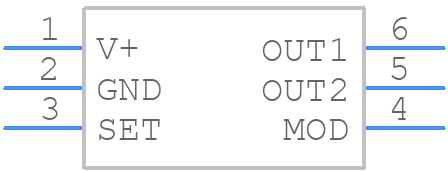

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC6908CS6-1#TRMPBF Part Data Attributes

Parametric Data
LTC6908CS6-1#TRMPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC6908CS6-1#TRMPBF Analog Devices Inc CMOS Output Clock Oscillator, 0.05MHz Min, 10MHz Max
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Package Description Plastic, Tsot-23
Pin Count 6
Manufacturer Package Code 05-08-1636
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Additional Feature Tape And Reel
Fall Time-Max 9 Ns
Frequency Adjustment-Mechanical No
Frequency Stability 40%
JESD-609 Code e3
Mounting Feature Surface Mount
Operating Frequency-Max 10 Mhz
Operating Frequency-Min 0.05 Mhz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type Cmos
Output Load 5 Pf
Physical Dimension 2.9mm X 1.5mm X 1.0mm
Rise Time-Max 11 Ns
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Surface Mount Yes
Symmetry-Max 55/45 %
Terminal Finish Matte Tin (Sn) - Annealed

Alternate Parts for LTC6908CS6-1#TRMPBF
