LTM4604IV#PBF Information
LTM4604IV#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM4604IV#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7519
|
Newark | Dc-Dc Converter, 0.8V-5V, 4A, Power Supply Applications:Ite & Industrial, Dc/Dc Converter Type:Lga-66, Micro Module, Output Power Max:-, Output Voltage Min:800Mv, Output Voltage Max:5V, Output Current Max:4A, Height:2.32Mm Rohs Compliant: Yes |Analog Devices LTM4604IV#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 230 |
|
$17.0600 / $18.8500 | Buy Now |
|
DISTI #
LTM4604IV#PBF-ND
|
DigiKey | DC DC CONVERTER 0.8-5V Min Qty: 1 Lead time: 10 Weeks Container: Tray |
678 In Stock |
|
$16.4039 / $19.0100 | Buy Now |
|
DISTI #
584-LTM4604IV#PBF
|
Mouser Electronics | Switching Voltage Regulators L V, 4A DC/DC Module Reg w/ Track RoHS: Compliant | 737 |
|
$15.5000 / $18.3000 | Buy Now |
|
|
Analog Devices Inc | L V, 4A DC/DC µModule Reg w/ Package Multiple: 170 | 1156 |
|
$11.0100 / $19.0100 | Buy Now |
|
DISTI #
35217006
|
Verical | Module DC-DC 1-OUT 0.8V to 5V 4A 66-Pin LGA Tray RoHS: Compliant Min Qty: 170 Package Multiple: 170 | Americas - 1020 |
|
$13.6178 | Buy Now |
|
DISTI #
90764460
|
Verical | Module DC-DC 1-OUT 0.8V to 5V 4A 66-Pin LGA Tray RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2523 | Americas - 100 |
|
$14.1900 | Buy Now |
|
DISTI #
35217006
|
Verical | Module DC-DC 1-OUT 0.8V to 5V 4A 66-Pin LGA Tray RoHS: Compliant Min Qty: 170 Package Multiple: 170 | Americas - 1020 |
|
$13.6178 | Buy Now |
|
DISTI #
90764460
|
Verical | Module DC-DC 1-OUT 0.8V to 5V 4A 66-Pin LGA Tray COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2523 | Americas - 100 |
|
$14.1900 | Buy Now |
|
DISTI #
LTM4604IVPBF
|
TME | PMIC, DC/DC converter, Uin: 2.375÷5.5VDC, Uout: 0.8÷5VDC, 8A, LGA66 Min Qty: 170 | 0 |
|
$17.6000 | RFQ |
|
DISTI #
LTM4604IV#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 170 | 0 |
|
$14.2200 / $15.6000 | Buy Now |
US Tariff Estimator: LTM4604IV#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTM4604IV#PBF
LTM4604IV#PBF CAD Models
-

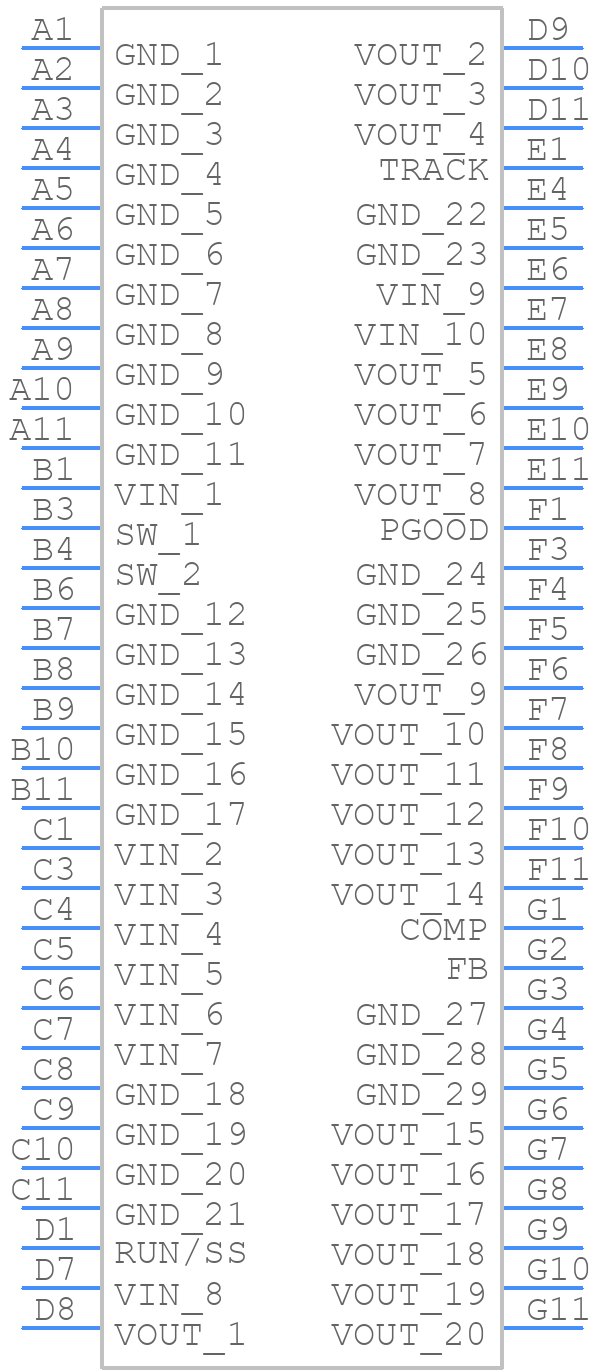

Part Symbol
-

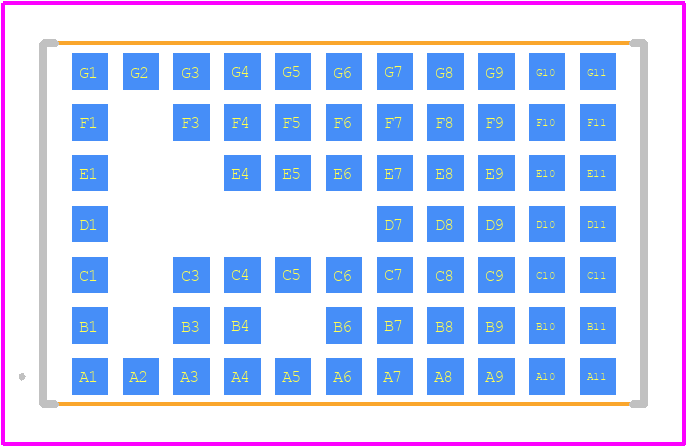

Footprint
-

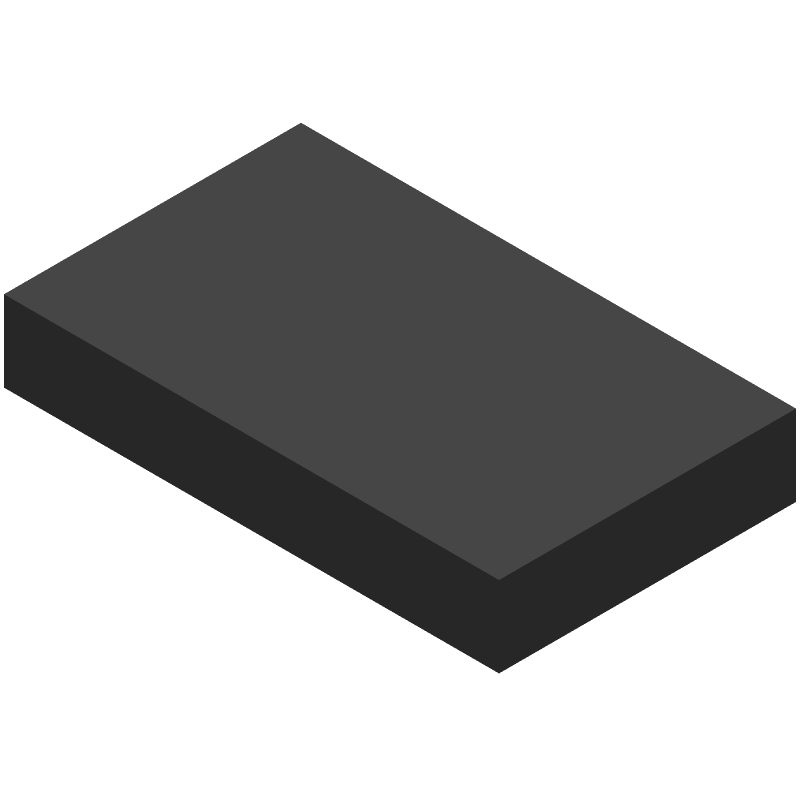

3D Model
