M41T83SQA6F by: STMicroelectronics

Real Time Clock, Non-Volatile, 0 Timer(s), CMOS

Part Details for M41T83SQA6F by STMicroelectronics

Results Overview of M41T83SQA6F by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

M41T83SQA6F Information

M41T83SQA6F by STMicroelectronics is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for M41T83SQA6F

Part # Distributor Description Stock Price Buy
DISTI # 497-6887-1-ND
DigiKey IC RTC CLK/CALENDAR I2C 16QFN Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 833
In Stock
  • 1 $3.8400
  • 10 $2.8990
  • 25 $2.6640
  • 100 $2.4051
  • 250 $2.2818
  • 500 $2.2074
  • 1,000 $2.1462
  • 2,000 $2.0958
  • 3,000 $2.0706
$2.0706 / $3.8400 Buy Now
DISTI # M41T83SQA6F
Avnet Americas RTC IC, YY-MM-DD-dd, HH:MM:SS:ts/hs, 24Hr, I2C, 3 V to 5.5 V, 16 Pins, QFN-EP - Tape and Reel (Alt: M41T83SQA6F) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel 26000
  • 1,000 $2.1247
  • 2,000 $2.0395
  • 4,000 $2.0292
  • 8,000 $2.0188
  • 16,000 $2.0084
$2.0084 / $2.1247 Buy Now
DISTI # M41T83SQA6F
Avnet Americas RTC IC, YY-MM-DD-dd, HH:MM:SS:ts/hs, 24Hr, I2C, 3 V to 5.5 V, 16 Pins, QFN-EP - Tape and Reel (Alt: M41T83SQA6F) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel 25000
  • 1,000 $2.1247
  • 2,000 $2.0395
  • 4,000 $2.0292
  • 8,000 $2.0188
  • 16,000 $2.0084
$2.0084 / $2.1247 Buy Now
DISTI # 511-M41T83SQA6F
Mouser Electronics Real Time Clock Serial I2C bus RTC RoHS: Compliant 2935
  • 1 $3.8400
  • 10 $2.9000
  • 25 $2.6700
  • 100 $2.4100
  • 250 $2.2900
  • 500 $2.2100
  • 1,000 $2.1900
$2.1900 / $3.8400 Buy Now
STMicroelectronics Serial I&#178, C bus real-time clock (RTC) with battery switchover COO: Singapore RoHS: Compliant Min Qty: 1 2935
  • 1 $3.7600
  • 10 $2.8400
  • 25 $2.6200
  • 100 $2.3600
  • 250 $2.2400
  • 500 $2.1700
$2.1700 / $3.7600 Buy Now
Future Electronics M41T83 Series 5.5 V Serial I2C Bus 32 kHz Real-Time Clock - QFN-16 (4x4) RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks Container: Reel 20000
Reel
  • 1,000 $1.7800
  • 2,000 $1.7600
$1.7600 / $1.7800 Buy Now
DISTI # M41T83SQA6F
TME IC: digital, timer/calendar, 3÷5.5VDC, VQFN16, -40÷85°C, reel,tape Min Qty: 1000 0
  • 1,000 $2.7600
$2.7600 RFQ
DISTI # SMC-M41T83SQA6F
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2412 Container: Tape & Reel 2000
RFQ
DISTI # M41T83SQA6F
Avnet Silica RTC IC YYMMDDdd HHMMSStshs 24Hr I2C 3 V to 55 V 16 Pins QFNEP (Alt: M41T83SQA6F) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Silica - 2000
Buy Now
Chip Stock SerialI²Cbusrealnulltimeclock(RTC)withbatteryswitchover,VFQFPN164x4x1.0,RoHS 8222
RFQ
DISTI # M41T83SQA6F
EBV Elektronik RTC IC YYMMDDdd HHMMSStshs 24Hr I2C 3 V to 55 V 16 Pins QFNEP (Alt: M41T83SQA6F) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days EBV - 0
Buy Now
LCSC I2C Built-in Yes QFN-16-EP(4x4) Real Time Clocks RoHS 1078
  • 1 $4.3841
  • 10 $3.7199
  • 30 $3.3270
  • 100 $2.9279
  • 500 $2.7445
  • 1,000 $2.6613
$2.6613 / $4.3841 Buy Now
Win Source Electronics Serial I2C bus RTC with battery switchover 19969
  • 13 $3.8487
  • 32 $3.1580
  • 50 $3.0593
  • 68 $2.9606
  • 88 $2.8619
  • 117 $2.5658
$2.5658 / $3.8487 Buy Now

US Tariff Estimator: M41T83SQA6F by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M41T83SQA6F
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M41T83SQA6F

M41T83SQA6F CAD Models

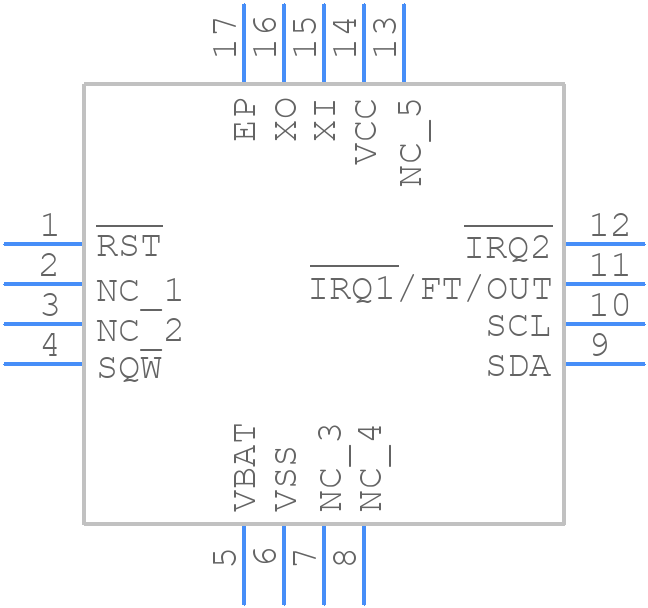

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M41T83SQA6F Part Data Attributes

Parametric Data
M41T83SQA6F STMicroelectronics
Buy Now Datasheet
Compare Parts:
M41T83SQA6F STMicroelectronics Real Time Clock, Non-Volatile, 0 Timer(s), CMOS
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code QFN
Package Description Hvqccn, Lcc16,.16sq,25
Pin Count 16
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 24 Weeks
Clock Frequency-Max 0.032 Mhz
External Data Bus Width
Information Access Method Serial(I2c), Serial, 2-Wire
Interrupt Capability Y
JESD-30 Code S-XQCC-N16
JESD-609 Code e4
Length 4 Mm
Moisture Sensitivity Level 1
Number of Bits 8
Number of Terminals 16
Number of Timers
On Chip Data RAM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material Unspecified
Package Code HVQCCN
Package Equivalence Code LCC16,.16SQ,25
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (words) 7
Seated Height-Max 1 Mm
Supply Current-Max 0.15 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form No Lead
Terminal Pitch 0.65 Mm
Terminal Position Quad
Time-Min 1/100 Second
Time@Peak Reflow Temperature-Max (s) 30
Volatile No
Width 4 Mm
uPs/uCs/Peripheral ICs Type Timer, Real Time Clock

Alternate Parts for M41T83SQA6F

This table gives cross-reference parts and alternative options found for M41T83SQA6F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M41T83SQA6F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DS1307Z+T&R Analog Devices Inc $2.3156 Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO8 M41T83SQA6F vs DS1307Z+T&R
DS1307ZN+ Analog Devices Inc $2.6447 Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO8 M41T83SQA6F vs DS1307ZN+
DS1307ZN+T&R Analog Devices Inc $3.2684 Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO8 M41T83SQA6F vs DS1307ZN+T&R
M41ST84YMQ6E STMicroelectronics Check for Price Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16 M41T83SQA6F vs M41ST84YMQ6E
M41ST84YMQ6F STMicroelectronics Check for Price Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16 M41T83SQA6F vs M41ST84YMQ6F
M41ST84YMQ6TR STMicroelectronics Check for Price Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16 M41T83SQA6F vs M41ST84YMQ6TR
M41T83SMY6E STMicroelectronics Check for Price Real Time Clock, Non-Volatile, 0 Timer(s), CMOS, PDSO18 M41T83SQA6F vs M41T83SMY6E
M41ST84YMQ6 STMicroelectronics Check for Price Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16 M41T83SQA6F vs M41ST84YMQ6
M41T83SQA6E STMicroelectronics Check for Price Real Time Clock, Non-Volatile, 0 Timer(s), CMOS M41T83SQA6F vs M41T83SQA6E
DS1307Z+T&R/C01 Maxim Integrated Products Check for Price Real Time Clock, 0 Timer(s), CMOS, PDSO8 M41T83SQA6F vs DS1307Z+T&R/C01
equivalents icon

M41T83SQA6F Related Parts

M41T83SQA6F Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the M41T83SQA6F is 1.8V to 5.5V.

  • To ensure the accuracy of the RTC, it is recommended to use a high-quality crystal oscillator with a frequency of 32.768 kHz, and to follow the recommended crystal load capacitance and layout guidelines.

  • The maximum frequency for the I2C interface of the M41T83SQA6F is 400 kHz.

  • The M41T83SQA6F can be reset to its default state by applying a low signal to the RST pin for at least 1 ms.

  • The VBAT pin is used to connect a battery or a supercapacitor to maintain the RTC and SRAM data during power failures or when the main power supply is turned off.
