M5254-000005-01KPG by: TE Connectivity

TRANSDUCER

Part Details for M5254-000005-01KPG by TE Connectivity

Results Overview of M5254-000005-01KPG by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M5254-000005-01KPG Information

M5254-000005-01KPG by TE Connectivity is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
CS-VHDCIMX200-000.5 Amphenol Cables on Demand Amphenol CS-VHDCIMX200-000.5 VHDCI SCSI (SCSI-5) LVD/SE Cable - .8mm 68-pin VHDCI SCSI Male to Male .5m
CS-USBAA00000-005 Amphenol Cables on Demand Amphenol CS-USBAA00000-005 Molded USB 2.0 Cable - Type A-A 5m
CS-USBAB00000-000.5 Amphenol Cables on Demand Amphenol CS-USBAB00000-000.5 Molded USB 2.0 Cable - Type A-B 0.5m

Price & Stock for M5254-000005-01KPG

Part # Distributor Description Stock Price Buy
DISTI # 05AK4000
Newark Industrial Pressure Sensors Press Xdcr |Te Connectivity M5254-000005-01KPG RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 16
  • 1 $168.1600
$168.1600 Buy Now
DISTI # 223-1614-ND
DigiKey TRANSDUCER Min Qty: 1 Lead time: 16 Weeks Container: Box 34
In Stock
  • 1 $144.3300
  • 5 $134.4240
  • 10 $130.7520
  • 40 $124.3140
  • 80 $121.4951
$121.4951 / $144.3300 Buy Now
DISTI # M5254-000005-01KPG
Avnet Americas Pressure Sensor 0Psi to 1000Psi Gauge - Bag (Alt: M5254-000005-01KPG) COO: Germany RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 16 Weeks, 0 Days Container: Bag 0
  • 40 $135.3571
  • 80 $128.0405
  • 160 $124.6710
  • 240 $121.4744
  • 320 $118.4375
$118.4375 / $135.3571 Buy Now
DISTI # 824-M5254-5-01KPG
Mouser Electronics Pressure Sensors - Industrial PRESS XDCR M5254-000005-01KPG RoHS: Not Compliant 0
  • 40 $135.3600
$135.3600 Order Now
DISTI # 71023710
RS SENSOR, PRESS XDCR M5254-000005-01KPG, PRESSURE, M5254-000005-01KPG Min Qty: 40 Package Multiple: 1 Container: Bulk 0
  • 40 $143.2300
  • 200 $137.5000
  • 400 $133.2000
$133.2000 / $143.2300 RFQ
Onlinecomponents.com PRESS XDCR M5254-000005-01KPG COO: Germany RoHS: Compliant 16 Partner Stock
  • 1 $338.6800
  • 5 $333.6000
  • 10 $328.5900
  • 20 $173.9600
  • 30 $122.4200
  • 40 $119.9700
$119.9700 / $338.6800 Buy Now
DISTI # M525400000501K-0
TME Converter: pressure, IP66, -40÷125°C, PIN: 3 Min Qty: 1 16
  • 1 $174.4330
  • 3 $154.2862
  • 5 $151.5803
  • 10 $148.8743
$148.8743 / $174.4330 Buy Now
DISTI # M525400000501KP
Richardson RFPD PRESSURE TRANSDUCERS AND TRANSMITTERS RoHS: Compliant Min Qty: 40 0
  • 40 $121.4700
  • 100 $121.4700
$121.4700 Buy Now
DISTI # 000000000005396549
Sager Industrial Pressure Sensors PRES XDCR IND 1KPSI SS GAUGE Min Qty: 40 0
  • 40 $126.3300
$126.3300 Buy Now
DISTI # M5254-000005-01KPG
Avnet Abacus Pressure Sensor 0Psi to 1000Psi Gauge (Alt: M5254-000005-01KPG) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics PRESS XDCR M5254-000005-01KPG COO: Germany RoHS: Compliant 16 Partner Stock
  • 1 $338.6800
  • 5 $333.6000
  • 10 $328.5900
  • 20 $173.9600
  • 30 $122.4200
  • 40 $119.9700
$119.9700 / $338.6800 Buy Now
Neutron USA Ind Pressure Sensor, 0-1kpsi G, Iout: 4-20mA, Vs 8-30V, 1/4-18 NPT, Packard Conn A, Accur: ±0.25%, -40~125°C 50
  • 1 $418.5500
$418.5500 Buy Now

Part Details for M5254-000005-01KPG

M5254-000005-01KPG CAD Models

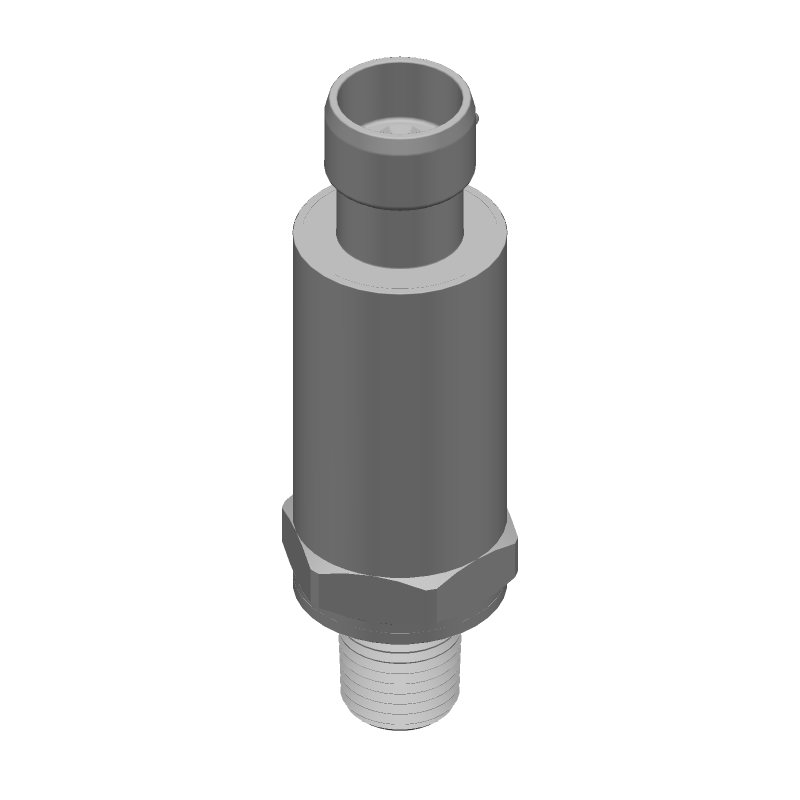

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M5254-000005-01KPG Part Data Attributes

Parametric Data
M5254-000005-01KPG TE Connectivity
Buy Now Datasheet
Compare Parts:
M5254-000005-01KPG TE Connectivity TRANSDUCER
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Package
Reach Compliance Code Not Compliant
Factory Lead Time 16 Weeks
Accuracy-Max (%) 0.25%
Additional Feature Ip 66, Reverse Polarity Protection, Short Circuit Protection
Body Height 81.7 Mm
Body Length or Diameter 24 Mm
Housing Stainless Steel
Mounting Feature Flush Mount
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Range 4-20ma
Output Type Current Output
Package Shape/Style Cylindrical
Port Type Threaded
Pressure Range-Max 999.63 Psi
Pressure Range-Min
Pressure Sensing Mode Gauge
Response Time 3000 µS
Sensors/Transducers Type Pressure Sensor,Strain Guage
Supply Voltage-Max 30 V
Supply Voltage-Min 9 V
Surface Mount No
Termination Type Connector
