M74VHC1GT126DF2G by:
onsemi

Single Non-Inverting Buffer, TTL Level, SC-88A (SC-70-5 / SOT-353), 3000-REEL

Part Details for M74VHC1GT126DF2G by onsemi

Results Overview of M74VHC1GT126DF2G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

M74VHC1GT126DF2G Information

M74VHC1GT126DF2G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for M74VHC1GT126DF2G

Part # Distributor Description Stock Price Buy
DISTI # 42Y0703
Newark Buffer, Quad, Tri-State, Sot-353-5, Logic Family/Base Number:74Vhc1G126, Logic Device Type:Buffer, Non Inverting, Logic Case Style:Sot-353, No. Of Pins:5Pins, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Logic Ic Family:74Vhc, Rohs Compliant: Yes |Onsemi M74VHC1GT126DF2G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.0120
  • 10 $0.0120
  • 25 $0.0120
  • 50 $0.0120
  • 100 $0.0120
  • 250 $0.0120
  • 500 $0.0120
  • 1,000 $0.0120
$0.0120 Buy Now
DISTI # 83H7594
Newark Ic, logic Gate, buffer, ahc/Vhc-Cmos, tssop,5Pin, plastic Rohs Compliant: Yes |Onsemi M74VHC1GT126DF2G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
Bristol Electronics   1883
RFQ
Chip 1 Exchange INSTOCK 3517
RFQ
Chip Stock 8mA13V~5.5V8mA1SC-88ABuffer/Driver/TransceiverROHS 363500
RFQ
Win Source Electronics IC BUFF CMOS LVL/SFTR N-I SOT353 351000
  • 305 $0.1920
  • 735 $0.1575
  • 1,135 $0.1527
  • 1,565 $0.1478
  • 2,025 $0.1428
  • 2,710 $0.1280
$0.1280 / $0.1920 Buy Now
Wuhan P&S Noninverting Buffer / CMOS Logic Level Shifter Min Qty: 1 2706
  • 1 $0.2900
  • 100 $0.1900
  • 500 $0.1600
  • 1,000 $0.1400
$0.1400 / $0.2900 Buy Now

US Tariff Estimator: M74VHC1GT126DF2G by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M74VHC1GT126DF2G
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M74VHC1GT126DF2G

M74VHC1GT126DF2G CAD Models

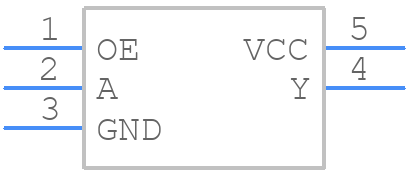

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M74VHC1GT126DF2G Part Data Attributes

Parametric Data
M74VHC1GT126DF2G onsemi
Buy Now Datasheet
Compare Parts:
M74VHC1GT126DF2G onsemi Single Non-Inverting Buffer, TTL Level, SC-88A (SC-70-5 / SOT-353), 3000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Part Package Code SC-88A (SC-70-5 / SOT-353)
Package Description Sc-88a, 5 Pin
Pin Count 5
Manufacturer Package Code 419A-02
Reach Compliance Code Compliant
HTS Code 8542.39.00.01
Factory Lead Time 72 Weeks
Control Type Enable High
Count Direction Unidirectional
Family Ahc/Vhc/H/U/V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Bus Driver
Max I(ol) 0.008 A
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 1
Number of Ports 2
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Characteristics 3-State
Output Polarity True
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP5/6,.08
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 50 Ma
Propagation Delay (tpd) 16 Ns
Qualification Status Not Qualified
Seated Height-Max 1.1 Mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Military
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 40
Width 1.25 Mm

Alternate Parts for M74VHC1GT126DF2G

This table gives cross-reference parts and alternative options found for M74VHC1GT126DF2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M74VHC1GT126DF2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M74VHC1GT126DF1G Rochester Electronics LLC Check for Price AHC/VHC/H/U/V SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, ROHS COMPLIANT, SC-70, SOT-353, SC-88A, 5 PIN M74VHC1GT126DF2G vs M74VHC1GT126DF1G
M74VHC1GT126DF2G Rochester Electronics LLC Check for Price AHC/VHC/H/U/V SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, ROHS COMPLIANT, SC-70, SOT-353, SC-88A, 5 PIN M74VHC1GT126DF2G vs M74VHC1GT126DF2G
Part Number Manufacturer Composite Price Description Compare
MC74VHC1GT126DF4 onsemi Check for Price AHC/VHC/H/U/V SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DF4
MC74VHC1GT126DF2G onsemi Check for Price AHC/VHC SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DF2G
NLVVHC1GT126DF2G onsemi Check for Price Single Non-Inverting Buffer, TTL Level, SC-88A (SC-70-5 / SOT-353), 3000-REEL, Automotive Qualified M74VHC1GT126DF2G vs NLVVHC1GT126DF2G
MC74VHC1GT126DF2 onsemi Check for Price AHC/VHC SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DF2
MC74VHC1GT126DFR Motorola Mobility LLC Check for Price AHC/VHC SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DFR
MC74VHC1GT126DFT Motorola Semiconductor Products Check for Price Bus Driver, AHC/VHC Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DFT
MC74VHC1GT126DFT Motorola Mobility LLC Check for Price AHC/VHC SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN M74VHC1GT126DF2G vs MC74VHC1GT126DFT
M74VHC1GT126DF1G onsemi Check for Price Single Non-Inverting Buffer, TTL Level, SC-88A (SC-70-5 / SOT-353), 3000-REEL M74VHC1GT126DF2G vs M74VHC1GT126DF1G
equivalents icon

M74VHC1GT126DF2G Related Parts

M74VHC1GT126DF2G Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the M74VHC1GT126DF2G is 4.5V to 5.5V.

  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.

  • The maximum frequency of operation for the M74VHC1GT126DF2G is 200 MHz.

  • To ensure proper operation, power up the VCC pin before the input signals, and power down the VCC pin after the input signals.

  • The maximum current rating for the M74VHC1GT126DF2G is 20mA per output pin.
