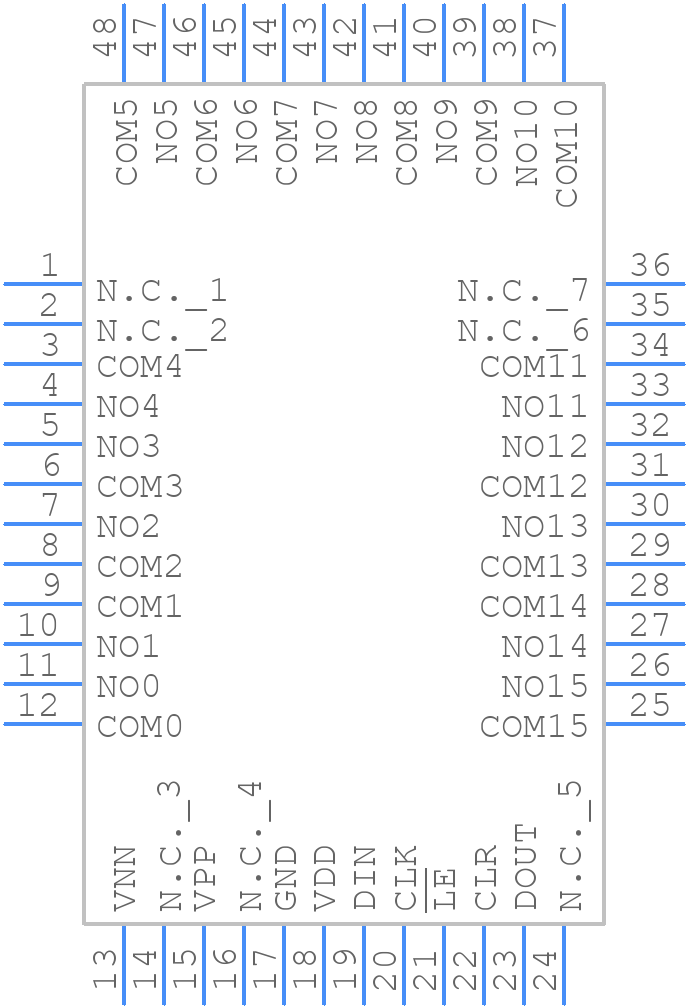

Part Symbol
-

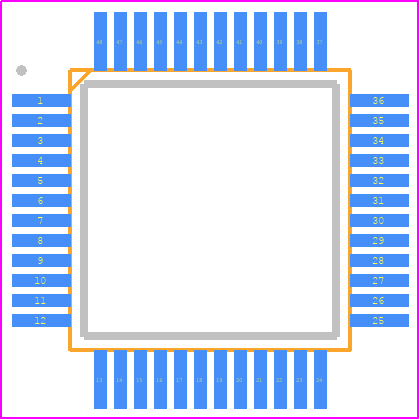

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX14803CCM+CP3 by Analog Devices Inc
Overview of MAX14803CCM+CP3 by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for MAX14803CCM+CP3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX14803CCM+CP3
|
Mouser Electronics | Analog Switch ICs Low-Charge-Injection, 16-Channel, High-V RoHS: Compliant | 0 |
|
$42.4200 | Order Now |
|
|
Analog Devices Inc | Low-Charge-Injection, 16-Chann Min Qty: 1 Package Multiple: 1 | 0 |
|
$37.6400 / $46.2900 | Buy Now |
Part Details for MAX14803CCM+CP3
MAX14803CCM+CP3 CAD Models
MAX14803CCM+CP3 Part Data Attributes
|
|
MAX14803CCM+CP3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX14803CCM+CP3
Analog Devices Inc
Low-Charge-Injection, 16-Channel, High-Voltage Analog Switches, 48-LQFP-7X7X1.4, 48 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 48-LQFP-7X7X1.4 | |
| Pin Count | 48 | |
| Manufacturer Package Code | 48-LQFP-7X7X1.4 | |
| Date Of Intro | 2009-05-08 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | Matte Tin (Sn) | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MAX14803CCM+CP3
This table gives cross-reference parts and alternative options found for MAX14803CCM+CP3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX14803CCM+CP3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| MAX14803CCM+ | SPST, 1 Func, 1 Channel, BICMOS, PQFP48, 7 X 7 MM, ROHS COMPLIANT, TQFP-48 | Maxim Integrated Products | MAX14803CCM+CP3 vs MAX14803CCM+ |
| MAX14803CCM+CP3 | SPST, | Maxim Integrated Products | MAX14803CCM+CP3 vs MAX14803CCM+CP3 |
| MAX14803CCM+TCP3 | SPST, | Maxim Integrated Products | MAX14803CCM+CP3 vs MAX14803CCM+TCP3 |
