MAX16910CASA8/V+ Information
MAX16910CASA8/V+ by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX16910CASA8/V+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX16910CASA8/V
|
Mouser Electronics | LDO Voltage Regulators 200mA, Automotive, Ultra-Low Quiescent C RoHS: Compliant | 11070 |
|
$2.1800 / $3.6900 | Buy Now |
|
|
Analog Devices Inc | 200mA, Automotive, Ultra-Low Q Package Multiple: 1 | 6083 |
|
$1.7500 / $3.6900 | Buy Now |
US Tariff Estimator: MAX16910CASA8/V+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX16910CASA8/V+
MAX16910CASA8/V+ CAD Models
-

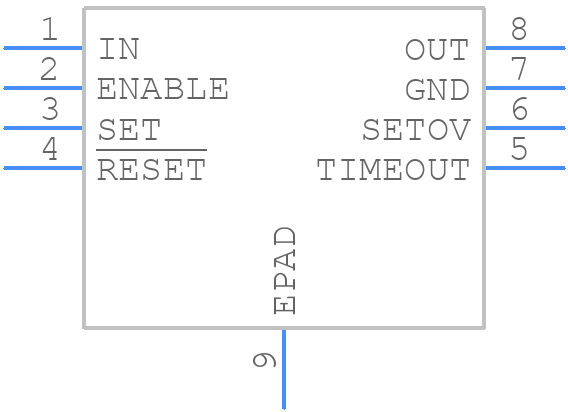

Part Symbol
-

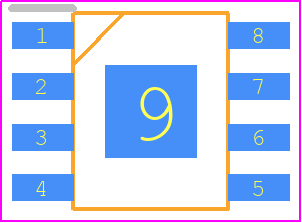

Footprint
-
