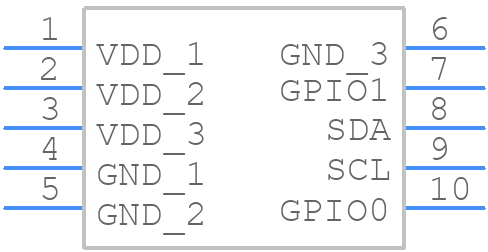

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX30208CLB+ by Analog Devices Inc
Results Overview of MAX30208CLB+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX30208CLB+ Information
MAX30208CLB+ by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MAX30208CLB+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | 0.1oC,Temperature Sensor Package Multiple: 1 | 1134 |
|
Buy Now | |
|
|
Chip Stock | MAXIMINTEGRATEDPRODUCTS-MAX30208CLB+-TemperatureSensorIC,Digital,0°C,70°C,10Pins | 5500 |
|
RFQ |
Part Details for MAX30208CLB+
MAX30208CLB+ CAD Models
MAX30208CLB+ Part Data Attributes
|
|
MAX30208CLB+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX30208CLB+
Analog Devices Inc
Serial Switch/Digital Sensor, 16 Bit(s), 0.4V Min, 0.15Cel, Square, 10 Pin, Surface Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 10-LGA-2X2X0.75 | |
| Package Description | Lga-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 10-LGA-2X2X0.75 | |
| Reach Compliance Code | Compliant | |
| Date Of Intro | 2019-06-18 | |
| Accuracy-Max (Cel) | 0.15 Cel | |
| Body Breadth | 2 Mm | |
| Body Height | 0.75 Mm | |
| Body Length or Diameter | 2 Mm | |
| Housing | Plastic | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Bits | 16 | |
| Number of Terminals | 10 | |
| Operating Current-Max | 1 Ma | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Interface Type | 2-Wire Interface | |
| Output Voltage-Min | 0.4 V | |
| Package Shape/Style | Square | |
| Sensors/Transducers Type | Temperature Sensor,Switch/Digital Output,Serial | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.7 V | |
| Surface Mount | Yes | |
| Terminal Finish | Gold/Nickel (Au/Ni) | |
| Termination Type | Solder |
