MAX4968AECM+ Information
MAX4968AECM+ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX4968AECM+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y4630
|
Newark | Analogue Switch, 16-Ch, Lqfp-48, Ic Function:Analog Switch, Power Supply Type:Single Supply, Supply Voltage Range:2.375V To 5.5V, Ic Case/Package:Lqfp, No. Of Pins:48Pins, No. Of Channels:16Channels, On Resistance Typ:18Ohm Rohs Compliant: Yes |Analog Devices MAX4968AECM+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
700-MAX4968AECM+
|
Mouser Electronics | Analog Switch ICs 16 channel high voltage linear switch wi RoHS: Compliant | 249 |
|
$63.6000 / $76.6700 | Buy Now |
|
|
Analog Devices Inc | 16 channel high voltage linear Package Multiple: 1 | 2314 |
|
$50.8800 / $80.4400 | Buy Now |
|
|
Chip Stock | Industry', sFirstHigh-Voltage,Latchup-FreeSwitchesKeepRONFlatOverEntireSupplyRange | 2900 |
|
RFQ |
US Tariff Estimator: MAX4968AECM+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX4968AECM+
MAX4968AECM+ CAD Models
-

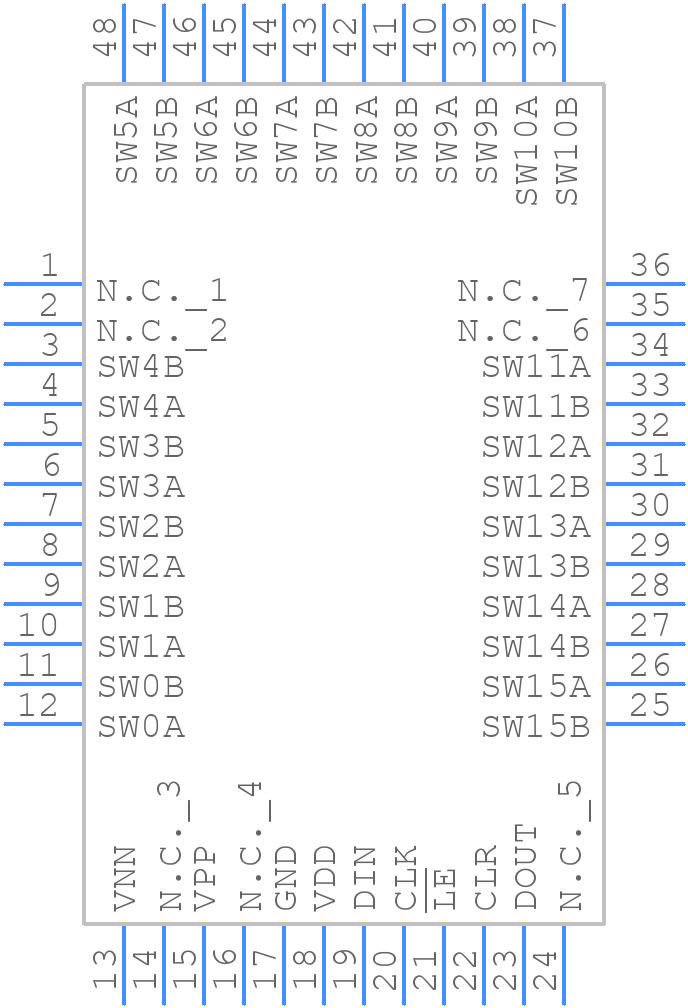

Part Symbol
-

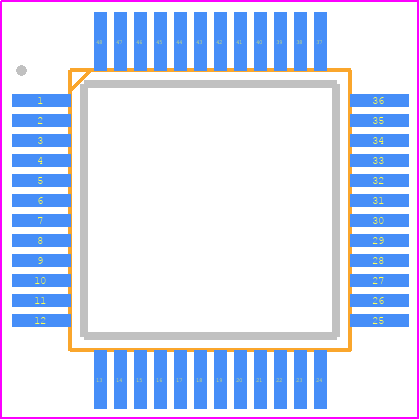

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX4968AECM+ Part Data Attributes
|
|
MAX4968AECM+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4968AECM+
Analog Devices Inc
SPST, 1 Func, 1 Channel, BICMOS, PQFP48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 48-LQFP-7X7X1.4 | |
| Package Description | Lfqfp, | |
| Pin Count | 48 | |
| Manufacturer Package Code | 48-LQFP-7X7X1.4 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2012-06-29 | |
| Analog IC - Other Type | Spst | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | No | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Off-state Isolation-Nom | 76 Db | |
| On-state Resistance Match-Nom | 1.02 Ω | |
| On-state Resistance-Max (Ron) | 34 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Separate Output | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.6 Mm | |
| Supply Current-Max (Isup) | 0.2 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.37 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Switch-off Time-Max | 3500 Ns | |
| Switch-on Time-Max | 5000 Ns | |
| Switching | Break-Before-Make | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm |
