MAX708CSA+ Information
MAX708CSA+ by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX708CSA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX708CSA
|
Mouser Electronics | Supervisory Circuits Low-Cost, P Supervisory Circuits RoHS: Compliant | 236 |
|
$5.2500 / $8.8600 | Buy Now |
|
|
Analog Devices Inc | Low-Cost, µP Supervisory Circu Package Multiple: 1 | 9843 |
|
$5.3058 / $8.8600 | Buy Now |
|
DISTI #
MAX708CSA+
|
TME | IC: supervisor circuit, power on reset monitor (PoR), push-pull Min Qty: 1 | 6 |
|
$5.1300 / $8.1700 | Buy Now |
US Tariff Estimator: MAX708CSA+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX708CSA+
MAX708CSA+ CAD Models
-

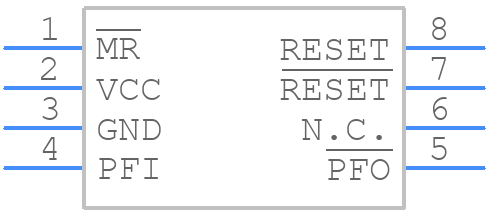

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX708CSA+ Part Data Attributes
|
|
MAX708CSA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX708CSA+
Analog Devices Inc
Voltage Supervisor/Reset IC, Fixed, 1 Channel, +4.4V, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1999-05-26 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Voltage Supervisor/Reset Ic | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 0.35 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +4.4v | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
MAX708CSA+ Frequently Asked Questions (FAQ)
-
The MAX708CSA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the battery, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and interference.
-
The reset pin (RST) should be tied to a pull-up resistor and a capacitor to ensure a clean reset signal during power-up and power-down sequences. The recommended values are a 1kΩ pull-up resistor and a 10nF capacitor.
-
The recommended input voltage range for the MAX708CSA+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
-
To ensure the accuracy of the battery voltage monitoring function, it is recommended to use a high-precision voltage reference, such as the MAX6045, and to calibrate the device during manufacturing or production testing.
-
The maximum current that can be drawn from the VCC pin is 10mA. Exceeding this limit may affect the device's performance and reliability.
