MBR1660 Information
MBR1660 by SPC Multicomp is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR1660
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2675113
|
Farnell | SCHOTTKY RECTIFIER, 16A, 60V, TO-220AC RoHS: Compliant Min Qty: 1 Lead time: 26 Weeks, 1 Days Container: Each | 0 |
|
$0.2799 / $0.8129 | Buy Now |
|
DISTI #
1625128
|
Farnell | DIODE, SCHOTTKY, 16A, 60V RoHS: Compliant Min Qty: 1 Lead time: 20 Weeks, 2 Days Container: Each | 0 |
|
$0.3027 / $0.9121 | Buy Now |
US Tariff Estimator: MBR1660 by SPC Multicomp
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MBR1660
MBR1660 CAD Models
-
Part Symbol
-

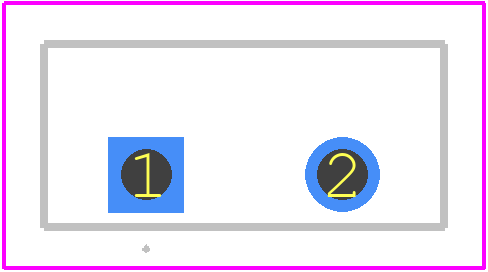

Footprint
-

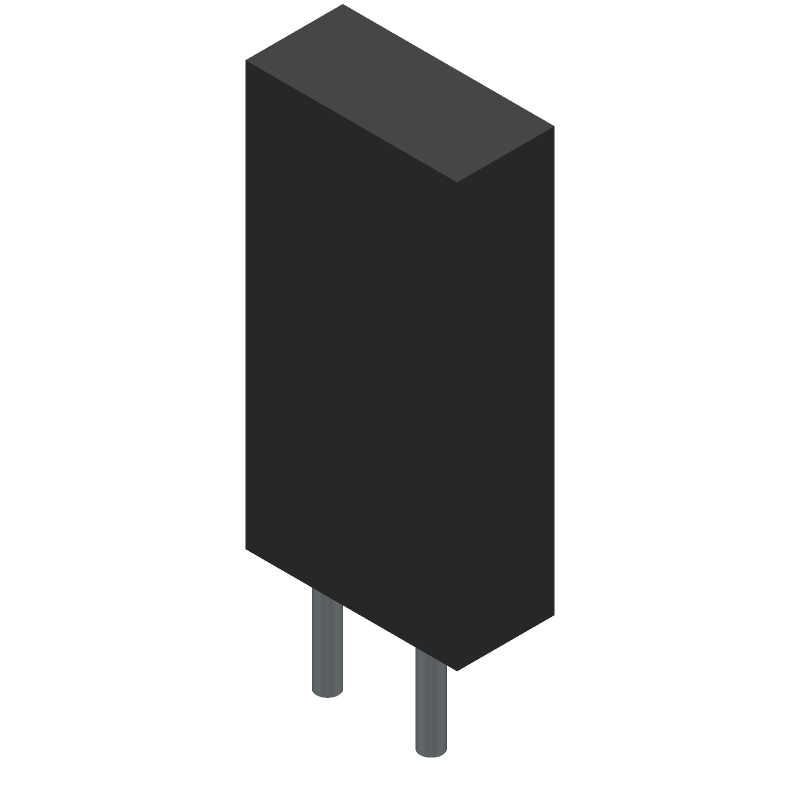

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MBR1660 Part Data Attributes
|
|
MBR1660
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MBR1660
SPC Multicomp
Rectifier Diode, Schottky, 1 Phase, 1 Element, 16A, 60V V(RRM), Silicon, TO-220AC,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Additional Feature | Free Wheeling Diode, Low Power Loss | |
| Application | Efficiency | |
| Case Connection | Cathode | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 0.75 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 16 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Reference Standard | Ul Recognized | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 500 µA | |
| Reverse Test Voltage | 60 V | |
| Surface Mount | No | |
| Technology | Schottky | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single |
Alternate Parts for MBR1660
This table gives cross-reference parts and alternative options found for MBR1660. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR1660, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR1660 | Advanced Power Technology | Check for Price | Rectifier Diode, Schottky, 1 Element, 16A, 60V V(RRM) | MBR1660 vs MBR1660 |
| MBR1660 | Galaxy Semi-Conductor Co Ltd | Check for Price | Rectifier Diode, | MBR1660 vs MBR1660 |
| MBR1660 | Yangzhou Yangjie Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 16A, 60V V(RRM), TO-220AC | MBR1660 vs MBR1660 |
| MBR1660 | New Jersey Semiconductor Products Inc | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 16A, 60V V(RRM), Silicon | MBR1660 vs MBR1660 |
| MBR1660 | Shanghai Lunsure Electronic Technology Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 16A, 60V V(RRM), Silicon, TO-220AC | MBR1660 vs MBR1660 |
| MBR1660 | Galaxy Microelectronics | Check for Price | Schottky Barrier Rectifier; Configuration: Single; VRRM Max (V): 60V; IAV Max (A): 16A; VFM Max (V): 0.8V; @ IF (A): 16A; IFSM Max (A): 150A; IR Max (uA): 100uA; @VR (V): 60V; Package: TO-220AC | MBR1660 vs MBR1660 |
| MBR1660 | Suzhou Good-Ark Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 16A, 60V V(RRM) | MBR1660 vs MBR1660 |
MBR1660 Frequently Asked Questions (FAQ)
-
The recommended PCB layout involves placing the MBR1660 near the power input, using a solid ground plane, and keeping the high-current paths short and wide. Thermal management involves providing adequate heat sinking, such as a thermal pad or heat sink, and ensuring good airflow around the device.
-
To ensure reliable operation, follow the recommended operating conditions, provide adequate heat sinking, and ensure good airflow. In high-temperature environments, consider using a heat sink or thermal pad, and ensure the device is operated within its specified temperature range.
-
Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a reflow oven or hot air soldering technique to ensure even heating and minimize thermal stress. Avoid applying excessive force or pressure during assembly.
-
Use a thermal imaging camera or thermometer to identify hotspots. Check the input voltage, current, and output voltage to ensure they are within the specified ranges. Verify the PCB layout and thermal management are correct. Consult the datasheet and application notes for troubleshooting guidelines.
-
Yes, follow good EMI/EMC design practices, such as using a solid ground plane, keeping high-frequency traces short, and using shielding or filtering components as needed. Place the MBR1660 away from sensitive analog circuits and ensure good decoupling of the input and output stages.
