MC22FA102J-TF Information
MC22FA102J-TF by Cornell Dubilier Electronics Inc is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MC22FA102J-TF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66K3367
|
Newark | Rf/Microwave Capacitor, 1000Pf, 100V, Full Reel, Capacitance:1000Pf, Voltage Rating:100V, Product Range:Mc Series, Capacitance Tolerance:± 5%, Operating Temperature Max:125°C, Capacitor Case Style:2220 [5650 Metric] Rohs Compliant: Yes |Cornell Dubilier MC22FA102J-TF RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
Buy Now | |
|
DISTI #
338-MC22FA102J-TFCT-ND
|
DigiKey | CAP MICA 1000PF 5% 100V 2220 Min Qty: 1 Lead time: 23 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
287 In Stock |
|
$2.9474 / $5.9200 | Buy Now |
|
DISTI #
598-MC22FA102J-TF
|
Mouser Electronics | Mica Capacitors 1nF 100V 5% RoHS: Compliant | 1008 |
|
$3.1200 / $5.7800 | Buy Now |
|
|
Onlinecomponents.com | Mica Multilayer RF Capacitors - SMD - 1000pf (+/-) 5% - 100VDC - 25ppm/°C - 2220 - RoHS - Tape&Reel COO: Japan RoHS: Compliant | 0 |
|
$2.7100 / $5.6700 | Buy Now |
|
DISTI #
MC22FA102J-TF
|
Richardson RFPD | HI-Q MICA CAPACITORS Min Qty: 1000 | 0 |
|
$2.8700 | Buy Now |
US Tariff Estimator: MC22FA102J-TF by Cornell Dubilier Electronics Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC22FA102J-TF
MC22FA102J-TF CAD Models
-
Part Symbol
-
Footprint
-

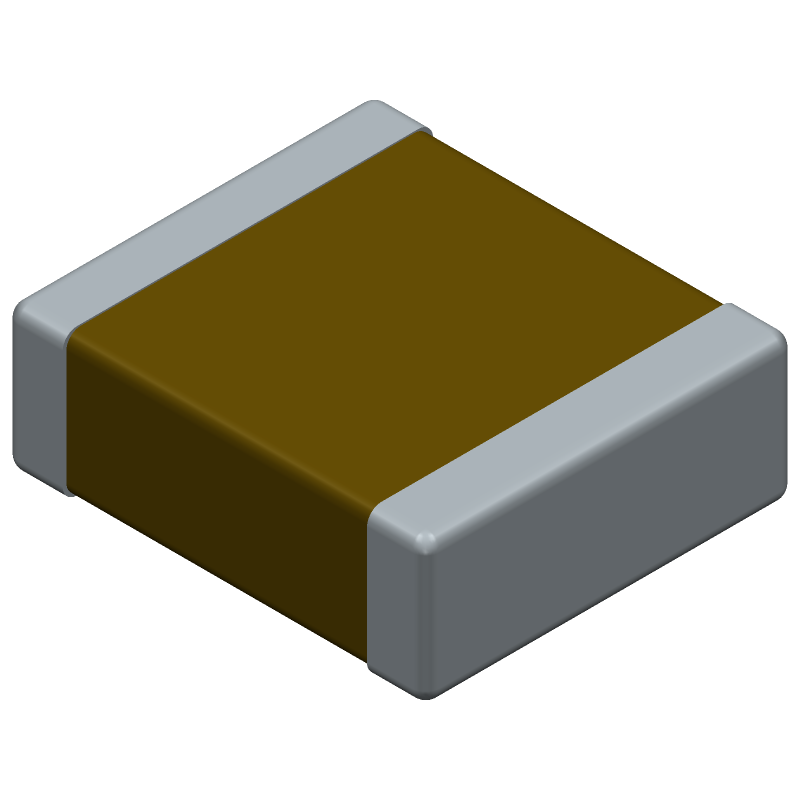

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC22FA102J-TF Part Data Attributes
|
|
MC22FA102J-TF
Cornell Dubilier Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
MC22FA102J-TF
Cornell Dubilier Electronics Inc
Mica Capacitor, Multilayer, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.001uF, Surface Mount, 2220, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.29.00.20 | |
| Capacitance | 0.001 µF | |
| Capacitor Type | Mica Capacitor | |
| Dielectric Material | Mica | |
| Height | 2 Mm | |
| JESD-609 Code | e3 | |
| Length | 5.7 Mm | |
| Mounting Feature | Surface Mount | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Packing Method | Tr, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 100 V | |
| Size Code | 2220 | |
| Surface Mount | Yes | |
| Temperature Characteristics Code | F | |
| Temperature Coefficient | 25+/-25ppm/Cel Ppm/°C | |
| Terminal Finish | Tin | |
| Terminal Shape | Wraparound | |
| Width | 5 Mm |
Alternate Parts for MC22FA102J-TF
This table gives cross-reference parts and alternative options found for MC22FA102J-TF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC22FA102J-TF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC22FA102J-F | Cornell Dubilier Electronics Inc | Check for Price | Mica Capacitor, Multilayer, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.001uF, Surface Mount, 2220, ROHS COMPLIANT | MC22FA102J-TF vs MC22FA102J-F |
| MCN22FA102J | Cornell Dubilier Electronics Inc | Check for Price | Mica Capacitor, Multilayer, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.001uF, Surface Mount, 2220, CHIP, 2220 | MC22FA102J-TF vs MCN22FA102J |
