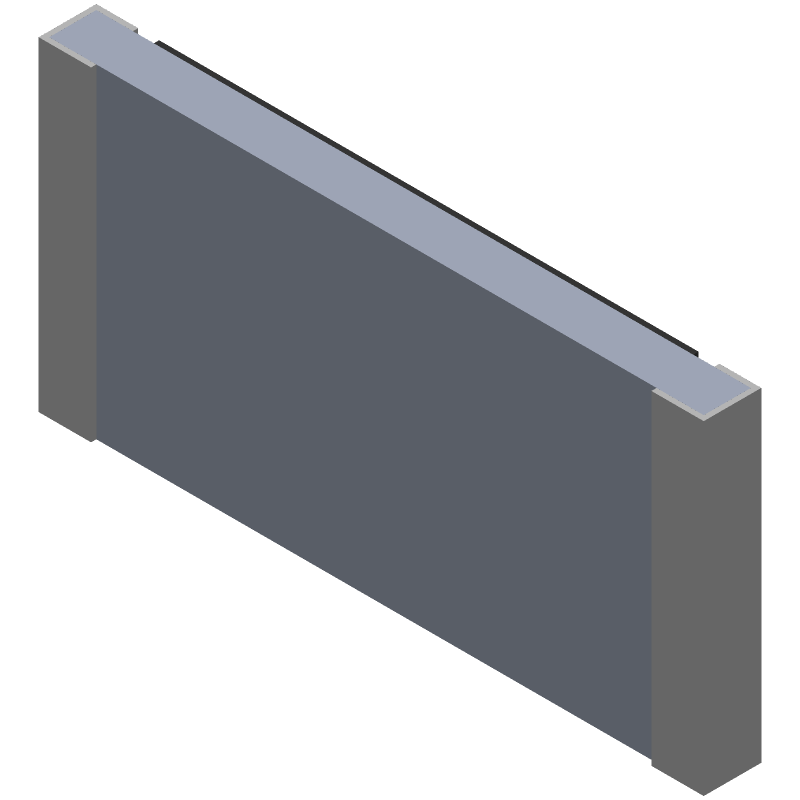

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCPWR12FTEA1103 by SPC Multicomp
Results Overview of MCPWR12FTEA1103 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCPWR12FTEA1103 Information
MCPWR12FTEA1103 by SPC Multicomp is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCPWR12FTEA1103
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43T5877
|
Newark | Surface Mount Chip Resistor, Thick Film, Mcpwr Series, 110 Kohm, 1.5 W, 1%, 500 V Rohs Compliant: Yes |Multicomp Pro MCPWR12FTEA1103 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6937 |
|
$0.1360 / $0.2470 | Buy Now |
Part Details for MCPWR12FTEA1103
MCPWR12FTEA1103 CAD Models
MCPWR12FTEA1103 Part Data Attributes
|
|
MCPWR12FTEA1103
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCPWR12FTEA1103
SPC Multicomp
Fixed Resistor, Metal Glaze/thick Film, 1.5W, 110000ohm, 500V, 1% +/-Tol, 100ppm/Cel, 2512
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Construction | Chip | |
| JESD-609 Code | e3 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 Mm | |
| Package Length | 6.35 Mm | |
| Package Style | Smt | |
| Package Width | 3.1 Mm | |
| Packing Method | Tape, Embossed | |
| Rated Power Dissipation (P) | 1.5 W | |
| Resistance | 110000 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 2512 | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 100 Ppm/°C | |
| Terminal Finish | Tin (Sn) - With Nickel (Ni) Barrier | |
| Tolerance | 1% | |
| Working Voltage | 500 V |
